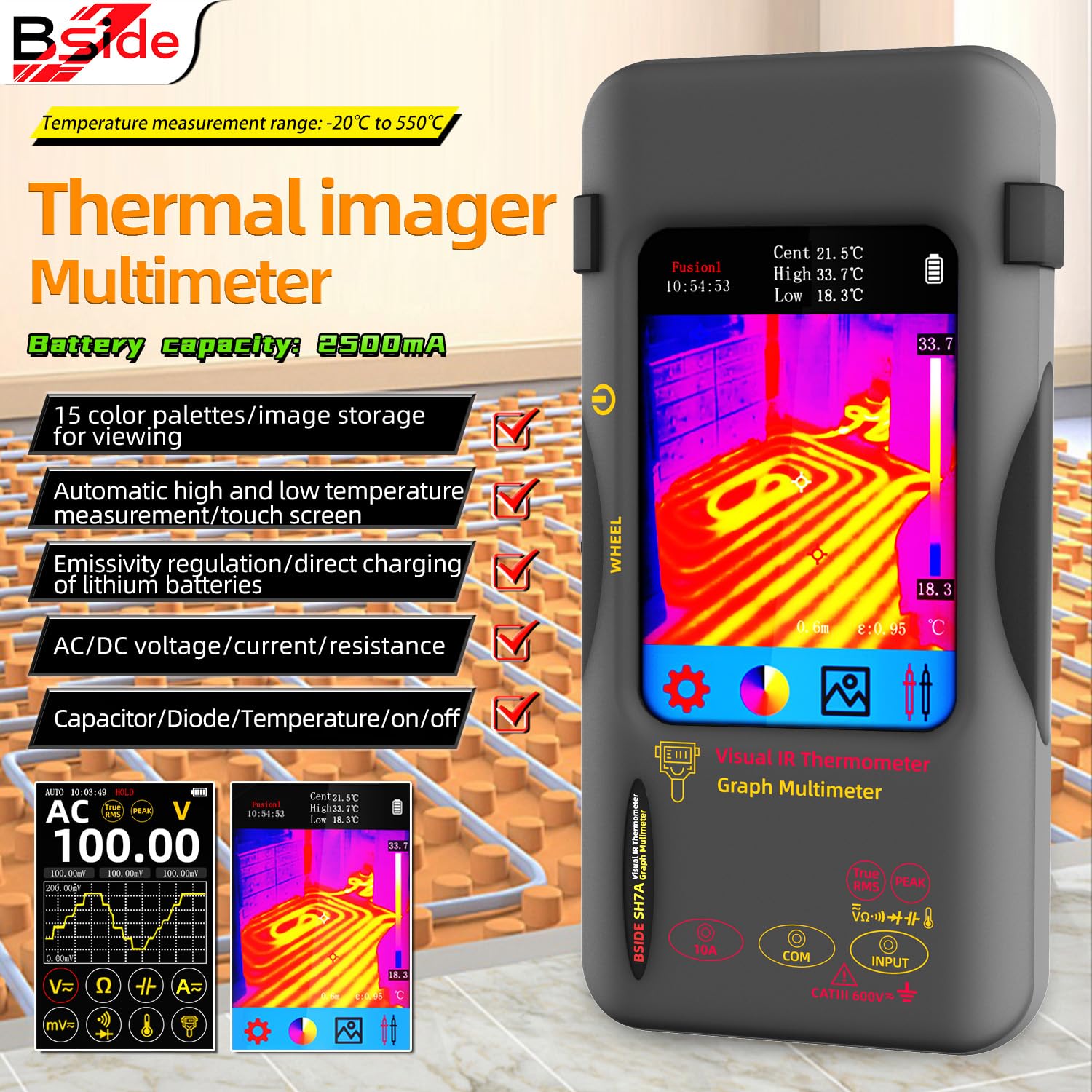

BSIDE SH7A Thermal Imaging Camera Multimeter with Macro Lens 320×320 Resolution, 20000 Words Multimeter Function 3.98'' Touchscreen Infrared Thermal Camera 15 Thermal Palettes Auto-Ranging Tester

Features: 2-in-1 thermal imaging camera multimeter: 320×320 Infrared Thermal Camera 20000 Count Digital Multimeter 3.98-inch full viewing angle visual touch screen Display the high/low/center temperature Temperature alarm/warning thresholds can be set, font color alarms 7 language settings: Chinese, English, Japanese, German, Spanish, French, Italian (Russian can be added) Adjustable emissivity, adjustable backlight, adjustable time and date Adjustable auto shut-off time, adjustable temperature measurement unit ℉/℃/K With 15 Thermal Palettes, 2500mAh rechargeable Li-ion battery Can be used with a flexible current coil to test 2000A AC current. Thermal imaging camera and multimeter interface can be screenshotted and data can be transferred to a PC for analysis Specification: Thermal Camera Mode: Thermal Imaging Camera: 320 x 320 resolution Sensor Type: Vanadium Oxide (VOx) Microbolometer Response Band: 8-14pm Noise Equivalent Temperature Difference (NETD): ≤60mK(@25℃,F#1.0) Spatial resolution (IFOV): 8.89mrad Frame rate: 25Hz Imaging lens focal length: 1.35mm Temperature measurement resolution: 0.1℃ Temperature measurement focal length: 0.3m-3m adjustable Temperature range: -20℃~550℃(-4°~1022°F)/0.1℃. Temperature measurement unit: degrees Celsius, degrees Fahrenheit, Kelvin 15 kinds of color palettes: white heat, black heat, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, sepia, color 1, color 2, ice and fire, rain, green heat, red heat, dark blue Screen Display resolution: 480*320 Image storage: 30000 pictures Multimeter mode: DC Voltage (V): 2.0000V/0.0001V/±(0.05%+3) 20.000V/0.001V/±(0.05%+3) 200.00V/0.01V/±(0.5%+3) 1000V/0.1V/±(0.5%+3) DC Voltage (mV): 20.000mV/0.001mV/±(0.1%+3) 200.00mV/0.01mV/±(0.1%+3) AC Voltage (V): 2.0000V/0.0001V/±(0.5%+3) 20.000V/0.001V/±(0.5%+3) 200.00V/0.01V/±(0.5%+3) 750V/0.1V/±(0.5%+3) AC Voltage (mV): 20.000mV/0.001mV/±(0.5%+3) 200.00mV/0.01mV/±(0.5%+3) DC Current(A): 2.0000A/0.0001A/±(0.8%+3) 10.000A/0.001/±(0.8%+3) AC Current(A): 2.0000A/0.0001A/±(0.8%+3) 10.000A/0.001/±(0.8%+3) Resistances: 200.00Ω/0.01Ω/±(0.5%+3) 2.0000kΩ/0.0001kΩ/±(0.2%+3) 20.000kΩ/0.001kΩ/±(0.2%+3) 200.00kΩ/0.01kΩ/±(0.2%+3) 2.0000MΩ/0.0001MΩ/±(1.0%+3) 20.000MΩ/0.001MΩ/±(1.0%+3) 200.00MΩ/0.01MΩ/±(5.0%+5) Capacitors: 999.99nF/0.01nF/±(5.0%+5) 9.999uF/0.001μF/±(2.0%+5) 999.99uF/0.01μF/±(2.0%+5) 99.999mF/0.001mF/±(5.0%+10) Flexible Current Clamp AC Current: 200.0A/0.1A 2000A/1A Temperature: (-20~1300)℃/1℃/±(2.0%+5) (-4~2372)℉/1℉/±(2.0%+5) Diodes: Yes Continuity: Yes Size: 169*81*26.8mm Weight: 270.7g Package content: 1×Thermal imaging camera multimeter 1×thermocouples 1×Test Leads 1×Storage bag 1 x Charging Cable 1 x Instruction manual

• 2-in-1 Thermal Imager Multimeter: 320 x 320 resolution thermal imaging and a 20000 word multimeter in one device The SH7A thermal imaging camera with multimeter provides more comprehensive troubleshooting and analysis and is ideal for use in the field in electrical, mechanical, construction, automotive, industrial equipment, and many other areas.
• 3.98'' full-viewing angle touch screen: This infrared camera multimeter comes with a 3.98'' full-viewing angle visual touch screen with 320*320 screen resolution, which can be more clear real-time view of the data and easy to use.
• 320×320 Thermal Camera: Thermal camera has a 3.98'' screen and 25Hz frame rate to help you view and take photos in real time with greater clarity and smoothness.50mk thermal sensitivity for temperature difference visualization to help you find problems and make reliable diagnoses.15 color palettes Highly accurate measurements from -20°C to 550°C (-4°F to 1022°F). High/low temperature alarm.

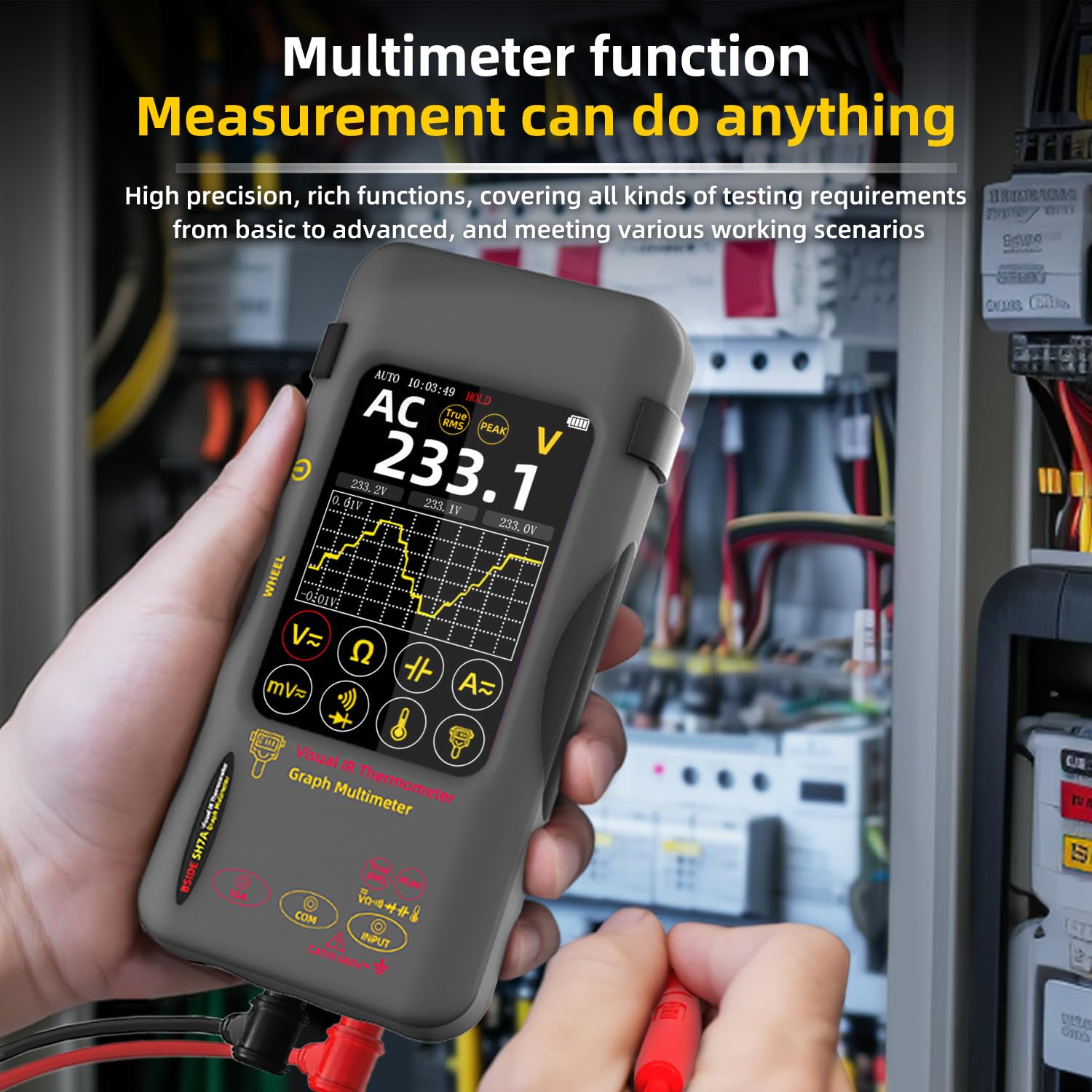

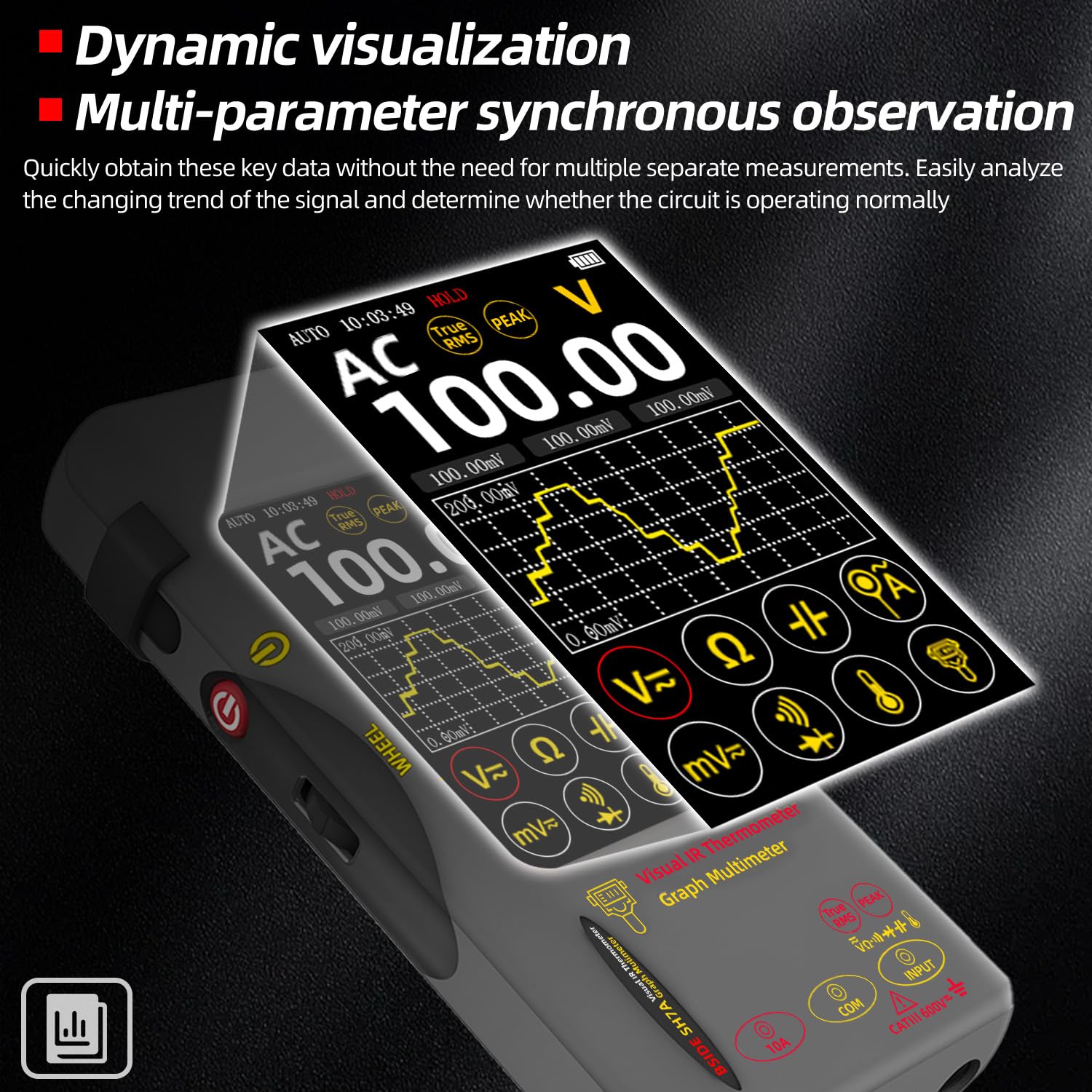

• 20000 Word Multimeter: Digital multimeter features a high precision four and a half digit with spike mode. Flexible operation, can be used in a variety of measurement scenarios. Real-time measure AC and DC voltage 750V/1000V resistance capacitance diode temperature and all support stopping or recalculating the max and min average values.
• With Macro Lens: We have added a macro lens to this SH7A to get a clearer view of close circuit boards and more. With a macro lens is more suitable for circuit board repair.
