Brixwell Glass to Header Mount Shower Door Pivot Hinge, Solid Forged Brass, Lifetime Brass Finish, 3/8" and 1/2" Glass Thickness, 3-1/4" End to End Hole Spacing, Mounting Hardware Included

The Brixwell Glass to Header Mount Shower Door Pivot Hinge in Lifetime Brass finish is designed for frameless shower enclosures where door panels connect to Header systems. Made from solid forged brass with precision-machined stainless steel internal components, this hinge provides strength and long-term performance for shower hardware, door hardware, and glass hardware applications. It features dual precision wound stainless steel return springs that deliver self-centering 0 degree return and self-closing from a 25 degree door angle. A 5 degree positive closure option is available when required. The non-mouse ear design allows improved adjustment during installation and integration with Header system frames. Compatible with 3/8" (10mm) and 1/2" (12mm) tempered glass, each hinge is rated at 40 lbs capacity. With two hinges, the system supports a maximum door weight of 120 lbs and a maximum door width of 36". For weight reference, 3/8" glass is 5.05 lbs/sf and 1/2" glass is 6.40 lbs/sf. Dimensional details include glass edge to hole spacing of 1-13/16", end to end hole spacing of 3-1/4", and a 3/8" cutout radius at each corner. The beveled edge profile ensures a smooth transition within the frameless hinge system. This hinge is non-adjustable and requires glass fabrication cutouts for installation. Hardware includes matching finish stainless steel mounting screws and a hex wrench.

• SOLID FORGED BRASS: Made from solid forged brass with lifetime brass finish, offering reliable strength and appearance that coordinates with glass hardware, shower hardware, and other frameless hinge systems.

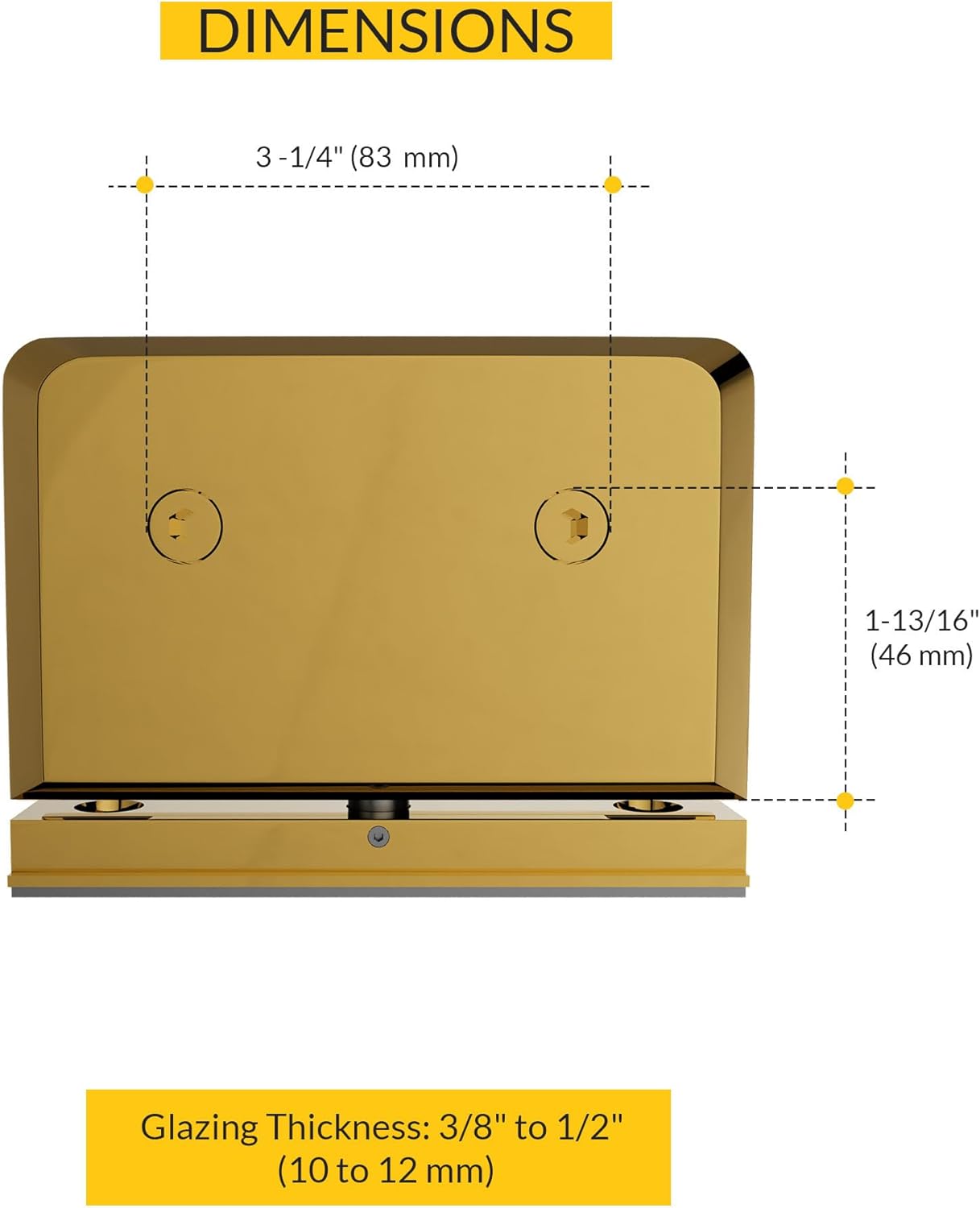

• PRECISE DIMENSIONS: Glass edge to hole spacing of 1-13/16", end to end hole spacing of 3-1/4", and cutout radius of 3/8" each corner, with beveled profile for accurate fit in frameless hinge installations.
• SELF-CENTERING ACTION: Equipped with precision wound stainless steel return springs for self-centering 0 degree return, with self-closing from 25 degree door angle and optional 5 degree positive closure capability.
• DOOR CAPACITY RATINGS: Each hinge supports 40 lbs; two hinges carry doors up to 120 lbs with a maximum width of 36", ensuring stability and reliable performance for frameless shower hardware installations.
• HEADER MOUNT DESIGN: Glass to header mount hinge designed for Header systems, providing a secure connection for frameless shower enclosures while blending with glass hinge, shower hinge, and pivot hinge setups.
• COMPLETE INSTALLATION: Includes matching finish stainless steel mounting screws and hex wrench, designed for Header system compatibility and fitting into door hinge, mount hinge, and shower hardware setups.
