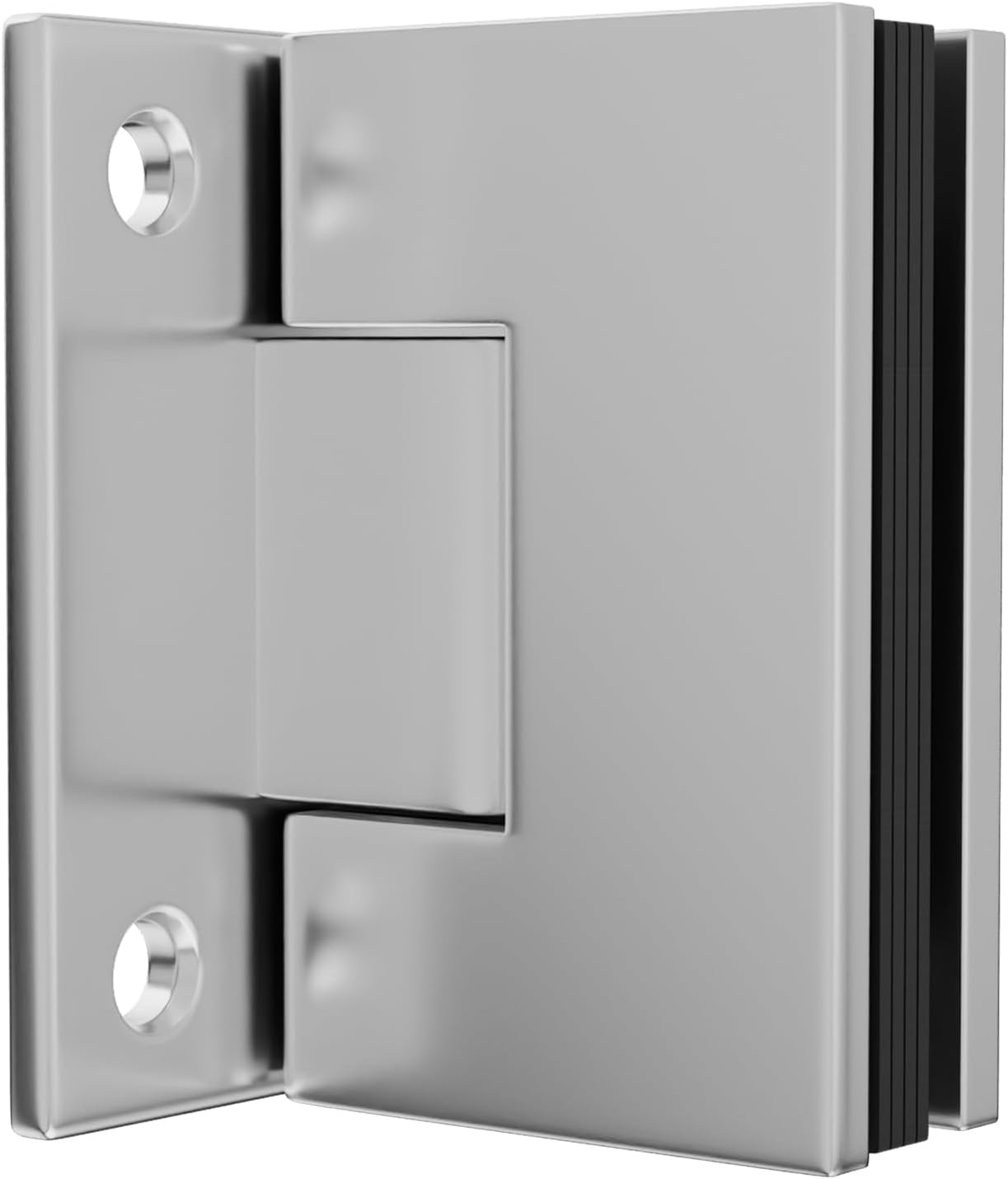

Brixwell Adjustable Wall Mount Hinge with Full Mounting Plate, Satin Finish, Solid Forged Brass, 3-9/16" Height, 2-3/16" Width, Fits 3/8" and 1/2" Glass, Self-Centering, Hardware Included

The Brixwell Adjustable Wall Mount Hinge with Full Mounting plate is designed for frameless shower doors where stability and smooth function are important. Made from solid forged brass with Satin finish, this hinge provides both support and appearance for modern bathrooms. This hinge is built with a square edge profile and a full Mounting plate that measures 3-9/16" in height and 2-3/16" in width, with a 5/32" thickness. The Mounting plate width is 2", offering proper coverage for mounting. The vertical hole center measures 2-3/4", and the horizontal hole center is 1-3/8", supporting accurate glass-to-wall installations. It is designed for 3/8" and 1/2" thick glass and requires a cutout in the glass panel for mounting. The included stainless steel hex clamping screws, wrench, and crosshead screws provide all components needed for proper installation. The hinge supports self-centering at 0 degrees return and allows adjustment up to 30 degrees in or out, making it flexible for different frameless shower door layouts. In terms of weight capacity, each hinge is rated at 40 lbs, with 2 hinges supporting up to 80 lbs and 3 hinges supporting up to 120 lbs.

• MATERIAL AND FINISH: Constructed from solid forged brass with Satin finish, this adjustable wall hinge pairs with shower hardware and glass fittings, offering support for frameless bathroom enclosures and door setups.
• HINGE DIMENSIONS: Measures 3-9/16" height, 2-3/16" width, 2" mounting plate width and 5/32" mounting plate thickness, providing balanced coverage for mounting glass-to-wall hinges in bathroom shower doors and frameless glass systems.
• HOLE CENTER DETAILS: Built with 2-3/4" vertical and 1-3/8" horizontal hole center spacing, allowing accurate placement during installations and supporting precise alignment in bathroom shower enclosures or glass partitions.
• GLASS COMPATIBILITY: Designed to fit 3/8" and 1/2" glass thickness, requiring a cutout in the panel for mounting, making this hinge suitable for frameless shower doors, bathroom partitions, or glass-to-wall installations.
• ADJUSTABLE FUNCTION: Features a self-centering return at 0 degrees with adjustment up to 30 degrees in or out, offering flexibility for frameless shower door layouts and supporting proper alignment during bathroom hardware installations.
• HARDWARE INCLUDED: Comes with Matching finish stainless steel hex clamping screws, crosshead screws, and a hex wrench, providing all required parts for mounting this wall hinge securely in frameless shower doors or glass enclosures.
