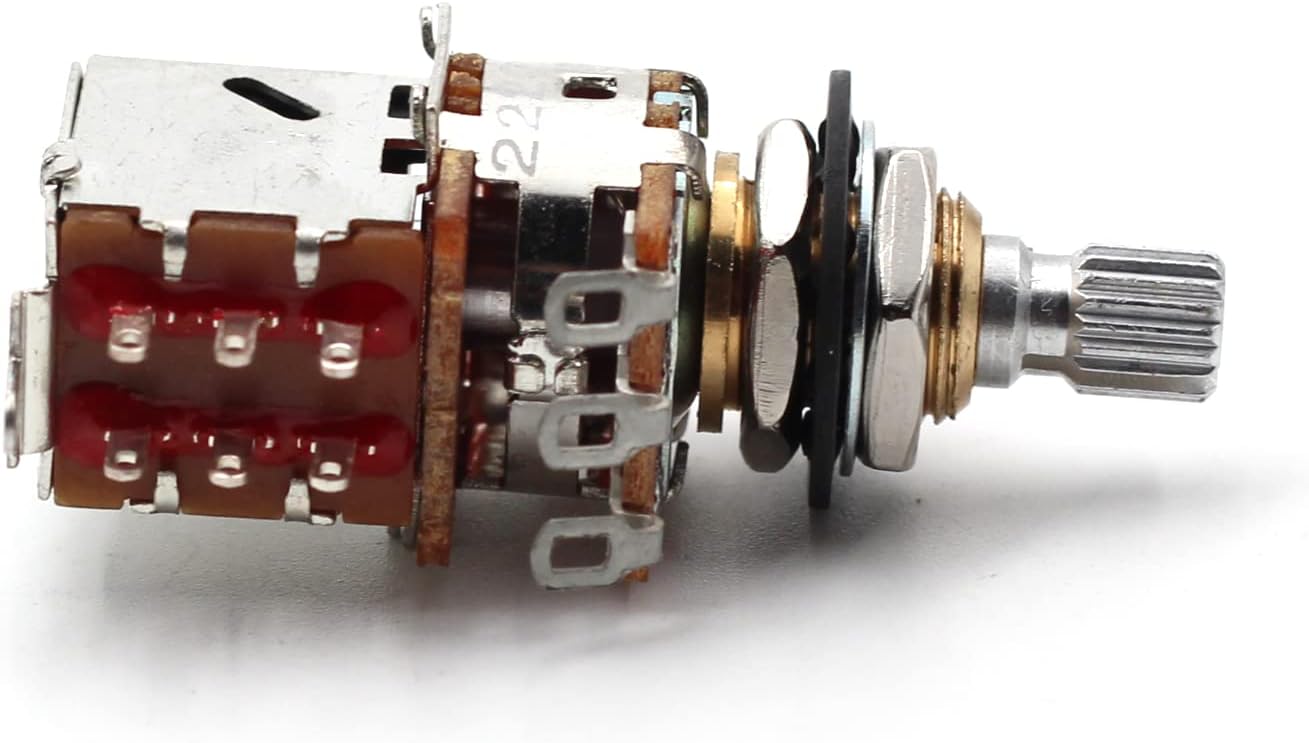

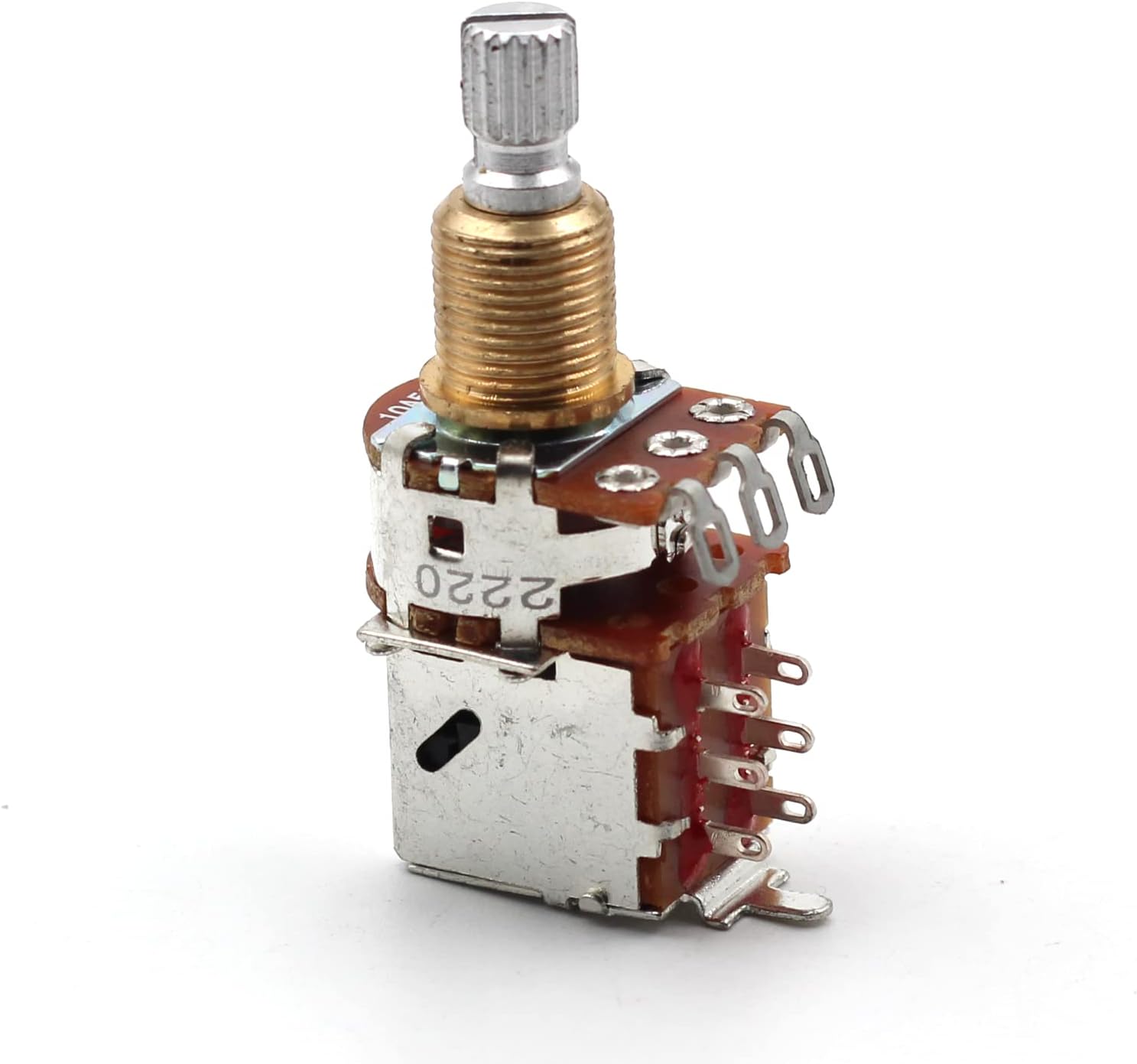

Bourns 500k Push Pull Potentiometer - Short Split Shaft, Audio Taper, DPDT, Low Friction Guitar Pot (4x)
Product details
| Management number | 218039935 | Release Date | 2026/05/03 | List Price | $12.00 | Model Number | 218039935 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Set of Four (4X) Bourns 500K SHORT Push/Pull split shaft audio taper potentiometers. Double Pull Double Throw Push/Pull Switch allows for Coil Splitting, Coil Tapping, Phase Inversions and other mods. Some of the features of this pot are: 500K Ohms/15% Tolerance Audio Taper Double Pole - Double Throw (DPDT), Push/Pull Switch Solid brass 3/8" (short shaft) bushing Split, coarse 18-tooth, knurled, .236" diameter shaft Each pot comes with hardware - nut & dress washer Requires 3/8" diameter mounting hole Note:1. If you are uncertain whether your guitar uses short (3/8") or long (3/4") shaft pots, as a general rule this pot will fit most USA-made Gibson Les Paul's manufactured before 1977 excluding Les Paul Studios, and will fit historic reissues, but please double check before you order.2. Make sure to pinch the tip of the shaft before you try fitting a knob, this will avoid getting knobs stuck before you install the pot. If you've ever had that happen.. 3. Has a coarse spline shaft. This means if you are replacing CTS or other pots using a fine spline shaft, you will need to replace the knobs as well as the pots. 4. Requires a cavity depth of 1.05".
- Versatile Modifications: Enjoy coil splitting, tapping, phase inversions, and more with the Push/Pull switch functionality.
- Precision Control: The 18-tooth coarse spline design ensures accurate adjustments, while the audio taper provides smoother volume control, enhancing your guitar's tonal possibilities.
- Easy Installation: Designed for convenience, each pot comes with all the necessary hardware, including 2 nuts, a dress washer, and a lock washer, for a secure fit of compression-style knobs.
- Seamless Fit: The solid brass 3/8" (short shaft) bushing, ensures these pots integrate seamlessly into your guitar's setup.
- Enhanced Tone Shaping: With a resistance of 500k ohms, these pots offer precise tonal shaping, making them ideal for fine-tuning your guitar's overall sound.
| Color | Silver |
|---|---|
| Model | PDB183-GTR01-504A2 |
| Wattage | 250 Milliwatts |
| Terminal | Dpdt |
| Brand Name | The Art Of Tone |
| Unit Count | 4.0 Count |
| Item Weight | 0.01 Ounces |
| Part Number | pdb183-gtr01-504a2 |
| Switch Type | Push Button |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
| Control Type | Tonal Control |
| Manufacturer | Bourns |
| Actuator Type | Push Button |
| Material Type | Brass |
| Mounting Type | Snap In Mount |
| Connector Type | Bushing |
| Control Method | Touch |
| Operation Mode | manual |
| Controller Type | Push Button |
| Item Dimensions | 1 x 0.75 x 1.82 inches |
| Number of Items | 4 |
| Contact Material | Brass |
| Specification Met | RoHS |
| Included Components | 4x Bourns 500k short push-pull, audio taper guitar potentiometers, 4x Dress washers, 4x Lock Washers, 8x 3/8 in mounting nuts |
| Number of Positions | 2 |
| Warranty Description | 30-day seller. |
| Connectivity Protocol | X-10 |
| Lower Temperature Rating | 1 Degrees Celsius |
| International Protection Rating | IP00 |
