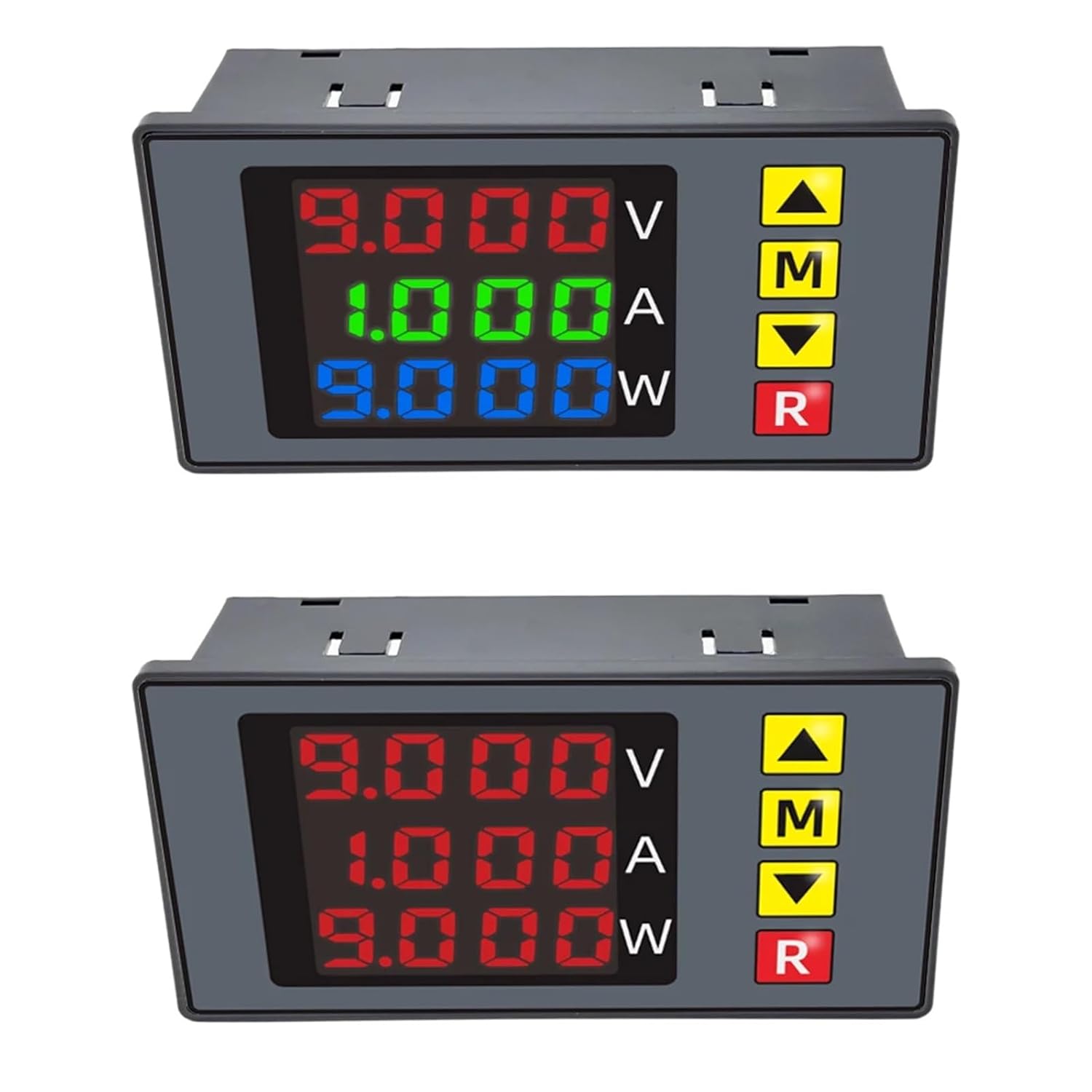

BM730 DC0-100V 10A Digital Voltmeter Ammeter Voltage Current Wattmeter Meter Volt Detector Tester Monitor Panel With Alarm 1Pcs(Red Red Red)

Temperature ControllersFeatures:Voltage Measuring Range: DC0.000~100.0V Error ±1.00V 0.1V start.Current Measurement Range: 0.000A~10.00A Error ±0.1A 0.03A jumpingPower measurement range: 0.000~1000WBright screen off-screen function: support, only control the digital tube, does not affect the circuit on and offVoltage and current display fine-tuning, over-voltage, and over-current with an audible alarmSpecifications:Product name: BM730-10A Voltage Voltage Current Power Meter with Sound AlarmInstrument working voltage: DC7~30V (Do not over-voltage power supply)Voltage Measuring Range: DC0.000~100.0V Error ±1.00V 0.1V JumpingCurrent Measurement Range: 0.000A~10.00A Error ±0.1A 0.03A jumpingPower measurement range: 0.000~1000WWorking energy consumption: about 20mAVoltage display fine-tuning: support, 0.1V stepsCurrent display fine-tuning: support, 0.1A stepsLow voltage audible alarm: support, 0.1V~99.9VHigh voltage audible alarm: Support, 0.1V~100.0VOver-current audible alarm: support, 0.1A~10.00AScreen on and screen off function: support, only control the digital tube, does not affect the circuit on and off.Product size: 79.3×42.1×26.2mmInstallation opening: 71.7×39.1mmWire Definition Introduction:XH-2.54-3P red, black, and yellow wire (thin wire Total length: 155mm)Thin red wire: The positive pole of the working power supply, can not be connected to the power supply above 30V.Thin black wire: the negative pole of the working power supply, and the thick black wire site, do not need to be connected when sharing the power supply.Thin yellow wire: voltage test line, connected to the positive pole of the test circuit power supply.VH-3.96-2P thick red and black wires (thick wire total length: 165mm) current test lineModel Number : BM730 DC0-100V 10A LED Digital Voltmeter Ammeter Voltage Current WattmDIY Supplies : ELECTRICAL
