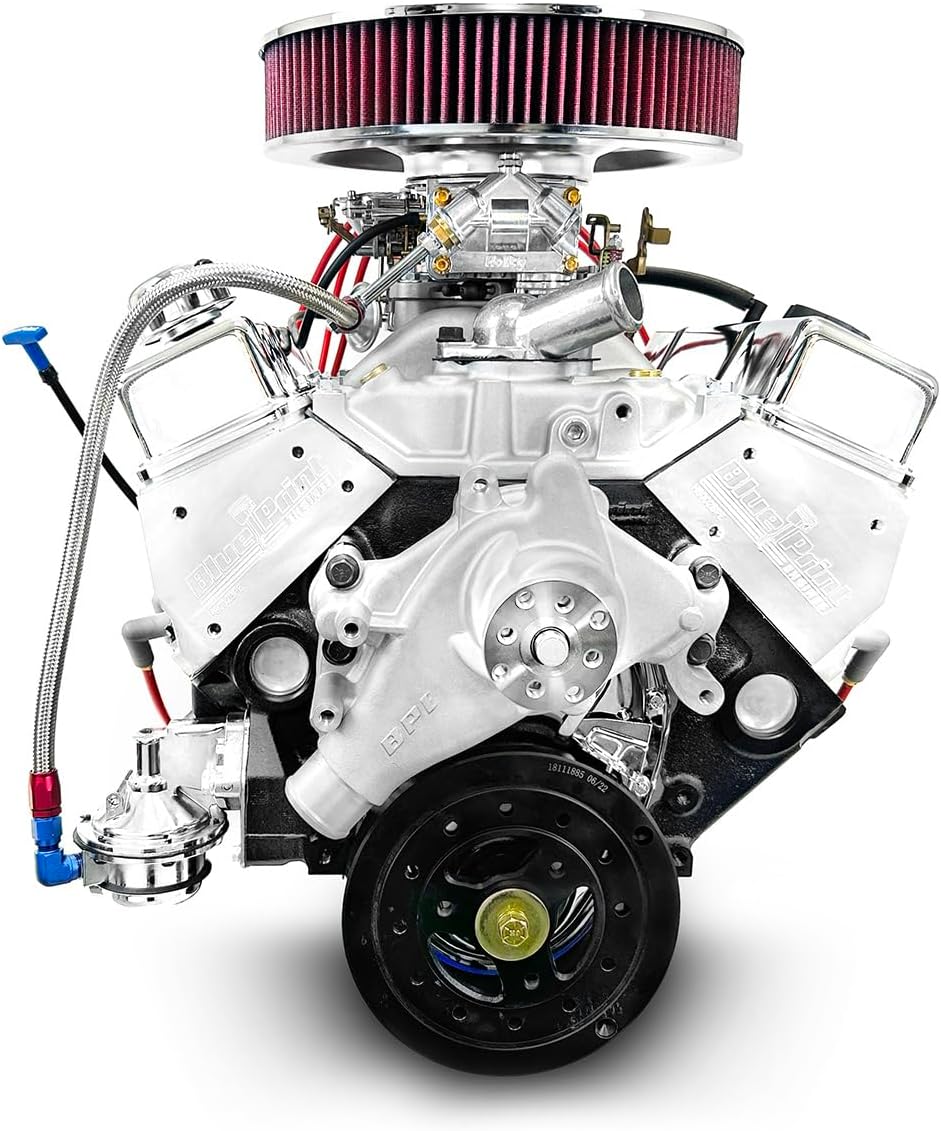

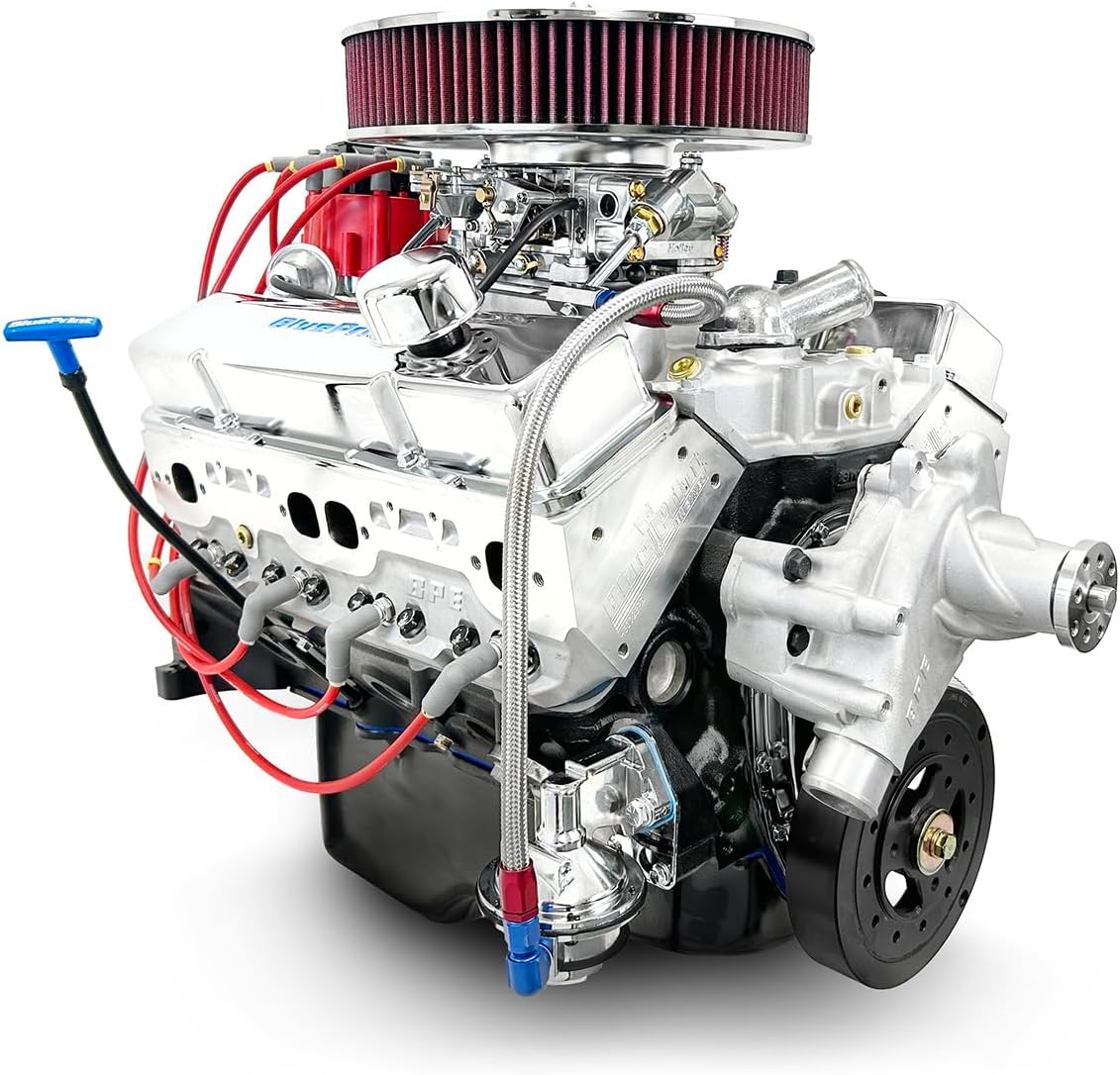

BluePrint Engines GM Small Block Compatible 383 c.i. Engine - 436 HP - Deluxe Dressed - Carbureted

Description: Horsepower and Torque: 436 HP / 443 FT LBS Compression Ratio: 10.0:1 Aluminum Heads Hydraulic Roller Cam Cast Steel Crank Hypereutectic Pistons Block: NEW BluePrint Cast Iron Block Manufactured and Machined in the USA! 4-Bolt Main 4.000" Bore 1-Piece Rear Main Seal Mech Fuel Pump Provision: Yes Passenger Side Dipstick Drilled and Tapped for Clutch Linkage Rotating Assembly: New BluePrint Cast Steel Crankshaft 3.750" Stroke OEM Type 5.700" Connecting Rods w/ 150,000 PSI Bolts Hypereutectic Pistons External Front / External Rear Engine Balance Cylinder Heads: BluePrint Aluminum Cylinder Heads - H8002K 64cc Chamber 2.02" Intake / 1.60" Exhaust Valves 195cc Intake / 75cc Exhaust Runners Cam Specs: Cam Type: Roller .544 Intake / .555 Exhaust Lift 230 Intake / 236 Exhaust Duration @ .050-110 Degree Lobe Separation Ignition Timing: 34 Degrees Total at 3500 RPM Also Includes: Holley Classic 750cfm Vacuum Secondary Carburetor with Manual Choke Aluminum Intake Manifold *Will not clear a stock Corvette hood. Please call for special build options. Standard Rotation Long Style Water Pump Thermostat and Thermostat Housing Valve Covers Harmonic Balancer Spark Plugs Spark Plug Wires Fuel Pump Oil Pan Timing Cover HEI Distributor Notes: This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke. Not for use in pollution-controlled vehicles. The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.

• Horsepower & Torque: 436 HP / 443 FT LBS Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads Compression Ratio: 10:1 Camshaft: Hydraulic Roller Cam - .544 Intake / .555 Exhaust Lift and 230 Intake / 236 Exhaust Duration @ .050 - 110 Degrees LSA Pistons: Hypereutectic Crankshaft: Steel Crank - 3.750" Stroke and 5.700" Rods
