BETAFPV Matrix 1S G4 4IN1 Brushless Flight Controller, Built-in OSD for Analog Mastery, with Onboard Serial ELRS RX, 5V 3A BEC, 12A ESC, 16MB Blackbox, External VTX Soldering Pad for DIY Flexibility

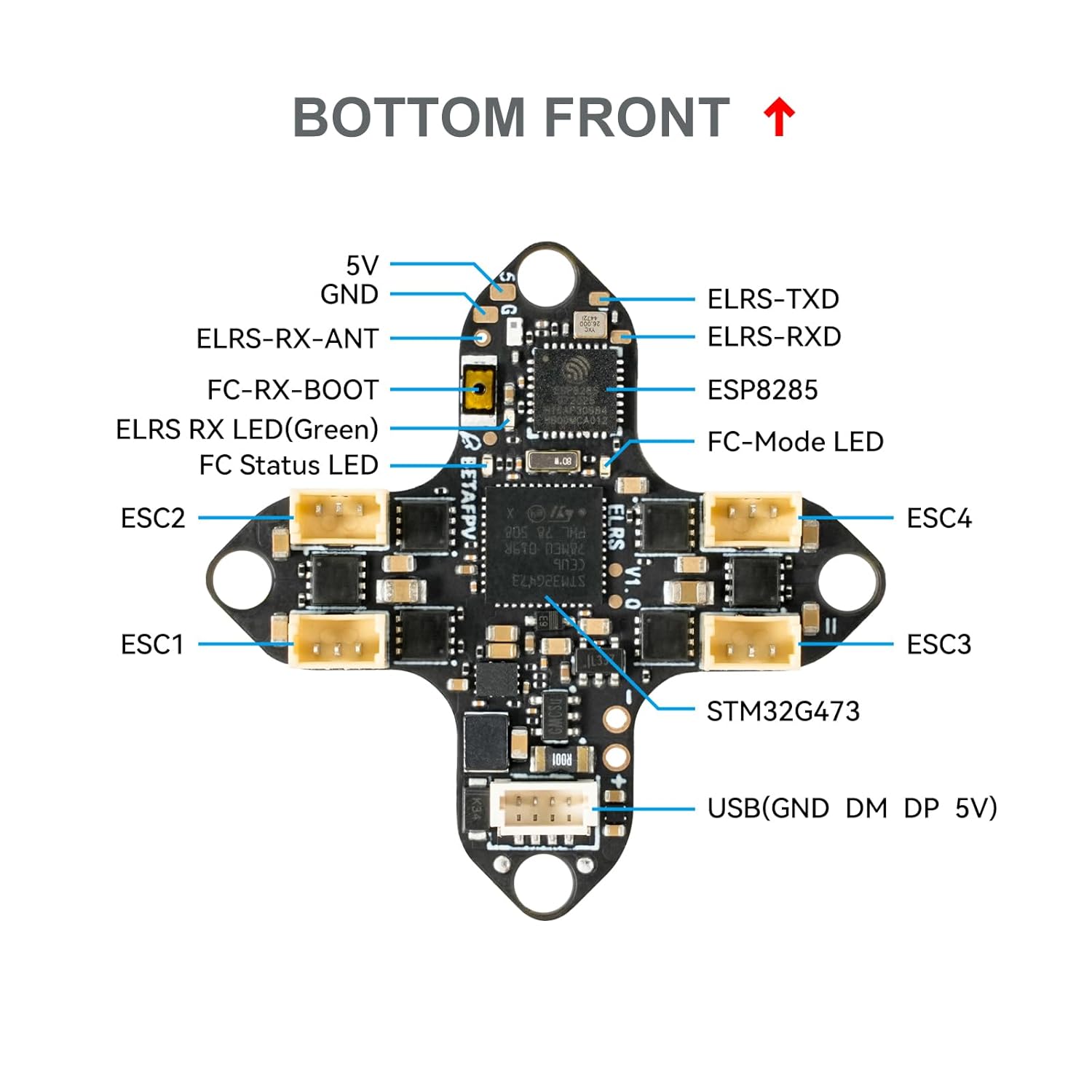

Note: Flight controllers are covered for manufacturer defects. Issues arising from user errors, physical crash damage, damage during installation or dismantling, modifications, power surges, electrical fires, or water exposure are not covered. Note: DO NOT flash the firmware with a shorter interval, otherwise, there will be a certain chance of stalling and burning the flight controller. BETAFPV Matrix 1S G4 4IN1 Brushless Flight Controller, Built-in OSD for Analog Mastery, with Onboard Serial ELRS RX, 5V 3A BEC, 12A ESC, 16MB Blackbox, External RX Soldering Pad for DIY Flexibility FC MCU: STM32G473CEU6 (168MHz) Gyro: ICM42688P Blackbox Memory: 16MB Sensor: Voltage & current BEC: 5V/3A UART: UART 1 (For VTX), UART 2 (Free), UART 3 (For RX), UART 4 (NONE) ESC: 12A continuous RX: Serial ELRS 2.4GHz (V3.4.3) FC Firmware: Betaflight_4.5.2_BETAFPVG473_V2 USB Port: SH1.0-4Pin OSD: AT7456E Motor Plug: JST1.25-3Pin Battery Connector: BT2.0 Mounting Size: 25.5mm x 25.5mm Weight (4IN1 Version): 3.6±0.1g (battery connector excluded), 4.6±0.1g (battery connector included) ESC Power Input: 1S only Current: 12A continuous, 18A peak ESC Firmware: A_X_5_96_v0.19.2.hex for BB51 Bluejay firmware Digital Signal Protocol: DSHOT300, DSHOT600 Recommended Parts Drones: Meteor65 Pro, Meteor75 Pro, Air65, Air75 Frames: Meteor65 Pro Frame, Meteor75 Pro Frame, Air65 Frame, Air75 Frame Motors: 0702 II Motor, 0802SE Motor, 1102 Motor Propellers: GF 1219S 3-Blade, HQ 31mm Ultralight 3-Blade, GF 35mm 3-Blade, GF 45mm 3-Blade Package 1 * Matrix 1S Brushless Flight Controller (4IN1) 1 * Type-C to SH1.0 Adapter 1 * SH1.0-4Pin Adapter Cable 4 * M1.2*4 Self-tapping Screws 4 * M1.4*5 Self-tapping Screws 4 * Shock Absorbing Balls

• The Matrix 1S Brushless Flight Controller redefines 1S whoop performance of the 4IN1 version for analog mastery, adding built-in OSD and solder pads for external VTX, and this flight controller also features with a STM32G473 MCU for 55% faster processing—delivering effortless setup, pro-tier control, and uncompromised flight dynamics that rewrite 1S standards
• This Matrix 1S 4IN1 brushless flight controller comes with a robust ESC with 12A continuous output and 18A peak capacity on the iconic "cross" flight controller. This ensures optimal thrust-to-weight ratio, reliable performance, and worry-free high-definition flights
• This Matrix 1S Whoop Flight Controller retains soldering pads for external analog VTX, giving pilots more options for image transmission flexibility. And the this Matrix 4IN1 1S flight controller also reserves 2 complete full-featured serial ports that can be used for external serial receivers, GPS, HD VTX, or other serial devices
• Unlike traditional shared power supply designs, the Matrix 1S FC features an independent 3.3V LDO power supply exclusively for the IMU. This innovation eliminates interference, creating a cleaner and more stable environment that enhances flight precision, improves sensitivity, and reduces the risk of performance issues—ensuring unmatched stability during every flight

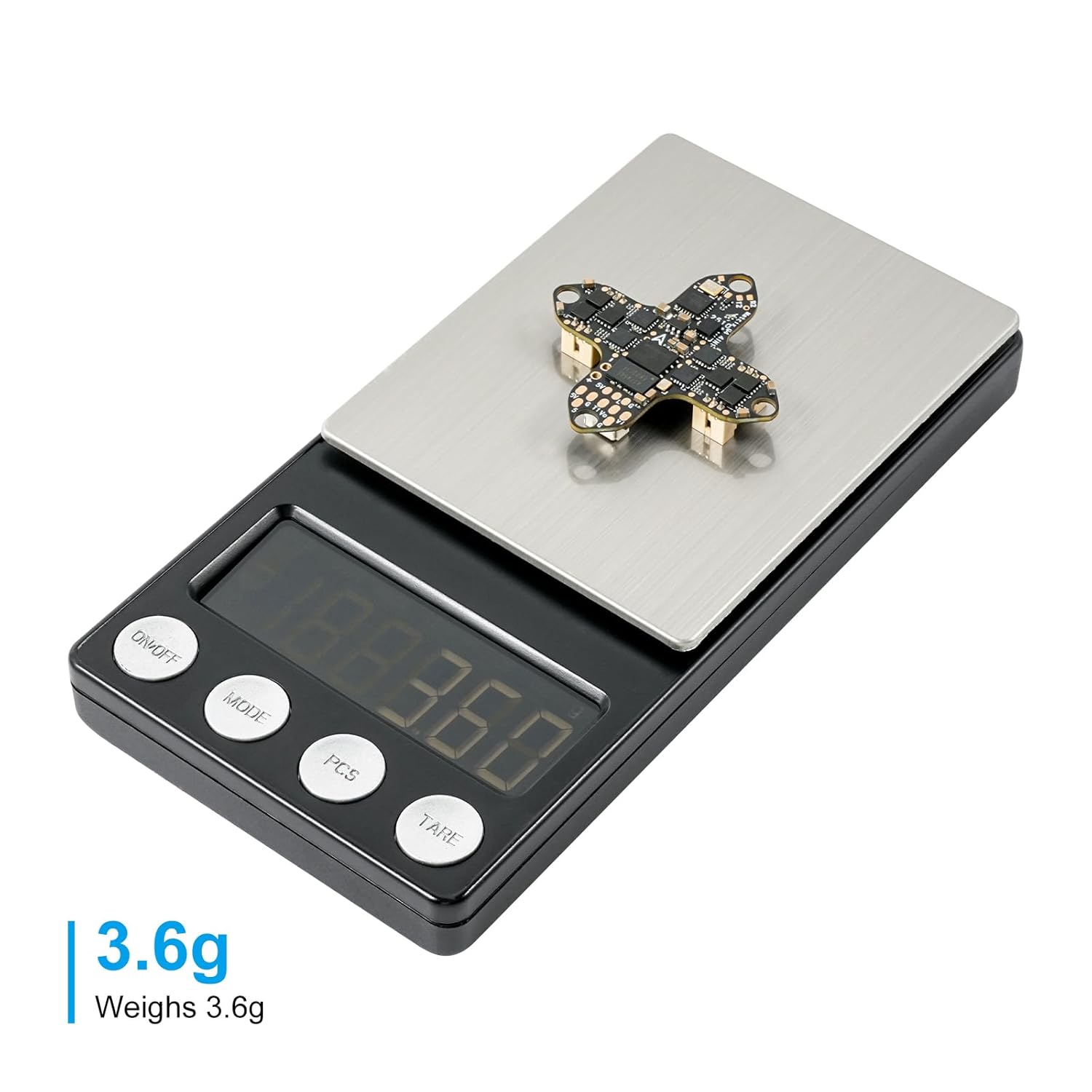

• BETAFPV Matrix 4IN1 Brushles Flight Controller adopts the classic cross shape design with only 3.6g ultralight weight, reasonable layout, and easy to build. With a 25.5mm x 25.5mm mounting hole size, it is fully compatible for the whoop frame like the 65/75mm wheelbase racing whoop drones
