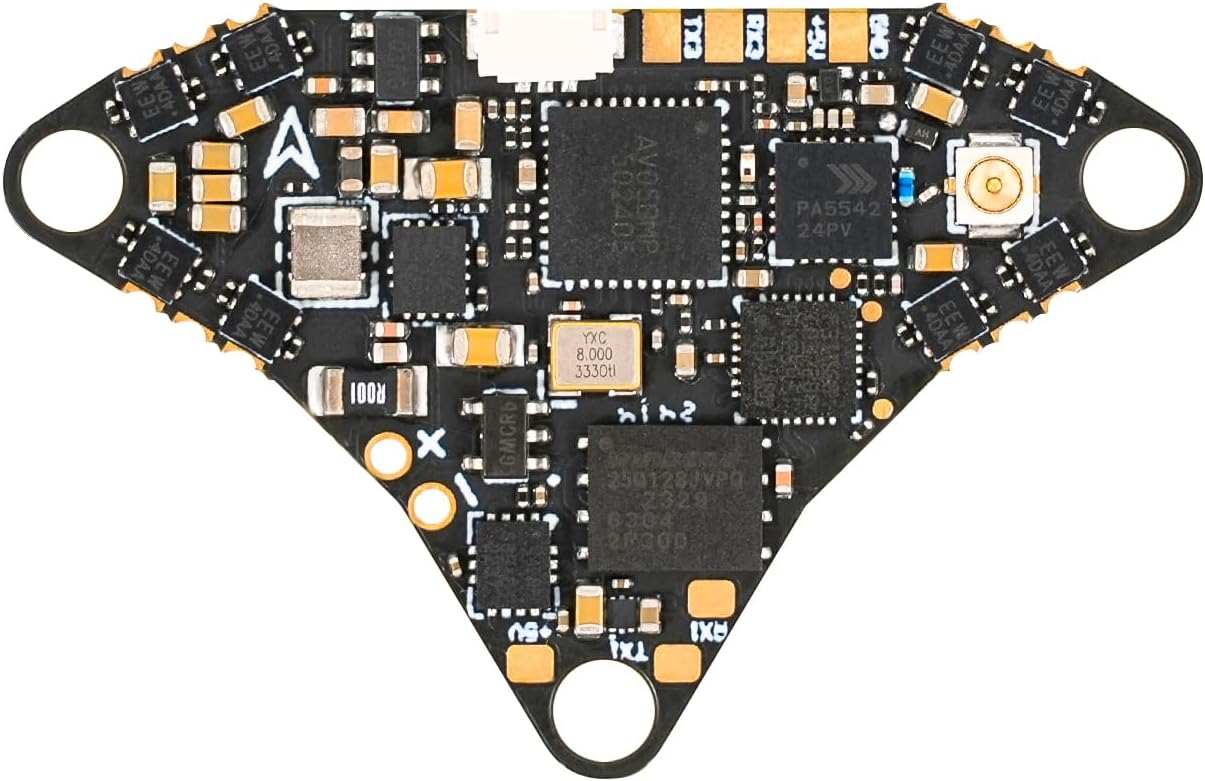

BETAFPV Air Brushless Flight Controller Lightweight 1S AIO FC with G473 CPU 16MB BlackBox BB51 Bluejay 96K ESC OSD Chip SPI Connection External UART Port for 1S FPV Whoop Quadcopter - 4IN1

Attention 1. VTX Power: Higher VTX power consumes more energy and generates more heat, reducing flight time. For better flight time in indoor scenarios, use 25~100mW power. 2. Motor Wiring: Only soldering is supported for motor wiring on the flight control. Avoid terminal plugging. 3. VTX Antenna: Connect and install the image transmission antenna before powering on the flight control. Alternatively, set transmission power to 0 to avoid burn out. Specification of FC Weight: 2.9g (4IN1 Version) Mounting Hole Size: 26mm x 26mm CPU: STM32G473CEU6 (168MHz) Six-Axis: ICM42688P (SPI connection) Blackbox Memory: 16MB Sensor: Voltage&Current 5V BEC: 5V 3A USB Port: SH1.0 4-Pin Built-in ESC with 5A continuous 4IN1 Version: FC+ESC+OSD+VTX Specification of ESC Input Voltage: 1S FC Firmware Version: Betaflight_4.5.0_BETAFPVG473 ESC Firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay hardware Signal Support: D-shot300, D-shot600 Specification of VTX Output Power: 25/100/200/400/PIT Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz Channel SEL: SmartAudio2.0 Modulation Type: FM Frequency Control: PLL All Harmonic: Max -50dBm Frequency Stability: ±100KHz (Typ.) Frequency Precision: ±200KHz (Typ.) Channel Carrier Error: ±1.5dB Antenna Port: 50 Ω Operating Temperature: -10℃~+80℃ Recommend Parts Drones: Air65, Air75 Frames: Air65, Air75, Meteor65, Meteor65 Pro, Meteor75 Pro Motors: 0702/0702SE, 0802/0802SE, 1102 Receiver: ELRS Lite Receiver, ELRS Nano Receiver Package 1 * Air Brushless Flight Controller - 4IN1 Version 1 * Type-C to SH1.0 Adapter 1 * SH1.0 4Pin Adapter Cable 1 * 5.8g VTX Antenna 1 * BT2.0 U Whoop Cable Pigtail | 40mm 4 * M1.4*4 Self-tapping Screws 4 * Shock Absorbing Ball

• Air Brushless Flight Controller, the first 1S FC that utilizes the G473 processor, experienced a remarkable 55% increase in computing speed and lightning-fast response times for precise racing and complex freestyle maneuvers, surpassing the F411
• Higher integration yet lightweight design, featuring a custom miniature OSD chip. Weighing only 2.9g (4IN1 Version), it offers extra UART port options for effortless function expansions, adapting flawlessly to any flight scenario
• Default integrated onboard 25-400 VTX. Streamlines installation saves space, reduces weight, and boosts convenience for VTX and FC adjustments
• Elevate your drone's precision with the industry-leading ICM42688P gyro, integrated accelerometer, cutting-edge sensor calibration, and filtering algorithms, and a sample rate of up to 8K, which takes the drone's posture and movement accurate and precise drone to the next level
• Unlock extensive flight data recording and analysis with an impressive up to 16MB capacity black box. Maximize performance and diagnose faults effectively, leveraging the full potential of your drone
