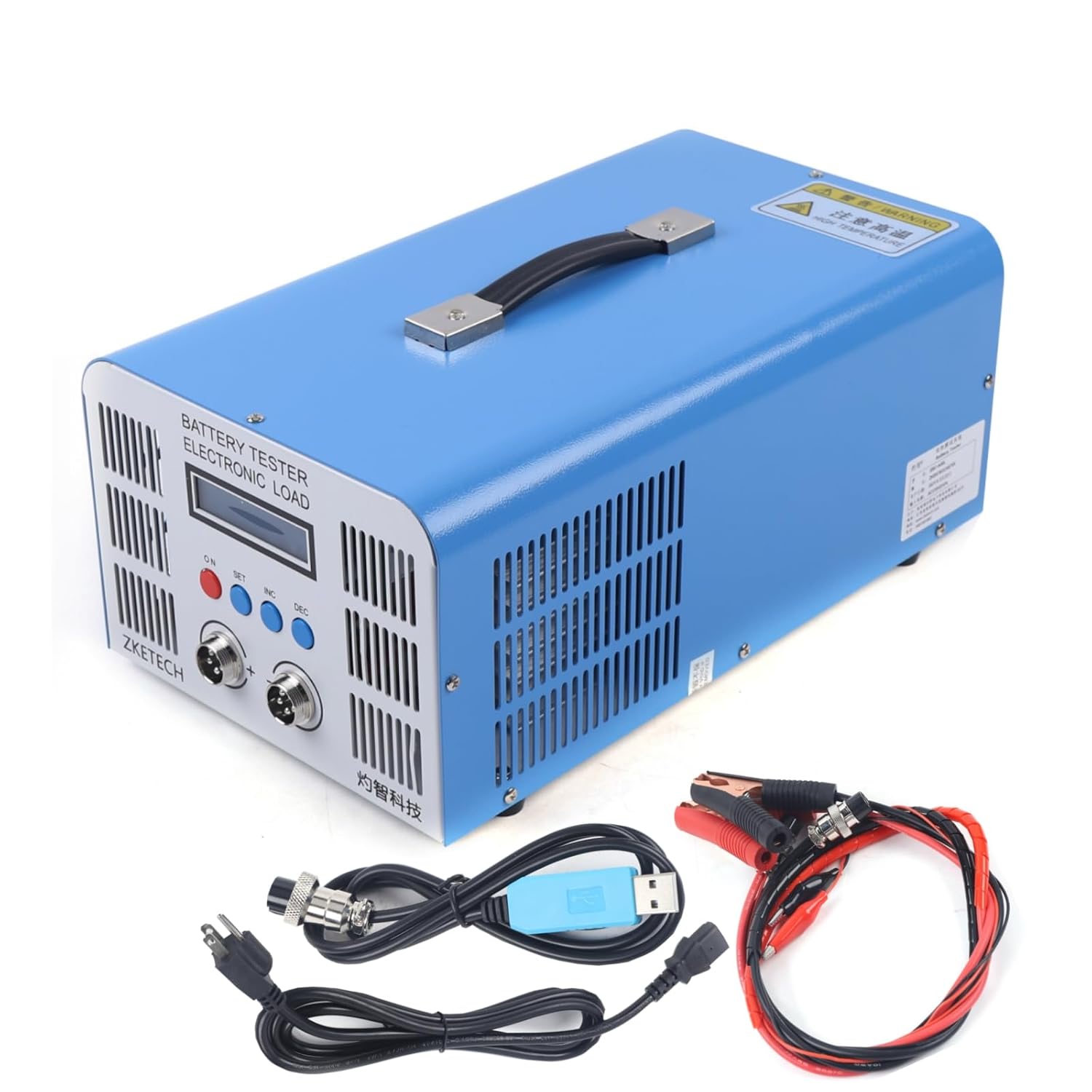

Battery Tester Electronic Load 0.1-40A Large Current Lithium Battery Charge Discharge Capacity Tester, Time/Cut-Off Current/Manual Charge Discharge Termination

Specifications:Power Supply: AC 110VVoltage Range: 0-5V Voltage Accuracy: 0.2%±0.003VCurrent Range: 0.1- 40ACurrent Accuracy: 0.2%+0.01ADischarging Mode: CC/CPDischarging Termination: Time / Cut-off Voltage / ManualDischarging Power: 200W MaxCharging Mode: CV Charging Termination: Cut-off Current / ManualHeat Dissipation: FanPackage Size: 18'' x 12'' x 11''Shipping Weight: 12 lbsCapacity Measurement:Within 10Ah, the resolution is 0.001Ah10Ah-100Ah, resolution 0.01AhAbove 100Ah, resolution 0.1AhPackage Includes:1 x Battery Tester1 x Online Cable1 x Testing Cable1 x Power Supply Cable

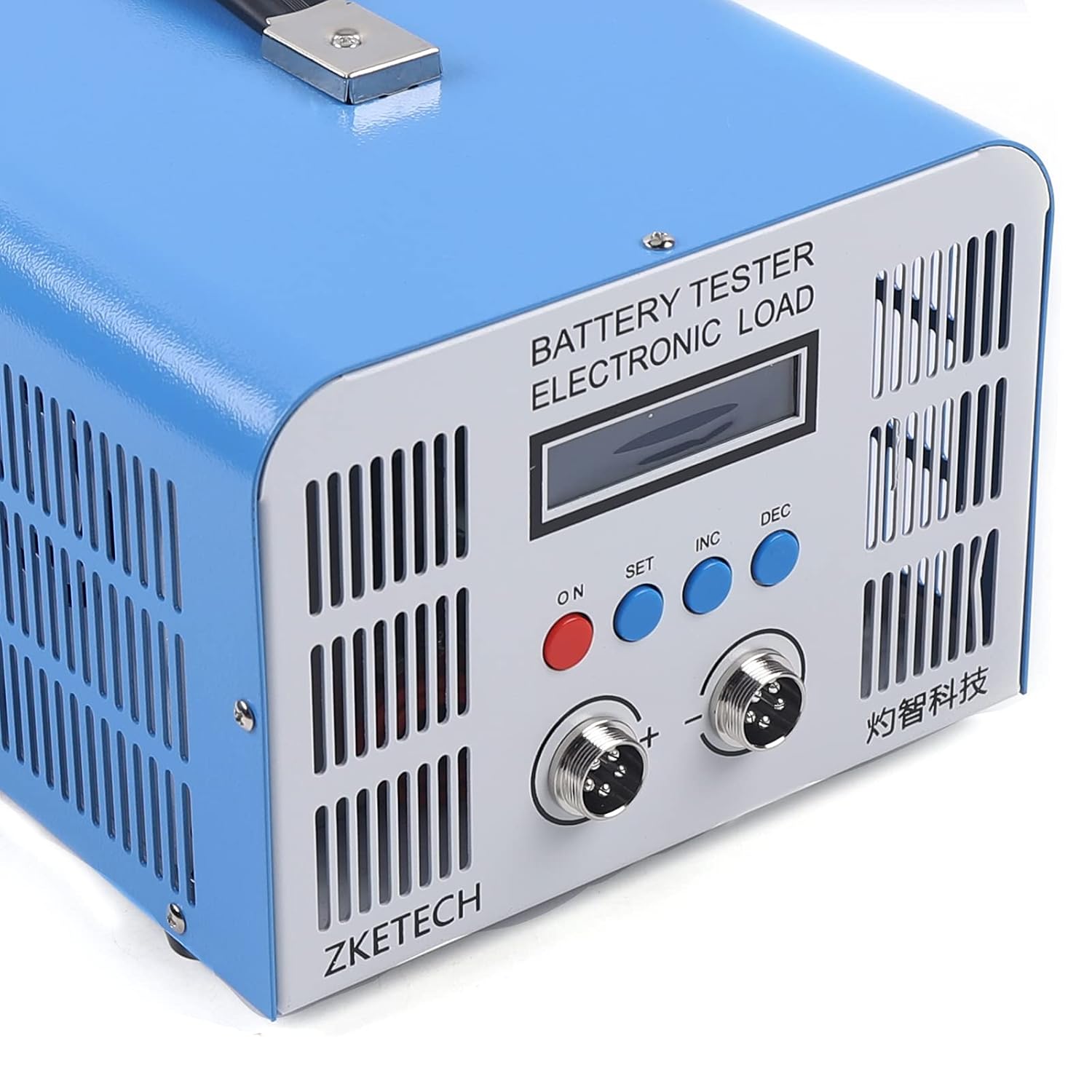

• 【BATTERY CAPACITY TESTER】EBC-A10H is an electronic load with charging function. It is suitable for charging and discharging capacitance test of various batteries, mobile power discharge test, charging head power performance test, support for connecting to computers, and more extended functions through online software.
• 【AUTOMATIC BATTERY CAPACITY TEST】Charging method is standard charging, support nickel hydrogen, nickel chromium, lithium, iron lithium, lead acid. Support automatic charging - discharge - charging mode for testing battery capacity. LCD display: voltage, current, capacity, time, power, energy test data.
• 【LARGE CURRENT BATTERY CHARGE DISCHARGE】This EBC-A10H battery capacity tester is designed to charge and discharge batteries within 5V at a large current, the maximum current it supports is 40A in charging and 40A in discharging. It can connect with a computer through a designated USB-TTL cable.
• 【TECHNICAL PARAMETERS】Power Supply: AC 110V; Voltage Range: 0-5V; Voltage Accuracy: 0.2%±0.003V; Current Range: 0.1- 40A; Current Accuracy: 0.2%+0.01A; Discharging Mode: CC/CP; Discharging Termination: Time / Cut-off Voltage / Manual; Discharging Power: 200W Max; Charging Mode: CV; Charging Termination: Cut-off Current / Manual; Heat Dissipation: Fan; Package Size: 18'' x 12'' x 11''; Shipping Weight: 12 lbs.
• 【CAPACITY MEASUREMENT】Within 10Ah, the resolution is 0.001Ah; 10Ah-100Ah, resolution is 0.01Ah; Above 100Ah, resolution is 0.1Ah. (Package Includes: 1 x Battery Tester, 1 x Online Cable, 1 x Testing Cable, 1 x Power Supply Cable.)
