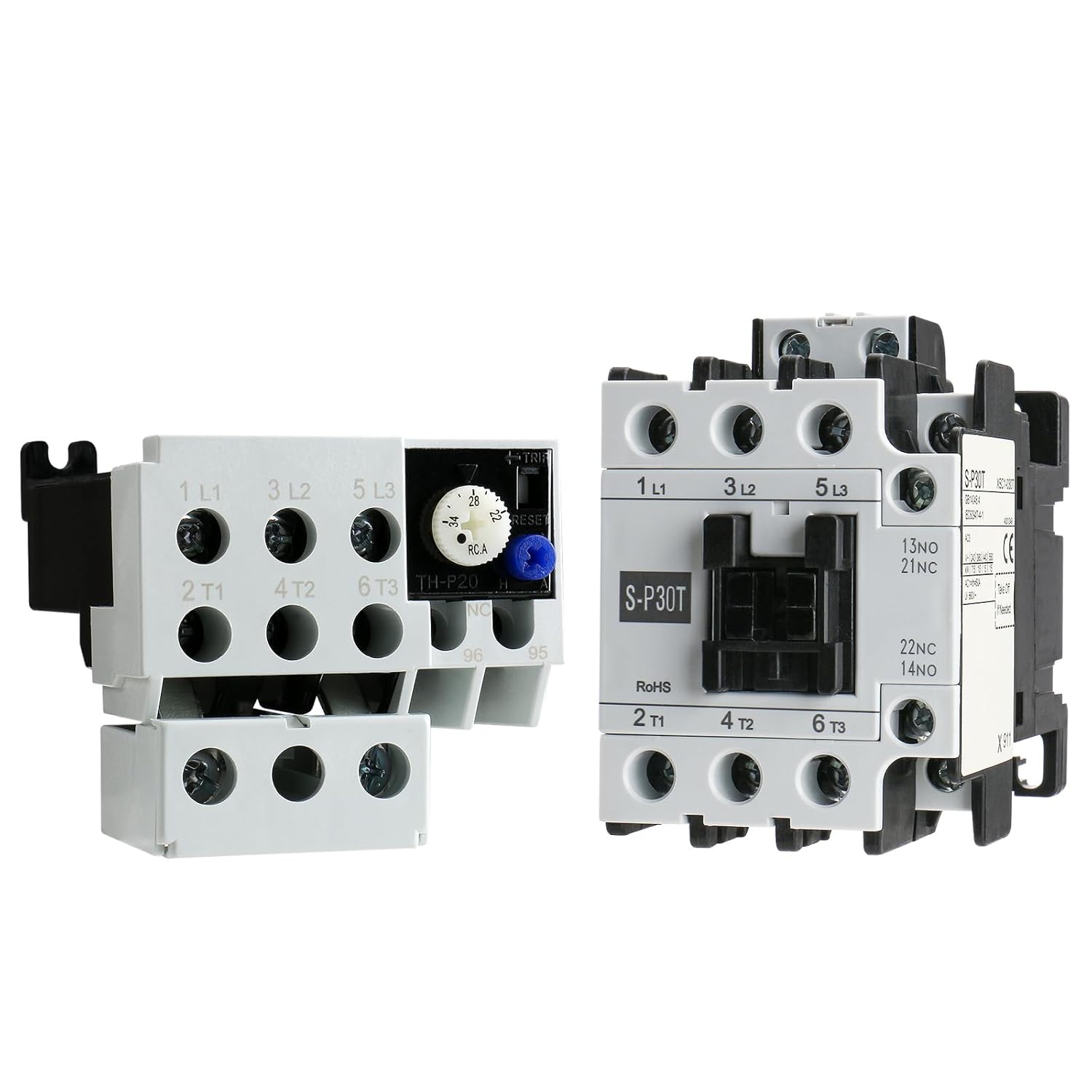

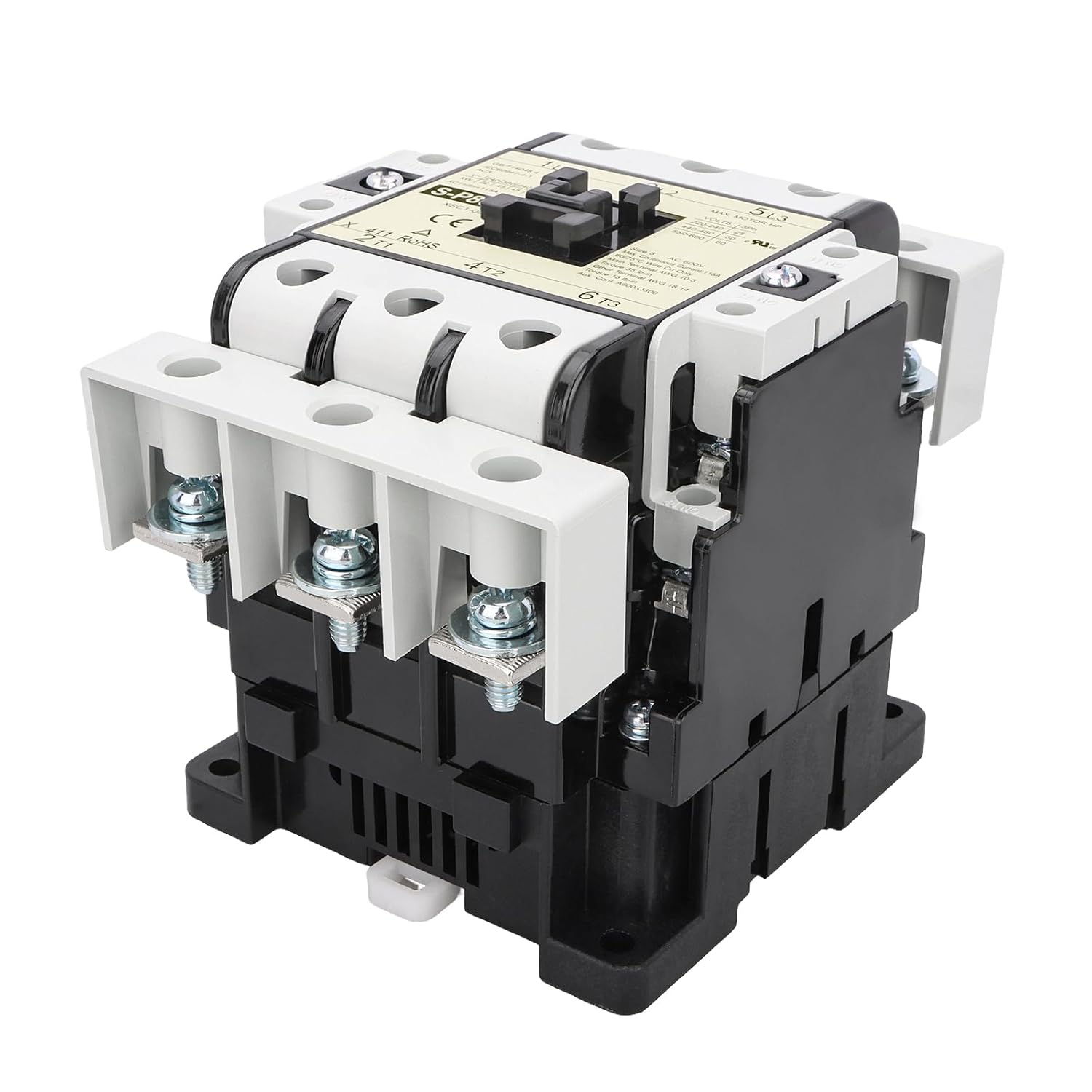

Baomain Magnetic AC Contactor, 3 Pole 50A Ith 220V AC Coil, 2NO2NC Auxiliary Contact, DIN Rail Mount, UL Certified (P35T-220V)
Product details
| Management number | 215635674 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 215635674 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【35A AC-3 / 50A AC-1 Rated Load Switching】This 3-pole AC Contactor is rated for motor loads (AC-3 duty) at 35A, 110V AC and resistive loads (AC-1 duty) at 50A, 110V AC
- 【220V AC Coil with 2NO+2NC Auxiliary Contact】Operates with a 220V AC 50/60Hz coil voltage. Includes 2NO + 2NC auxiliary contact block for use in control circuit interlocking, status signaling, or self-latching circuits
- 【660V Insulation and 6kV Impulse Withstand Voltage】Constructed with insulation rated for 690V and an impulse withstand voltage (Uimp) of 6kV. This design provides protection against voltage spikes in electrical systems
- 【DIN Rail Mounting with Screw Terminals】Designed for easy installation on standard 35mm DIN rails, ensuring a neat and organized setup in control panels. The screw terminals accept copper wires: 6-10 AWG for main and auxiliary circuits, and 14-18 AWG for the coil connection
- 【UL Certified and CE Marked】This contactor is UL Certified and CE marked, confirming compliance with specific safety standards for use in North America and international markets
| Model | P35T-220V-AC |
|---|---|
| Brand Name | Baomain |
| Unit Count | 1.0 Count |
| Part Number | P35T-220V-AC |
| Coil Voltage | 110 Volts (AC) |
| Contact Type | 3no 2no 2nc |
| Manufacturer | Baomain Electric |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 50 Amps |
| Operation Mode | Automatic |
| Contact Material | Copper |
| Specification Met | CE, UL |
| Included Components | Magnetic AC Contactor |
| Contact Current Rating | 50 Amps |
| Minimum Switching Voltage | 110 Volts (AC) |
