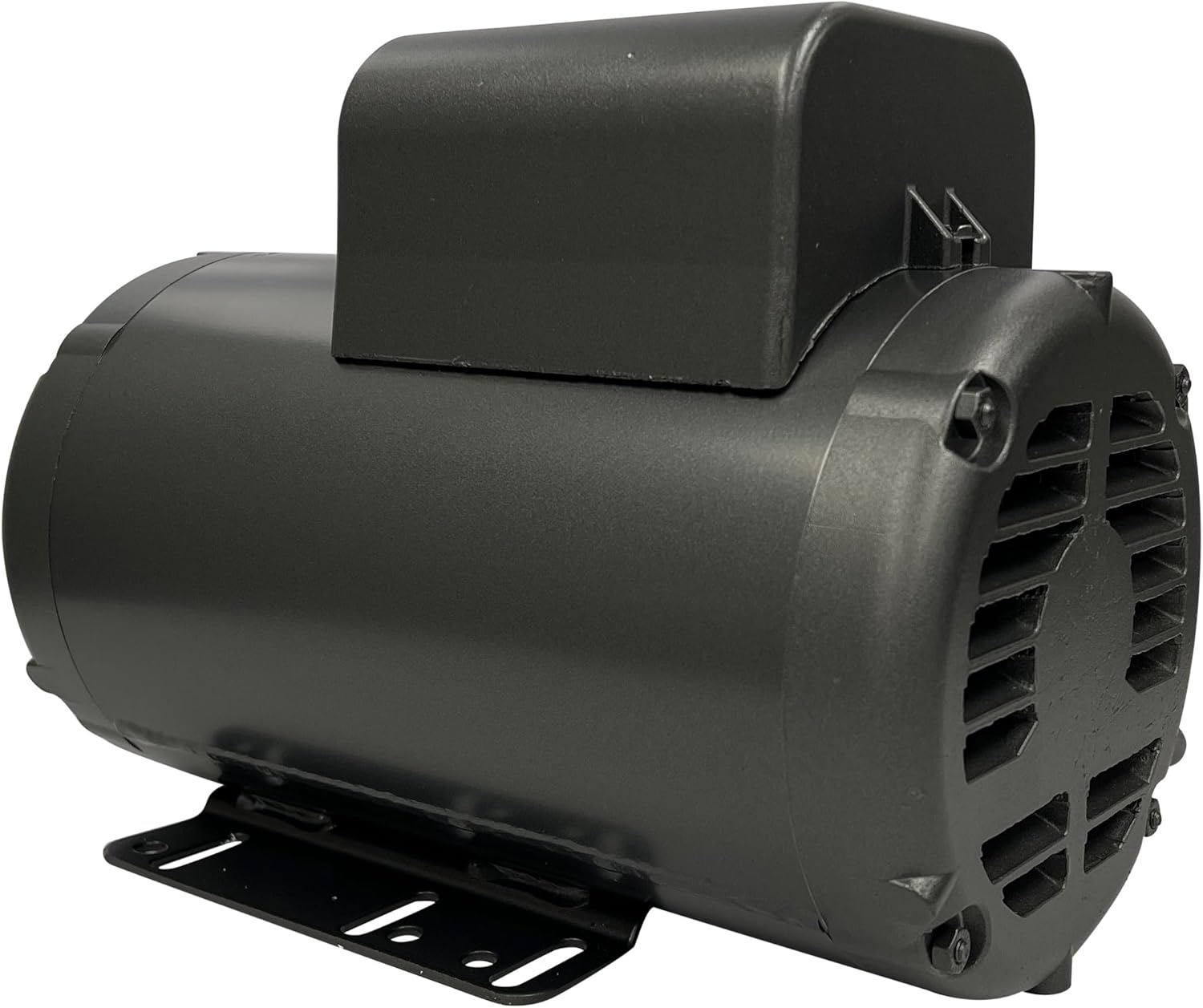

BALDOR 5HP AIR COMPRESSOR ELECTRIC MOTOR, 56HZ FRAME, 3450RPM, 208/230V, SINGLE-PHASE, 7/8" SHAFT, 1.15 SERVICE FACTOR MADE IN USA
Product details
| Management number | 216580637 | Release Date | 2026/04/19 | List Price | $233.98 | Model Number | 216580637 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
TECHNICAL INFORMATION: 5HP, SINGLE PHASE, 56HZ FRAME WITH 7/8" SHAFT DIAMETER, 3450 RPM, ODP (OPEN DRIP PROOF) ENCLOSURE TYPE DESIGNED FOR DRY INDOOR ENVIRONMENTS, 208-230 VAC, 60hz, 21.5 AMPS AT 230V, 23.5 AMPS AT 208V, 1.15 SERVICE FACTOR AT 230V, 1.0 SERVICE FACTOR AT 208V (USABLE AT 208V), CLASS F INSULATION, THERMALLY PROTECTED WITH MANUAL RESET BUTTON LOCATED ON JUNCTION BOX, FULL 1 YEAR MANUFACTURERS WARRANTY, WIRING SCHEMATIC LOCATED ON MOTOR, IN ADDITION TO ATTACHED PICTURE ON THIS LISTING, UL APPROVED, CSA APPROVED, 79% NOMINAL EFFICIENCY, 96% P.F. EFFICIENCY, FULL 1 YEAR MANUFACTURERS WARRANTY INCLUDED, PROFESSIONAL INSTALLATION REQUIRED,
- 5HP SINGLE PHASE 208-230 VOLT COMPRESSOR DUTY ELECTRIC MOTOR
- 56HZ FRAME, 7/8" SHAFT DIAMETER, 3450 RPM, MADE IN USA BY BALDOR / ABB
- __THIS MOTOR HAS A 1.15 SERVICE FACTOR AND IS USABLE AT 208V __
- 21.5 AMPS AT 230V / 23.5 AMPS AT 208V, MOTOR IS REVERSIBLE FOR CW OR CCW ROTATION
- ENCLOSURE TYPE ODP (OPEN DRIP PROOF) DESIGNED FOR DRY INDOOR ENVIRONMENTS
| UPC | 713807487676 |
|---|---|
| Color | Black |
| Style | Portable |
| Voltage | 230 Volts |
| Brand Name | Baldor |
| Model Name | 5HP Air Compressor Electric Motor |
| Item Weight | 50 Pounds |
| Manufacturer | BALDOR 5HP AIR COMPRESSOR ELECTRIC MOTOR, 56HZ FRAME, 3450RPM, 208/230V |
| Model Number | 20525760380994 |
| Power Source | AC |
| Material Type | Alloy Steel |
| Maximum Power | 5 Horsepower |
| Maximum Current | 21.5 Amps |
| Motor Horsepower | 5 Horsepower |
| Additional Features | Heavy Duty |
| Included Components | Mounting hardware, wiring schematic |
| Item Dimensions L x W x H | 20"L x 12"W x 12"H |
| Recommended Uses For Product | Air Brushing, Blow Cleaning, Bolting, Cutting, Drilling, Grinding, Nailing, Sanding, Spraying, Tire Inflation |
