AVMATRIX MSS1611-S 16x16 Seamless SDI Matrix Switcher, Clean Switch, 16 SD/HD/3G-SDI Auto-Detect Inputs, Up/Down Scaling, Front Panel Control, Dual Power Design
Product details
| Management number | 215162630 | Release Date | 2026/04/12 | List Price | $519.60 | Model Number | 215162630 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

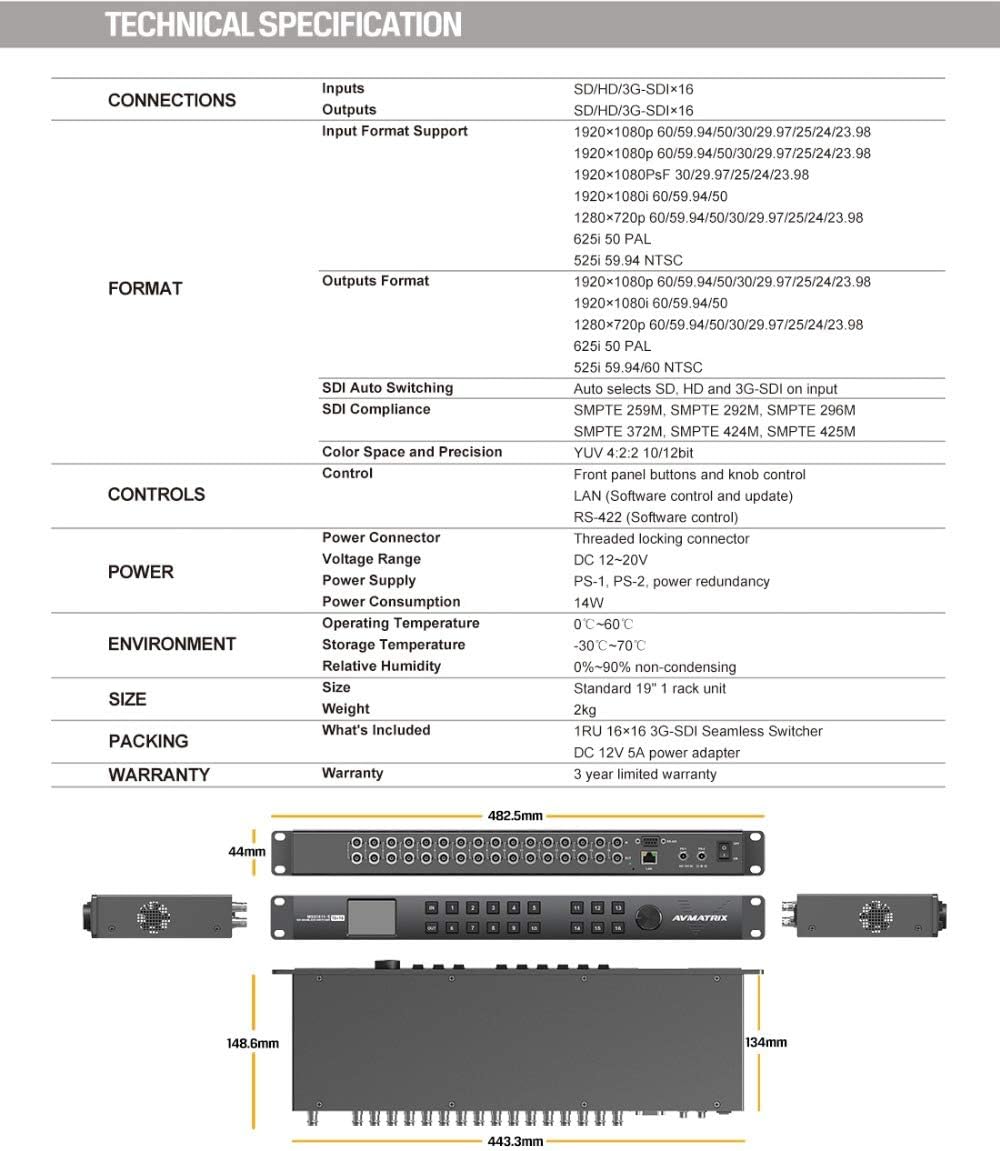

Avmatrix MSS1611-SAVMatrix MSS1611-S Seamless SDI 16x16 Matrix Switcher, Clena Switch Without any Black Screen on Each Input, 16x16 SD/HD/3G-SDI Auto-Detect Inputs, Up/Down Scaling on SDI, Front Panel Buttons Built-in frame synchronizer supports simultaneous input of signals of different resolution frame rates, which can realize seamless switching without black screen.Signal switching is clean without the need for external REF synchronization. Key Features: - Clean switch without any black screen on each input - 16x16 SD/HD/3G-SDI auto-detected inputs - Up/down scaling on SDI outputs - Front panel buttons and knob control with LDC display - PC control software via LAN port - Dual power design, redundant power Specifications: Connections: - Inputs: SD/HD/3G-SDI x 16 - Outputs: SD/HD/3G-SDI x 16 - Input Format Support: 1920x1080p 60/59.94/50/30/29.97/25/24/23.98, 1920x1080p 60/59.94/50/30/29.97/25/24/23.98, 1920x1080PsF 30/29.97/25/24/23.98, 1920x1080i 60/59.94/50, 1280x720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50 PAL, 525i 59.94 NTSC Format: - SDI Auto Switching: Auto selects SD, HD and 3G-SDI on input - SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M - Color Space and Precision: YUV 4:2:2 10/12bit Controls: - Control: Front panel buttons and knob control; LAN (Software control and update); RS-422 (Software control) Power: - Power Connector: Threaded locking connector - Voltage Range: DC 12-20V - Power Supply: PS-1, PS-2, power redundancy - Power Consumption: 14W Size: - Standard 19" 1 rack unit - Weight: 4.4 pounds Compact Seamless SDI Matrix Switcher Features 3G/HD/SD SDI 16 inputs and 16 outputs - Box dimensions (LxWxH): 21.7" x 10.8" x 3.4"
- Clean switch without any black screen on each input
- 16x16 SD/HD/3G-SDI auto-detected inputs
- Up/down scaling on SDI outputs
- Front panel buttons and knob control with LDC display

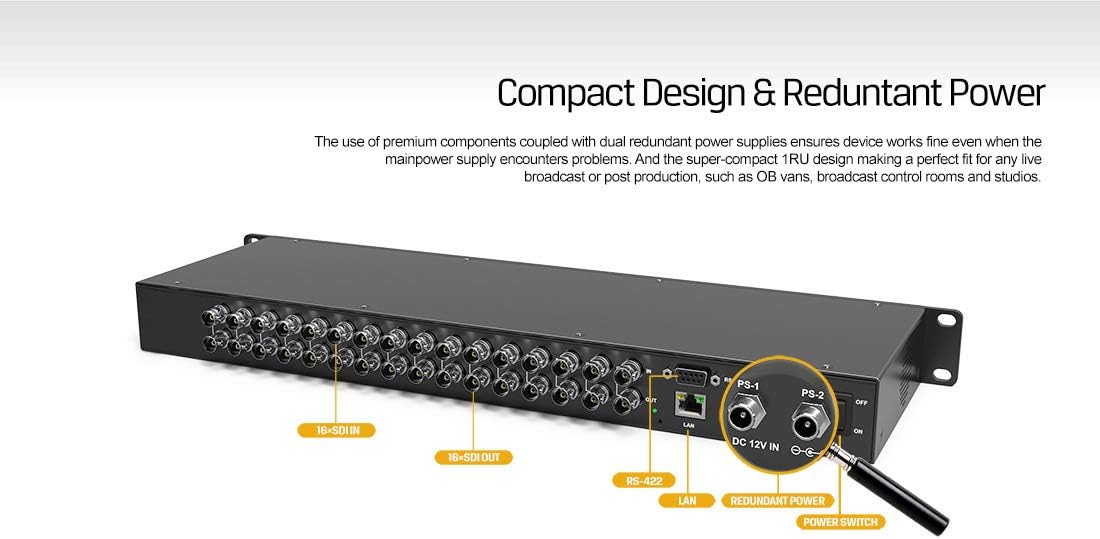

- Dual power design, redundant power
| Item Weight | 4.4 pounds |
|---|---|
| Manufacturer | Avmatrix |
| Item model number | MSS1611-S |
| Package Dimensions | 24 x 18.3 x 10 inches |
