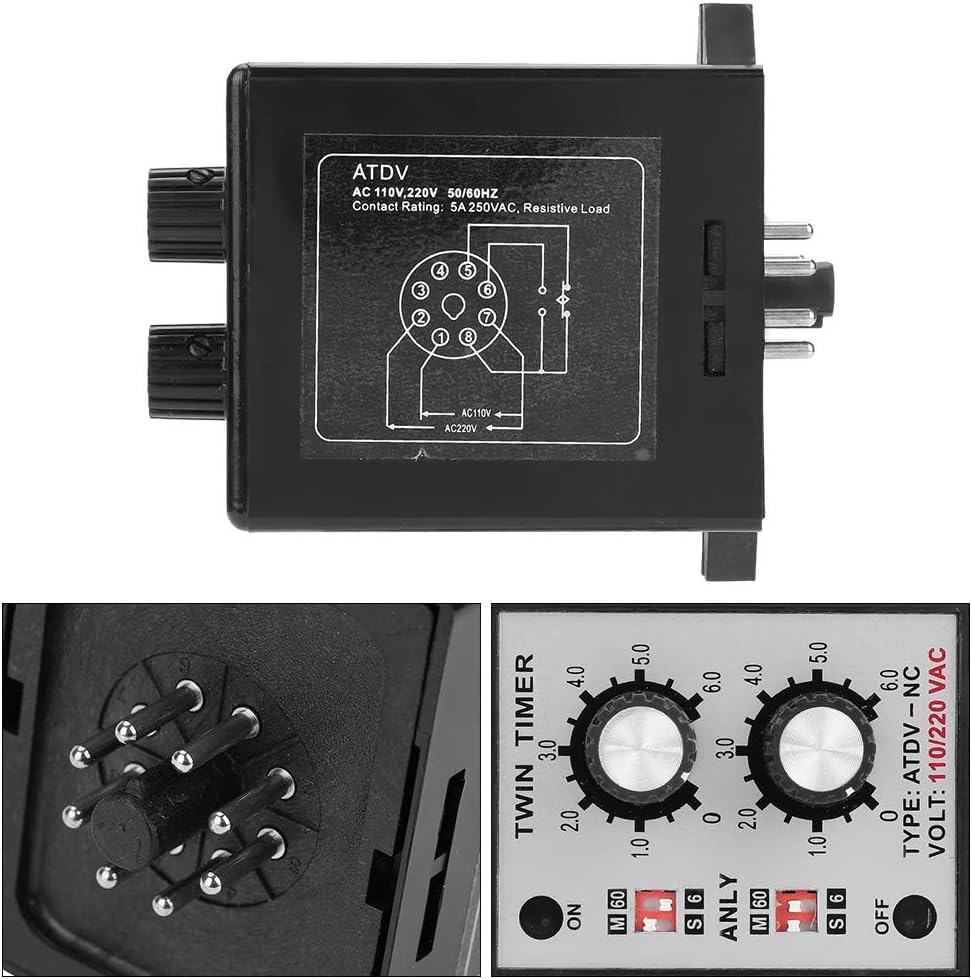

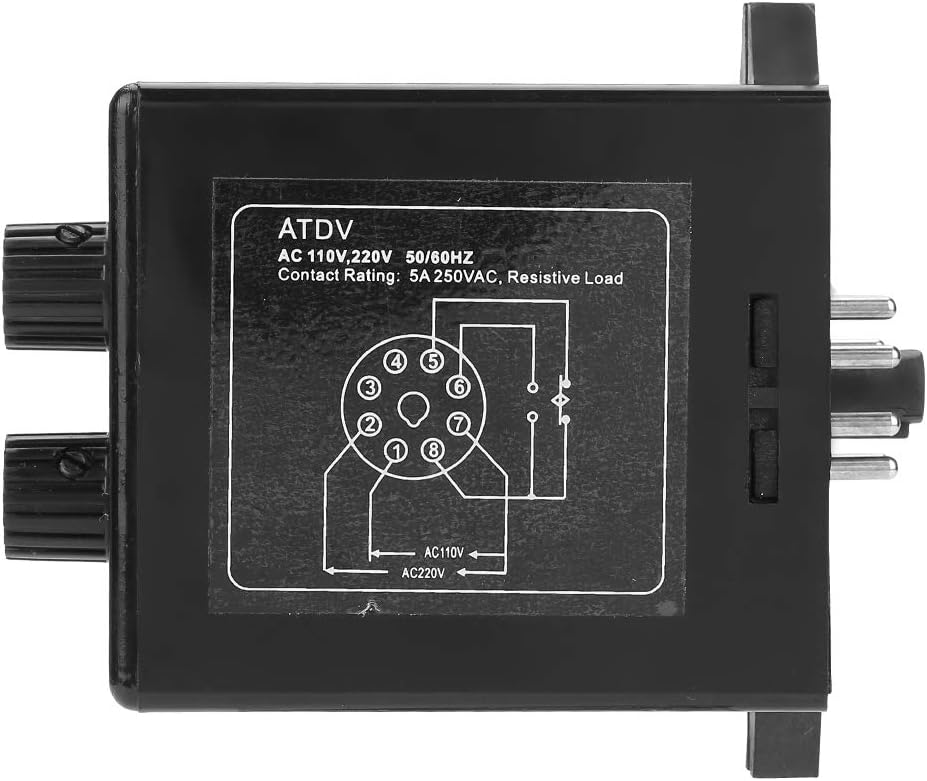

ATDV-NC Twin Timer Relay, with Timing Power-on and Power-Off Function

Features: 1. This is twin timer relay with timing power-on and power-off function. 2. Adjustable 6S-60M delay time by knob. 3. High quality plastic case, waterproof and dustproof. 4. High precision, low power consumption, long lifespan. 5. With strong anti-interference performance for stable working. Specification: Model: ATDV-NC Time range: 6S-60M Rated current: 5A Rated voltage: 220V Contact load: Medium power Contact switching current: 5A Contact switching voltage: 1V Coil power supply: 24V 3C rated voltage range: <36V Mounting method: Exposed N for PF083A base or PF085A base, bury Y-40 deck + P3G-08 socket Dimensions: 61*50*70mm / 2.40*1.97*2.75in Weight: Approx. 205g/7.2oz Package list: 1 x Twin Timer Relay Note: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.

• This is twin timer relay with timing power-on and power-off function.
• Adjustable 6S-60M delay time by knob.
• High quality plastic case, waterproof and dustproof.
• High precision, low power consumption, long lifespan.
• With strong anti-interference performance for stable working.
