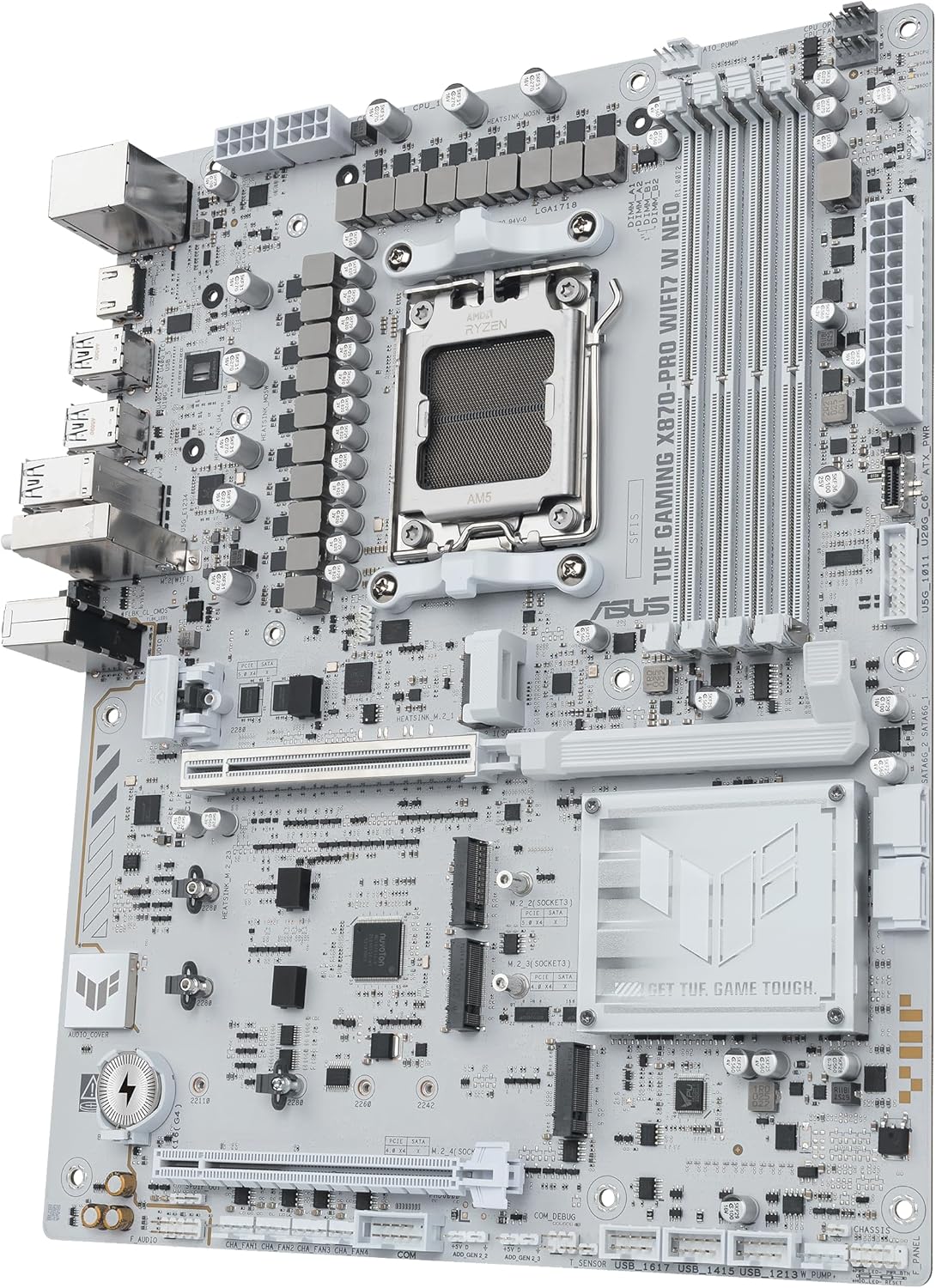

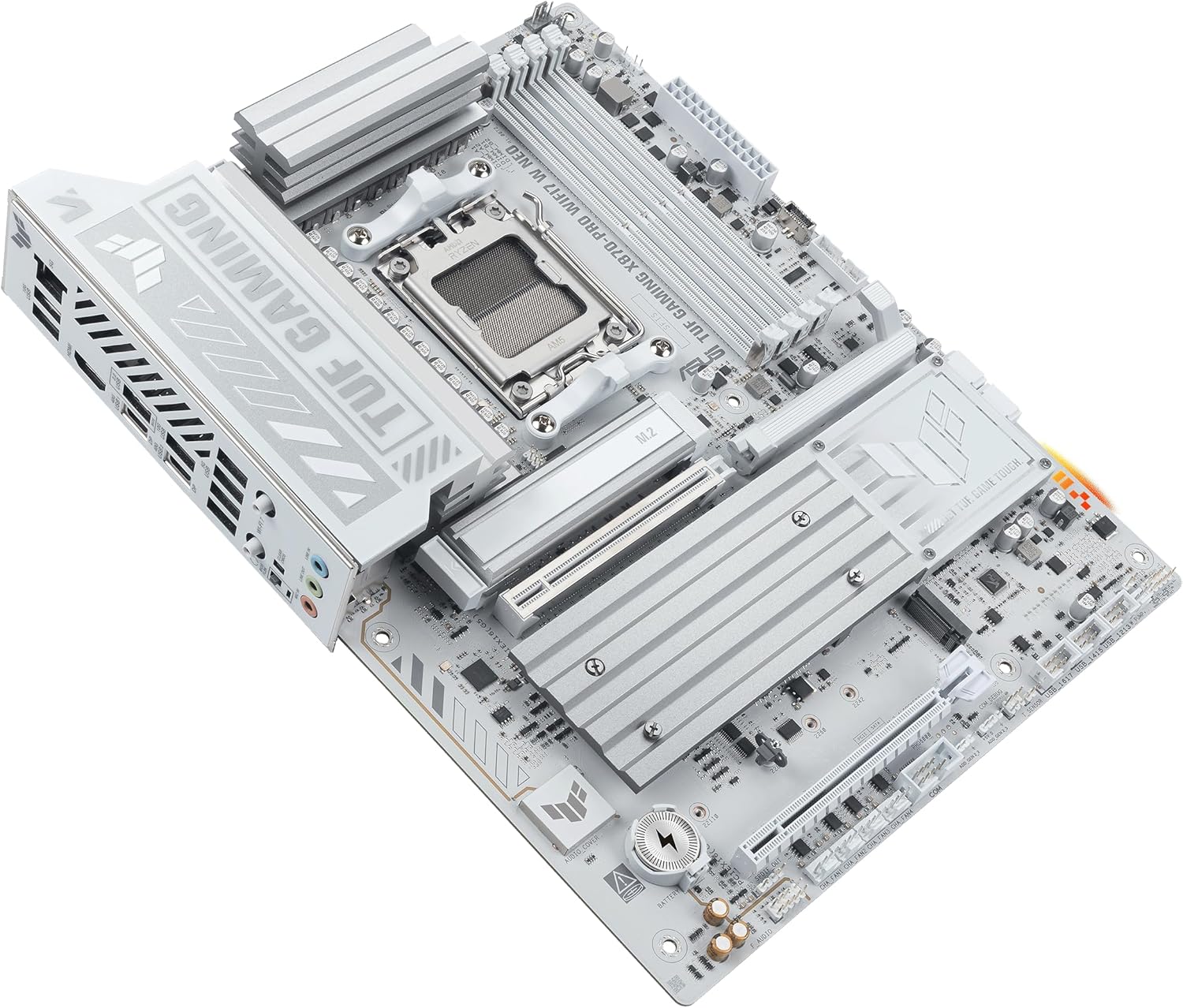

ASUS TUF Gaming X870-PRO WIFI7 W NEO AMD ATX Motherboard, 16+2+1 Power Stages, DDR5 with NitroPath DRAM Technology and AEMP, Four M.2 Slots, PCIe® 5.0 for Next-gen GPUs, 5Gb Ethernet and 64MB BIOS
Product details
| Management number | 215158908 | Release Date | 2026/04/12 | List Price | $144.00 | Model Number | 215158908 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
ASUS TUF GAMING X870-PRO WIFI7 W NEO AMD ATX motherboard delivers 16+2+1 power stages, DDR5 with NitroPath DRAM Technology and AEMP, PCIe 5.0 support for next-gen GPUs, four M.2 slots, advanced AI tuning technologies, WiFi 7, 5Gb Ethernet, and a 64MB BIOS for stability and performance.
- Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors.
- Exclusive AI Technologies: AI Cache Boost, ASUS AI Advisor, AI Overclocking, AI Cooling II and AI Networking II for intelligent control.
- Robust Power Solution: 16(80A)+2(80A)+1(80A) SPS power stage, 8-layer PCB, 8+8 pin ProCool power connectors for stable power delivery.
- Asynchronous Clock: Greater CPU potential and stability for overclocking.
- PCIe Lane Optimization: The full bandwidth of the PCIe 5.0 x16 slot and two PCIe 5.0 M.2 slots while the USB4 (40Gbps) ports are not used.
- Latest M.2 Support: Two onboard PCIe 5.0 M.2 slots, and two PCIe 4.0 M.2 slots.

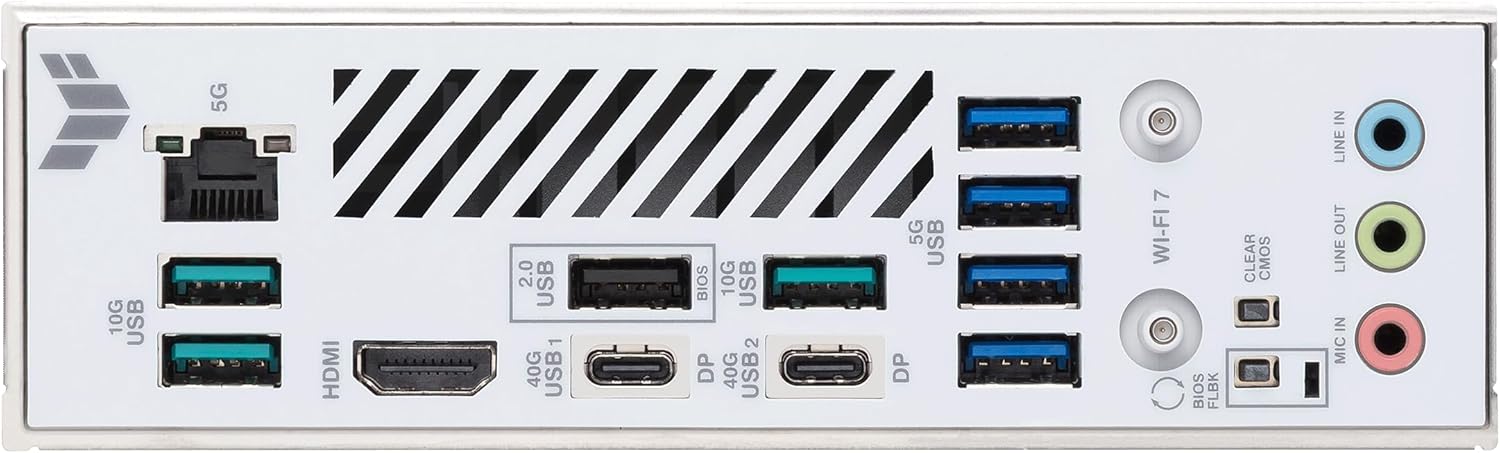

- Abundant Connectivity: USB4 (40Gbps) ports, USB 20Gbps Type-C connector with up to 30W PD Fast-charge, three USB 2.0 headers.
- Ultrafast Networking: WiFi 7 with pre-installed WiFi driver and 5Gb Ethernet.
- DIY Friendly Design: M.2 Q-Release, M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Clear CMOS button, BIOS FlashBack button. Renowned Software: 64MB BIOS and intuitive UEFI BIOS dashboard, ASUS MB Manager, ASUS DriverHub, TurboV Core, ASUS GlideX, Norton 360 for Gamers (60-day free trial) and Adobe Creative Cloud (one-month free trial).
| UPC | 199291425248 |
|---|---|
| Brand | ASUS |
| Platform | Windows 11 |
| Model Name | TUF GAMING X870-PRO WIFI7 W NEO |
| Item Weight | 4.7 Pounds |
| Chipset Type | AMD X870 |
| Manufacturer | ASUS |
| Model Number | TUF GAMING X870-PRO WIFI7 W NEO |

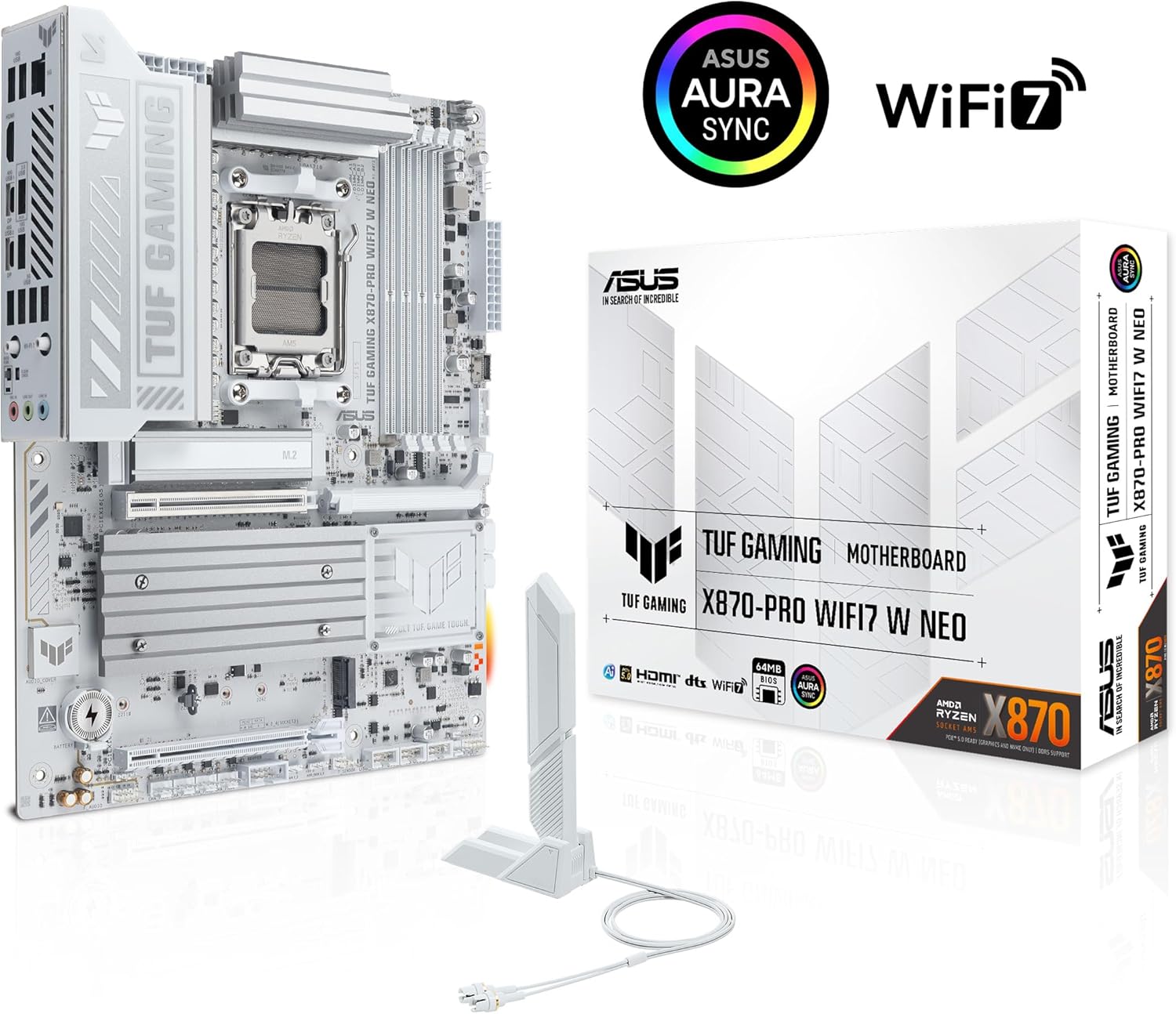

| BuiltIn Media | 1 x ASUS WiFi Q-Antenna, 1 x Quick start guide, 1 x Screw package for M.2 SSD, 1 x TUF Gaming sticker, 1x TUF GAMING X870-PRO WIFI7 W NEO Motherboard, 2 x M.2 rubber packages, 2 x SATA 6Gb/s cables |
| Number of Ports | 25 |
| Total Usb Ports | 19 |
| Processor Socket | Socket AM5 |
| Total PCIe Ports | 2 |
| Total SATA Ports | 2 |
| Compatible Devices | Personal Computer |
| Warranty Description | 3 Years |
| Compatible Processors | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| RAM Memory Technology | DDR5 |
| Memory Slots Available | 4 |
| Graphics Card Interface | PCI Express |
| Memory Storage Capacity | 256 GB |
| Ram Memory Maximum Size | 256 GB |
| Number of Ethernet Ports | 1 |
| Item Dimensions L x W x H | 12"L x 9.6"W x 1.5"H |
| Main Power Connector Type | 24-Pin |
| Total Number of HDMI Ports | 1 |
| System Bus Standard Supported | Serial ATA/600 |
