Aluminum Radiator For 1993-2002 Chevy Camaro Pontiac Firebird Trans Am 94 95 96 97 98 99 01 3 Row Core Shroud Fans Relay Radiators
Product details
| Management number | 214056896 | Release Date | 2026/04/12 | List Price | $101.60 | Model Number | 214056896 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Fitment: For Chevy Camaro 5.7l V8 1993-2002 For Pontiac Firebird/trans Am 5.7l V8 1993-2002 Package Include: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 16" Fans (Includes mounting kits) 1 X Thermostat Relay Kit Radiator Details: 3 Rows Core Radiator Flow: Cross Flow Trans Cooler: Yes Mounting Type: Pin Mount OEM Style Brass Petcoke Drain CNC Machined Filler Neck And Cap Aircraft 5057 Grade Aluminum And With Raw Aluminum Finish Features:100% Leak Tested, 3 Rows, Crossflow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation Mounting Style:Bolt-On Part Number: 2365,SBR2365,1486,CC2365,CU2365,PR2365A,CU2471,2939,DPI2365 AE2365,EC2365,KKS2365,SPTCU2365,TYC2365,Q2365 1605-370166,1605-370138,2365,4-0693,B2471 RA2365 RK2365, SC2365 REA412365A, 1486, 8012365, 2784, RA1114 FAN SPEC: Maximum Fan CFM: 2000±200 Fan Diameter (in): 16.050 inches Thickness (in): 2.790 inches Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Relay Kit Instructions: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Thermostat Relay Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. Probe typically threads into radiator, water outlet or manifold.
- Core Size : 24.88" H x 17.25" W x 1.73" T ; Overall Size : 30.32" H x 20.28" W x 7.29" T ; Hose Locations: IN: 1.26" Passenger / OUT: 1.38" Driver ; Trans Cooler : ￠26×292×M12×1.25（Z）
- Features: 100% Leak Tested, 3 Rows, Crossflow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation

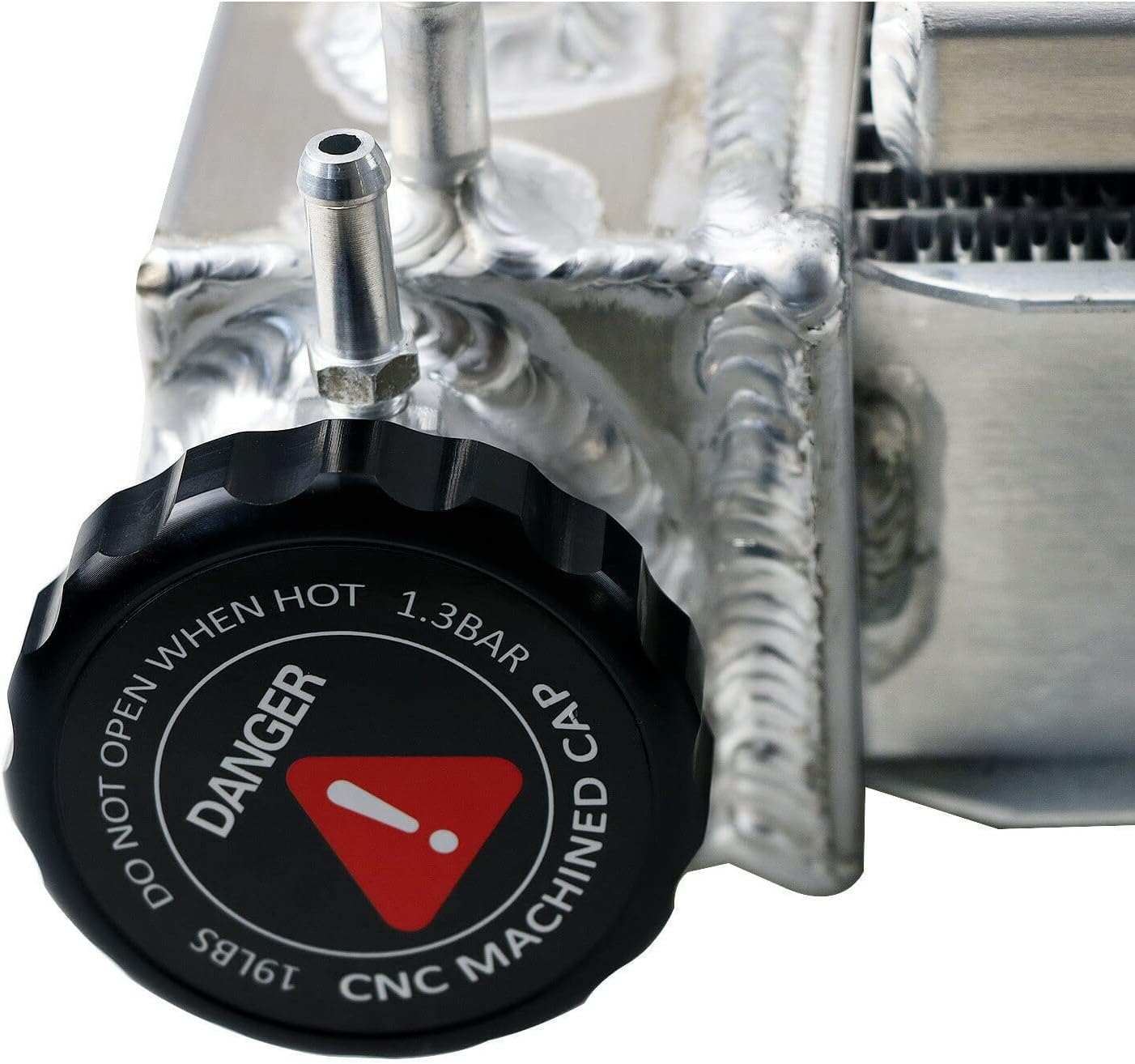

- CNC machined filler neck and cap ; OEM style brass petcock drain
- All-aluminum design with durable TIG-welded construction (AA5052 aircraft aluminum)
- 12 Months warranty ; If you have any questions, please feel free to contact us, we will solve it for you
| Brand | RadRace |
|---|---|
| Model | For Chevy Camaro Pontiac Firebird Trans Am 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 |
| Item Weight | 23.9 pounds |
| Manufacturer | MotorPartsZone |
| OEM Part Number | 2365,SBR2365,1486,CC2365,CU2365,PR2365A,CU2471,2939,DPI2365,AE2365,EC2365,KKS2365,SPTCU2365,TYC2365,Q2365,1605-370166,1605-370138,2365,4-0693,B2471,RA2365 RK2365, SC2365 REA412365A, 1486, 8012365, 2784, RA1114 |
| Item model number | 3 Row Core Shroud Fans Relay Radiators |
| Package Dimensions | 33 x 23 x 8.5 inches |
| Manufacturer Part Number | MotorPartsZone951 |
