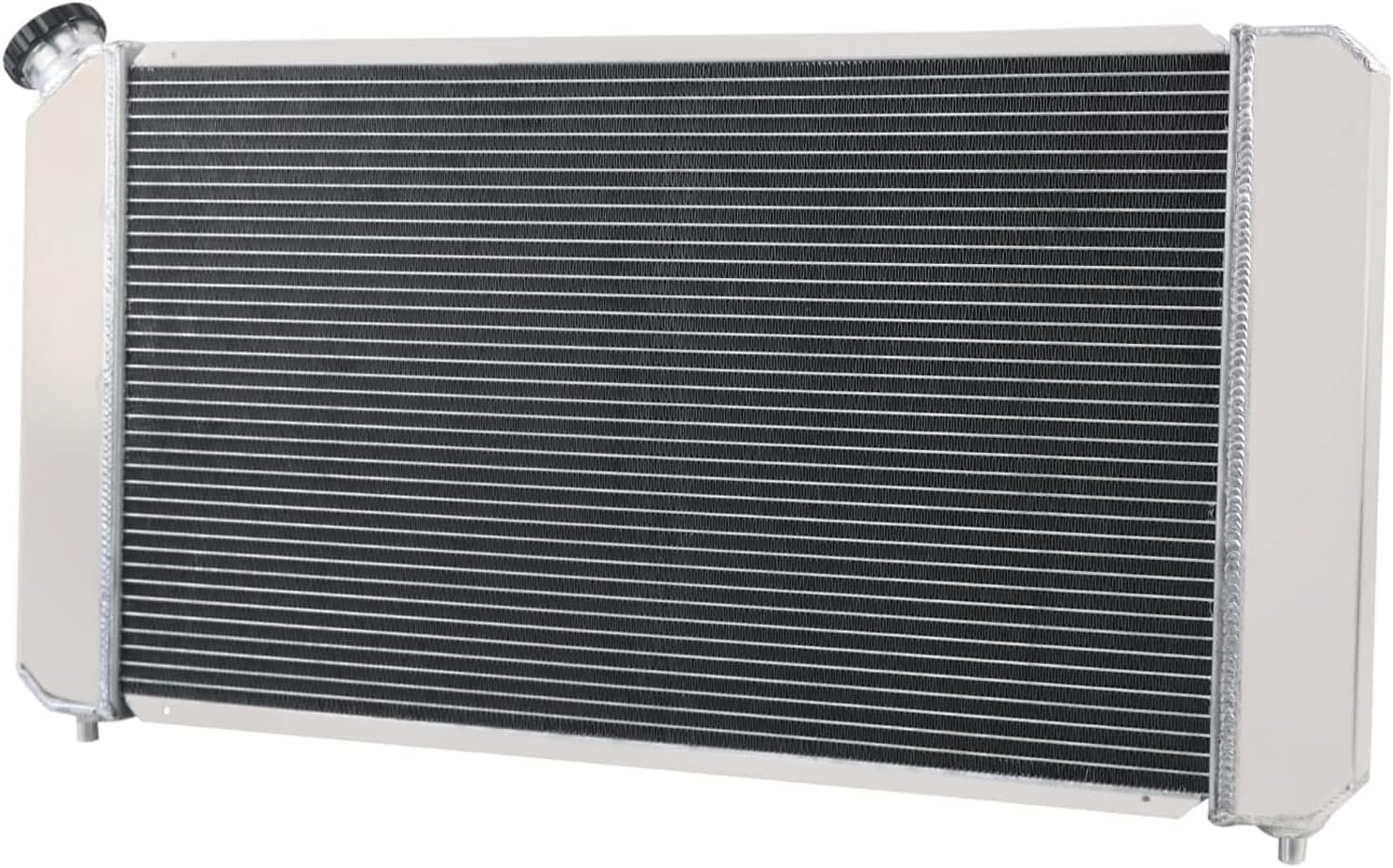

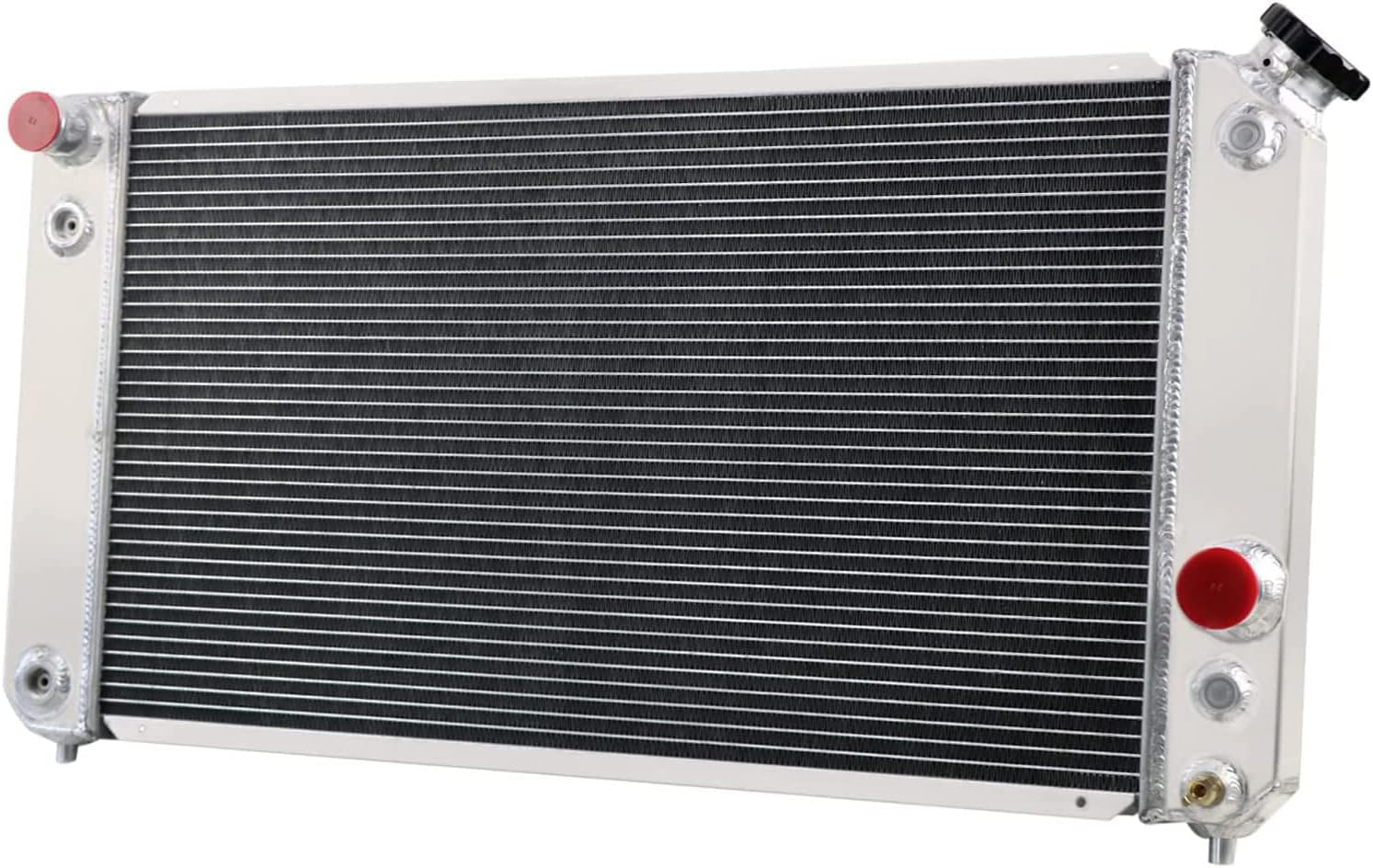

All Aluminum Radiator for 1996-2005 Chevy S10 Blazer C1500 Truck GMC Sonoma Jimmy Isuzu Hombre Oldsmobile Bravada V8 V6 97 98 99 01 02 03 04 05, 3 Row Radiators Shroud Fans Relay

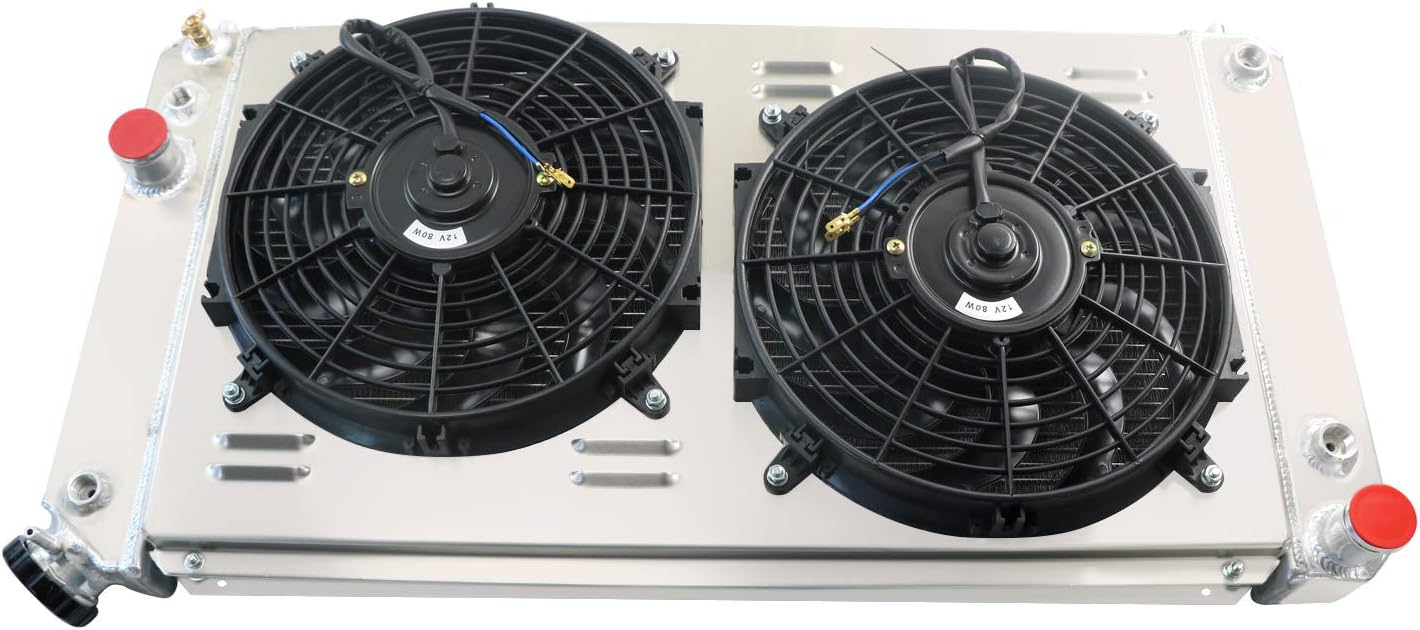

THIS LISTING INCLUDING THE RADIATOR AND SHROUD AND 2X12" FANS!!!Radiator Size: Row: 3 Row Core Material: Full Aluminium Radiator Cap: included Core and Tank: All Aluminum Core Size : 26.3" H x 14.88" W x 1.73" T ; Overall Size : 32.48" H x 16.93" W x 5.51" T Inlet/Outlet : 1.5"/1.38" ; trans Cooler : Φ26*290*3/8-18NPT（Z） ; Oil Cooler : Φ26*290*M20*1.5（Z） Trans Cooler Included: 1/2"" 20 STRAIGHT THREAD G1/4Mount Type: PinTransmission: Automatic and Manual.Please Check the Size Before You Buy!Vehicle Fitment:Compatible For 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 Chevrolet Blazer S10 Truck Pickup Blazer 4.3L V6 Compatible For 1996 1997 1998 1999 2000 2001 Oldsmobile Bravada Compatible For 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 GMC JimmyCompatible For Chevrolet Blazer GMC S/T Series Pickups Compatible For 2000 2001 2002 2003 2004 GMC Sonoma FANS:Maximum Fan CFM: 2300±200 cfm Fan Diameter (in): 12.050" Thickness (in): 2.500" Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This set up will run Fans and pull air in through radiator. Why Choose Cubauto Radiator? 1. Covers vast selection of import and domestic applications 2. Stringently tested to guarantee optimum performance and dependability 3. Straightforward installation guaranteed 4. Carefully crafted to exceptional OE standards for precise fit,Aircraft AA5052 grade aluminum and with raw aluminum finish 5. Made from high-grade materials for prolonged lifespan 6. CNC machined filler neck and cap

• ★Core Size : 26.3" H x 14.88" W x 1.73" T ; Overall Size : 32.48" H x 16.93" W x 5.51" T ;Compatible with 1996-2005 Chevy Blazer S10 Pickup Truck GMC V8 V6
• ★Inlet/Outlet : 1.5"/1.38" ; trans Cooler : Φ26*290*3/8-18NPT（Z） ; Oil Cooler : Φ26*290*M20*1.5（Z）
• ★Full aviation-aluminum craftsmanship, 100% welded by TIG; Racing design/improves cooling by 35 -45% temp
• ★100% Leak Tested, 3 Rows, Downflow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation
• ★If you have any questions, please feel free to contact us, Cubauto will try our best to help you.Do not hesitate to get one!
