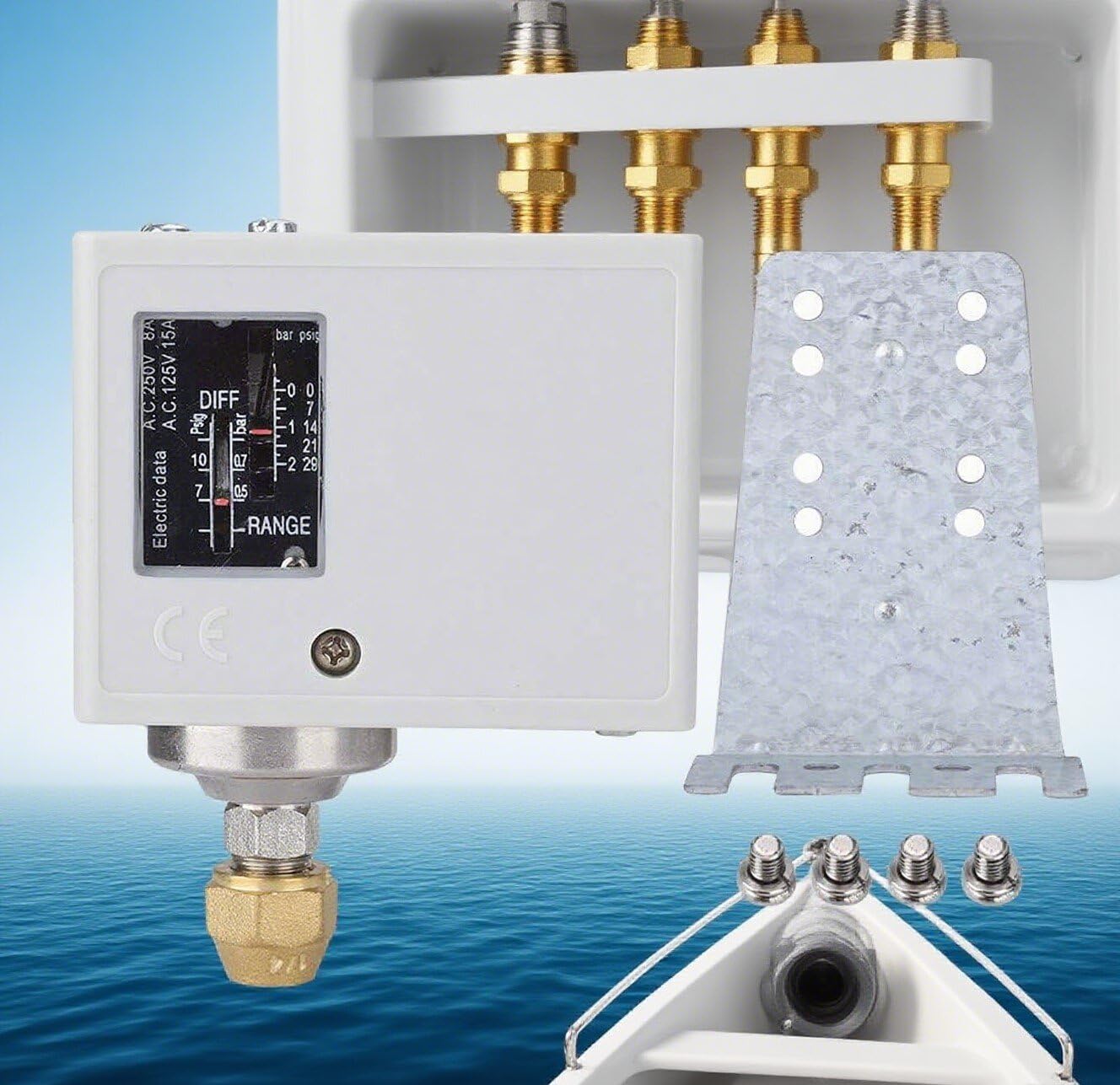

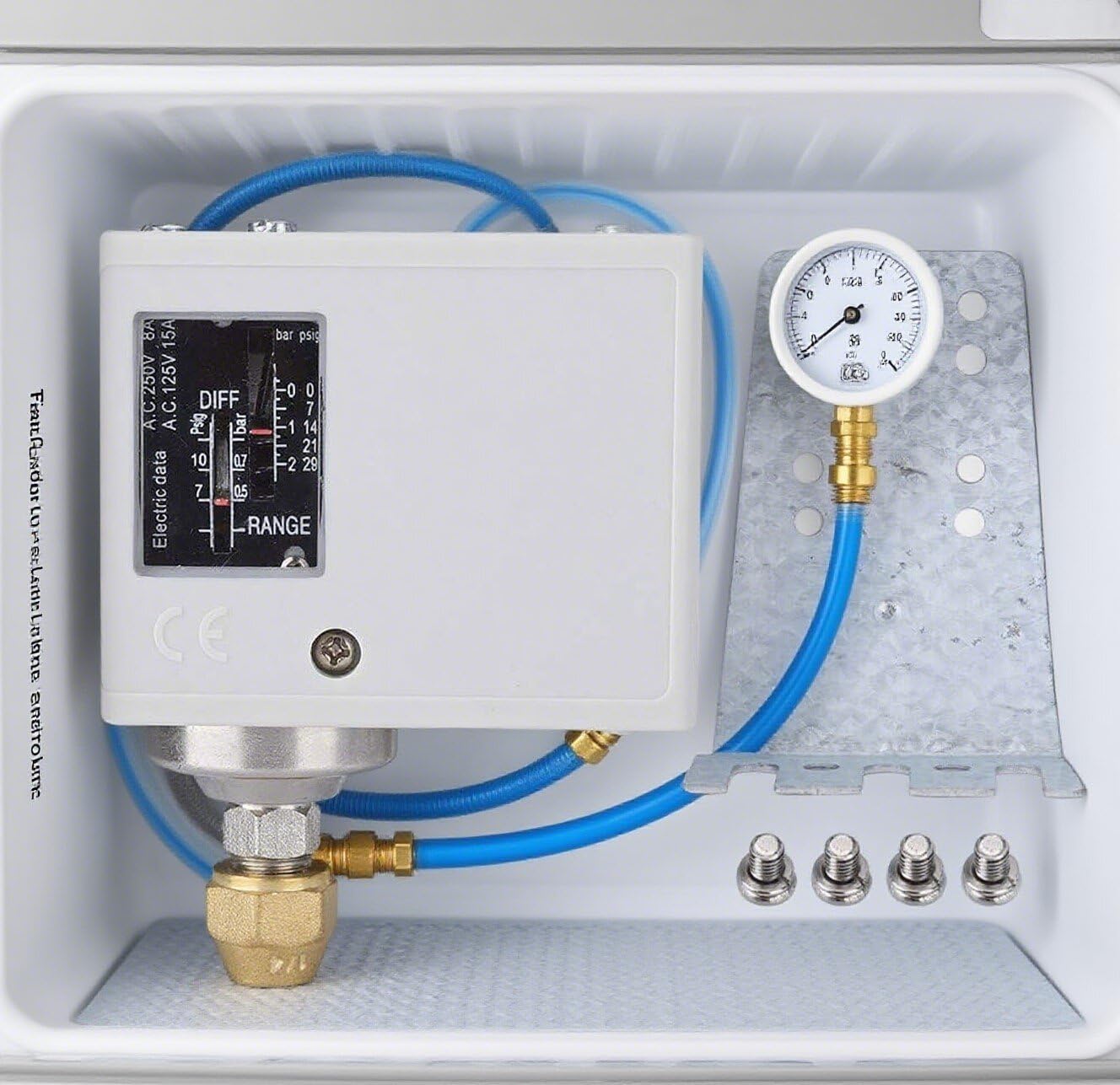

Air Water Compressor, Water Pump Pressure Control Switch Electronic Pressure Controller Control Steam Boiler Pressure Switch Single Refrigeration/Air Water Pump Compressor Pressure Switch Box

Specification:Non-inductive current :20A, full load current :15A, and instantaneous current :72A;When rated voltage is 125VAC,Non-inductive current: 10A, full load current: 8A, and instantaneous current: 72A;When rated voltage is 250VACThread: G threadPressure regulating range (bar) : -0.5 (Min) ~2 (Max)Differential pressure adjustment range (bar) : 0.2 (Min) ~0.7 (Max)Maximum air tightness test (bar) : 16.5Power supply voltage: 24V~380VLife of micro switch: 100,000 timesWeight: Approx.397g/14ozRefrigerant: air, liquid and other non - corrosive mediaScope of application: control the pressure difference between liquid pipe and return pipe in water and oil series (air conditioning and other specific places)Package list:1 x Pressure Controller1 x Install bracket1 x instructions4 x Screw

• The pressure switch is made of high-quality materials, which are strong, impact-resistant, wear-resistant and have a long service life.
• SPC series pressure controllers are used for high and low pressure limit control of refrigeration equipment or automatic system air conditioning equipment.
• It is suitable for non-corrosive media such as air and liquid, and is suitable for refrigeration equipment, boiler equipment, air compressors, and HVAC equipment.
• SPDT switches ensure reliable touchpoint switching and provide standard mounting brackets for easy installation and long-term use.
• The pressure bellows of the standard model are phosphor copper bellows and the pressure connections are brass. The bellows and pressure connections of the ammonia refrigerant model are stainless steel
