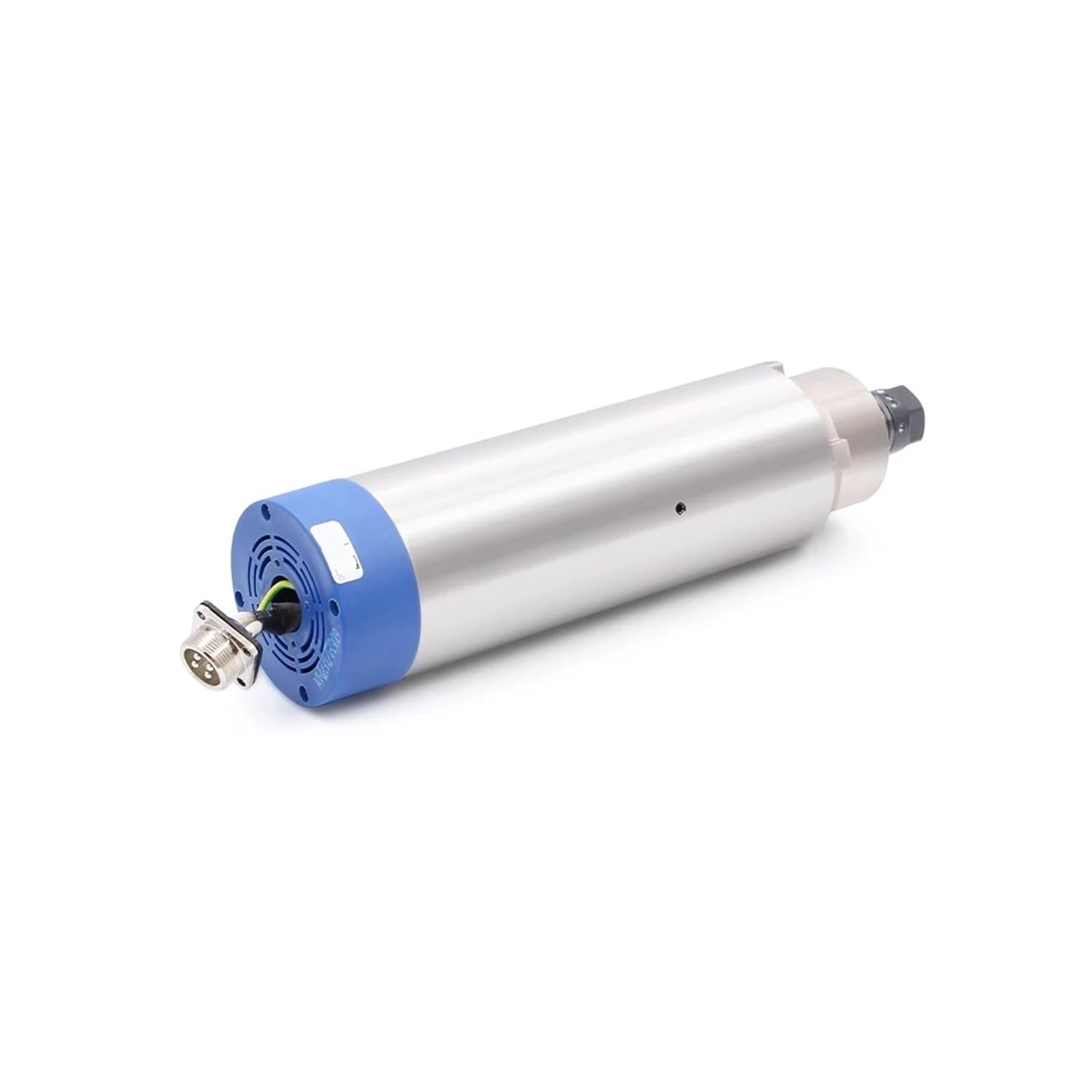

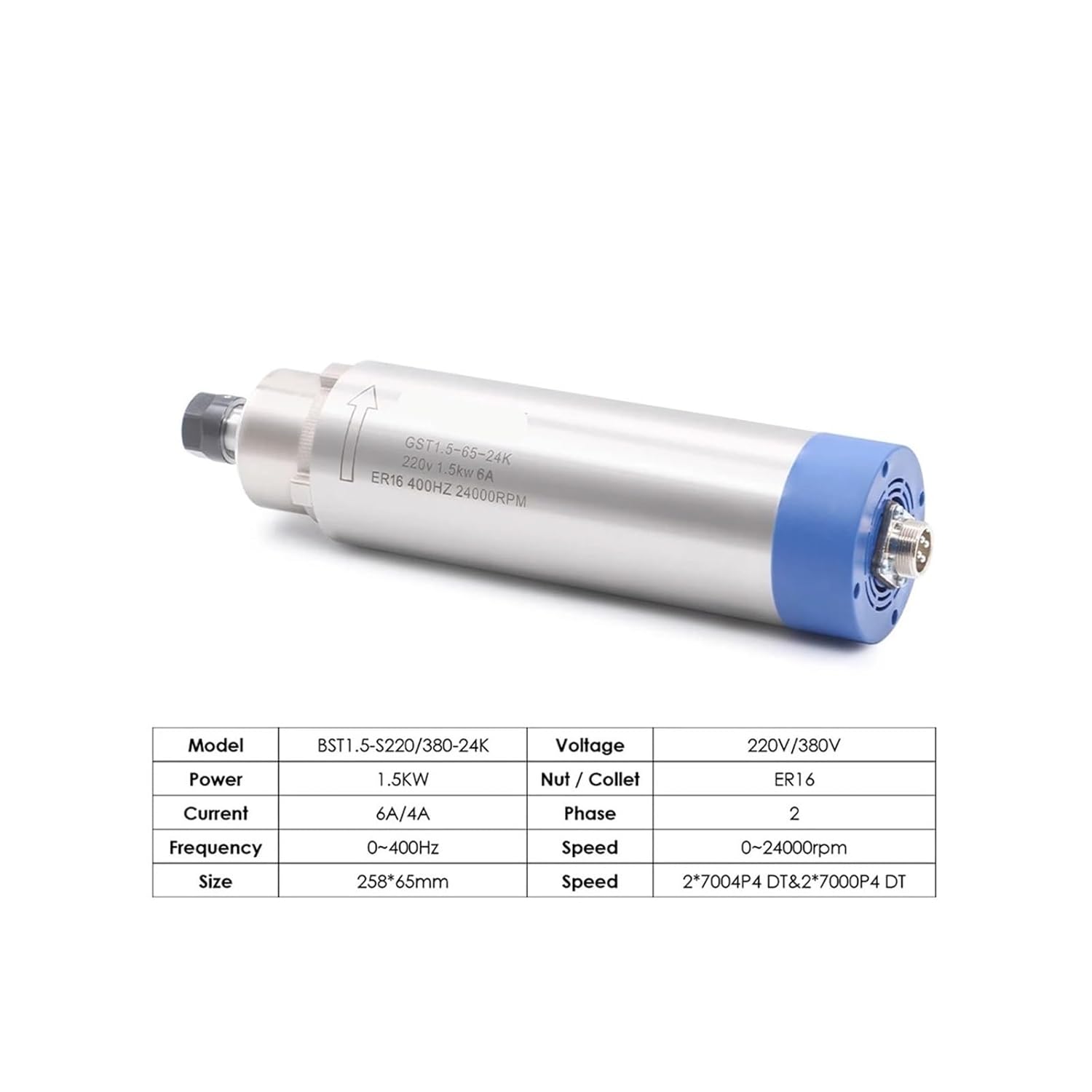

Air-Cooled Spindle Motor 1.5k ER16 D=65mm 110v/220v Air-Cooled for Woodworking 65x258mm 4 Bearings(110V)
Product details
| Management number | 213597303 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 213597303 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Basic parameters Dimensions: 65 x 258 mm. Body Diameter: 65mm Length: 258 mm. Speed Regulation Mode: Through the three-phase output frequency converter, adjust the frequency converter to change the spindle speed. Cooling method: air cooled Power: 1.5 kW (1HP = 0.735 kw). Voltage: 110V/220V/380V Frequency: 0-400Hz Speed: 0-24000rpm Deviation: 0.01mm 4 x Complete P4 Angular Contact Ball Bearings Bearing type: 2 x 7004P4 DT & 2 7000P4 DT Air-cooled ER16 clamp block Milling pin part diameter 10mm, 9mm, 8mm, 7mm, 635mm, 5mm, 4mm, 3.17mm, 3.0mm, 2.0mm, 1.0mm ========== Certification: CE Driving: electric motor. Maximum torque: 0.32 Nm Working speed: 15000-24000rpm Model: 1.5w ER16 D65 Application: Milling Size: 65 x 258 mm (65 mm diameter). Voltage: 220V/380V Current 6A/4A. Power: 1.5 kW Cooling: air cooled. Bearing type: 2x7004P4 DT and 2x7000P4 DT Clamp: ER16 Frequency: 400 Hz Lubrication: Grease Nozzle range: 1-7mm (including 1/8.1/4)
- Stability: can be used stably for a long time
- Design: robust design, easy to maintain
- Easy to install: simple operation, easy to install
- Application scenario: widely used in many industrial environments
- Correct use: correct use can extend the life of the product
| Model | KACOME |
|---|---|
| Brand Name | KACOME |
| Model Name | KACOME |
| Unit Count | 1.0 Count |
| Manufacturer | KACOME |
