Adviace Replacement 812-3381 Exhaust Combustion Blower Motor & SRV230-1290 High Limit Switch for Quadrafire Classic Bay CB1200i Insert Pellet Stoves and Heatilator Eco Choice CAB50, PS50 Pellet Stove.
Product details
| Management number | 212095759 | Release Date | 2026/04/06 | List Price | $37.98 | Model Number | 212095759 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
-Replacement aftermarket exhaust / combustion blower parts for Quadra-Fire and Heatilator Eco-Choice pellet stoves. Comes complete with blower motor only, the motor gasket and impeller. Fits the following pellet stove models:Quadra-Fire Pellet Stoves: classic bay 1200iCB1200 pellet stoveCB1200i insert.Fits Heatilator Eco Choice Pellet Stoves: CAB50PS50
- ✅Fits Quadra-Fire Pellet Stoves Models: Classic Bay 1200i, CB1200 pellet stove, CB1200i insert. ✅Fits Heatilator Eco-Choice Pellet Stoves Models: PS50, CAB50. ✅Replacement For Part Numbers: 812-3381, SRV230-1290, 812-3650, PP3245.
- ➤SRV230-1290 High Limit Switch - Quadrafire's snap disc #3 is always mounted on the backside of the feed tube, directly in line with the opening of the drop chute. To access this switch, remove the feed motor cover box from inside the hopper on the CB1200 or access it through the right-side panel of all other Quadrafire stoves and inserts.

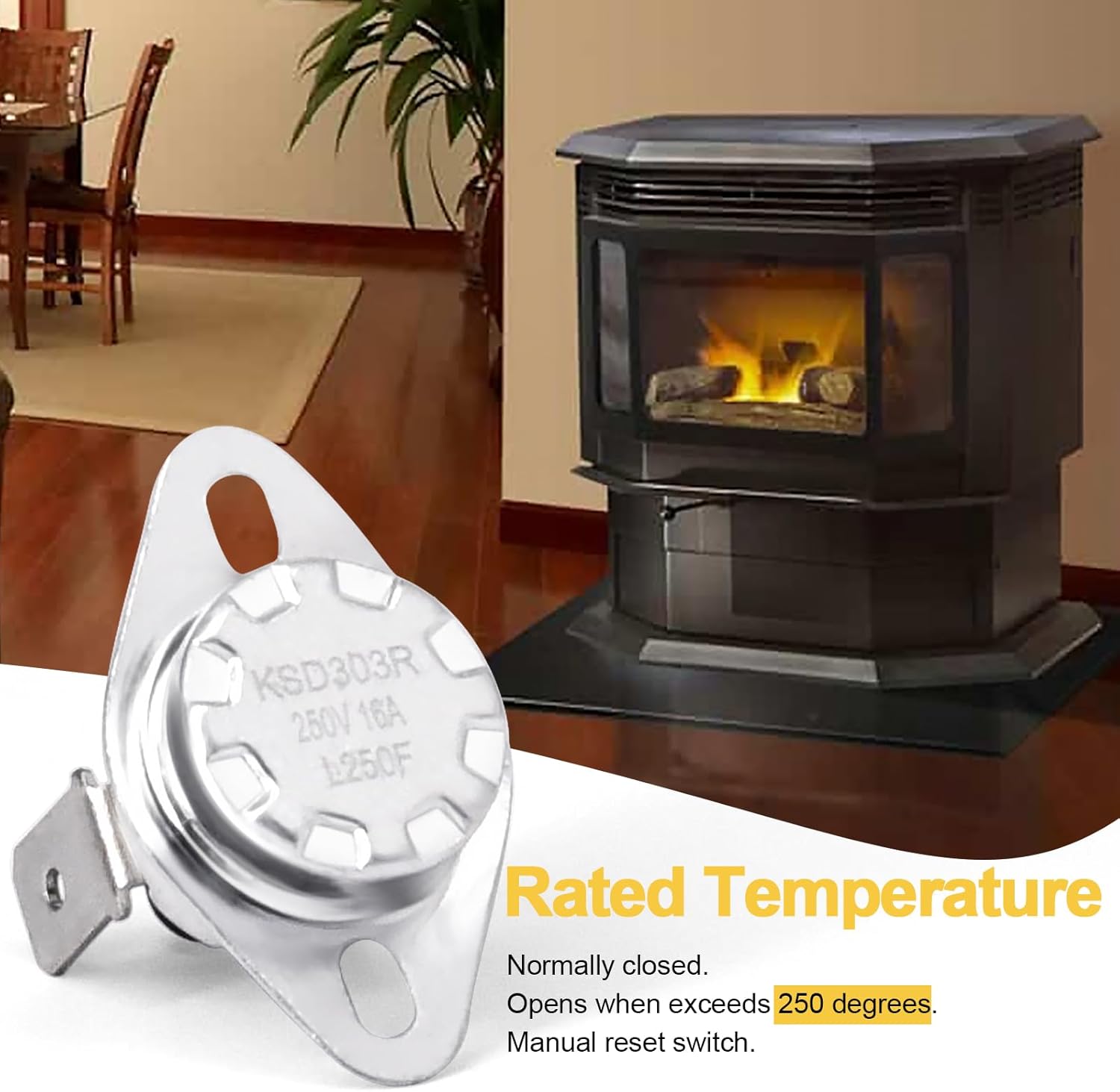

- ➤Rated Temperature - 250 Degree Fahrenheit. Normally closed - Opens when exceeds 250 degrees. Manual reset switch. If the fire tries to burn back into the feed system or push exhaust up the feed tube, this snap disc will detect the heat rise above 250°F and open the main power circuit, killing the power to the entire stove. This switch must be manually reset to restore power and resume operation. There is a reset button between the two wires attached to the switch.

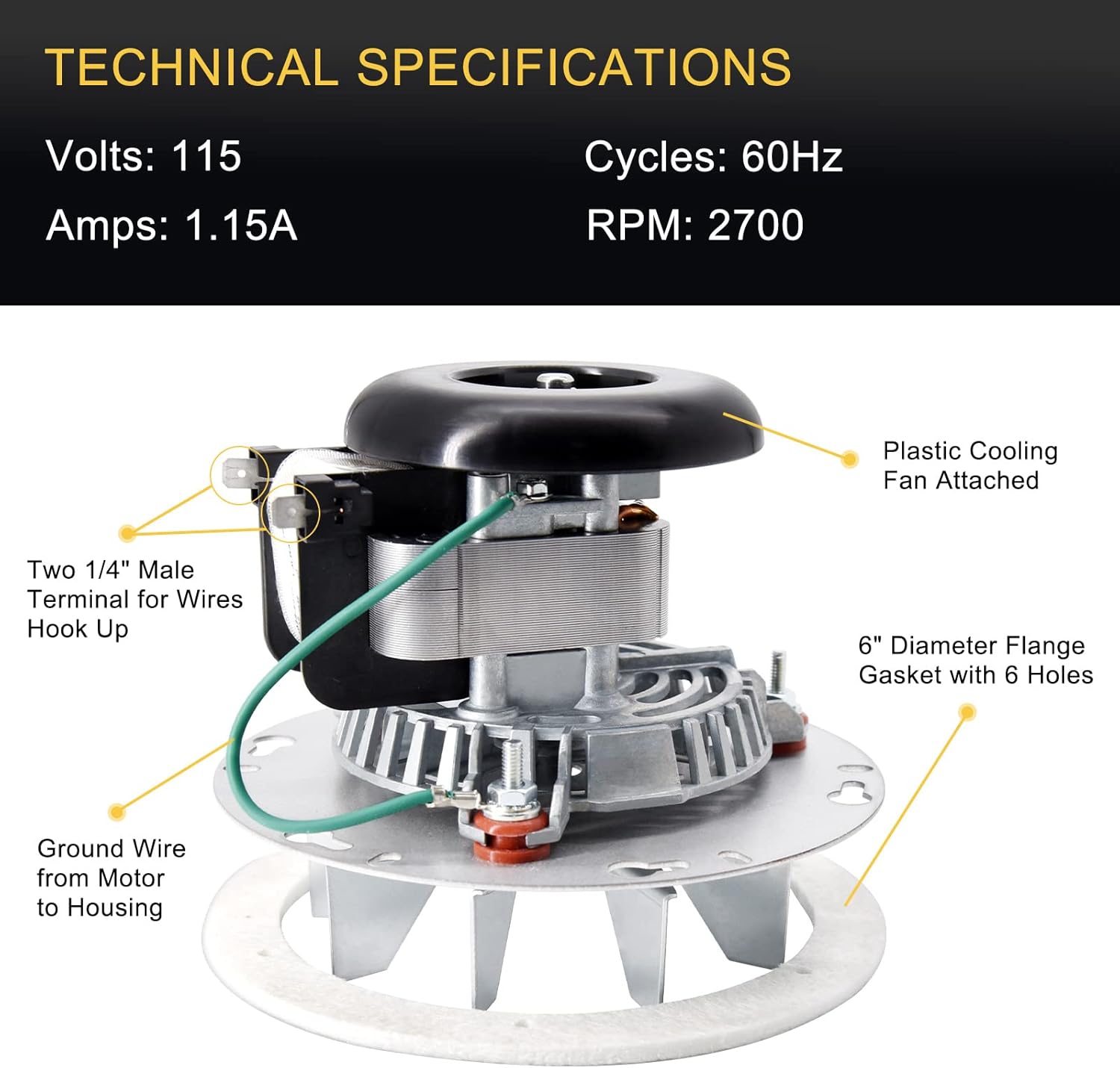

- ➤Blower Technical Specs - Volts: 115, Cycles: 60Hz, Amps: 1.15A, RPM: 2700. Two 1/4" Male Terminal for Wires Hook Up. Ground Wire from Motor to Housing. Flange Gasket Included, 6" Diameter with 6 Holes. 9 Fin High Rise Impeller, 4-1/2" Diameter x 1-1/8" Tall.

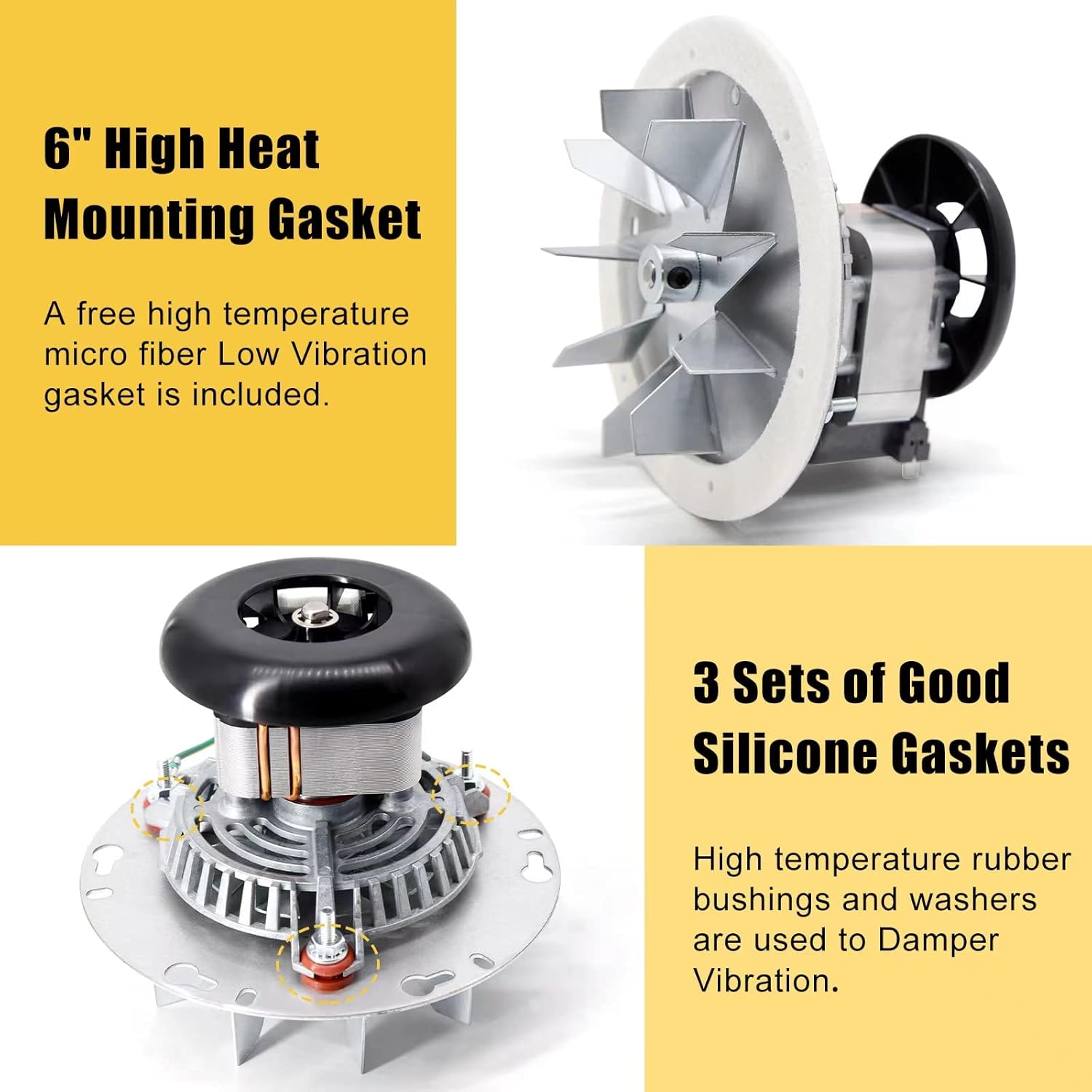

- ➤Ultra Quiet Engineering - The bearing type of this aftermarket Quadrafire Pellet Exhaust Combustion Blower 812-3381 is 100% Sealed Lubricated Bearings, which is very smooth and Quiet with Low Vibration, you won’t know your stove is on. Also Come with a good silicone/neoprene gasket and 6" round high heat mounting gasket, they are used to Damper Vibration.
| Voltage | 115 Volts |
|---|---|
| Brand Name | Adviace |
