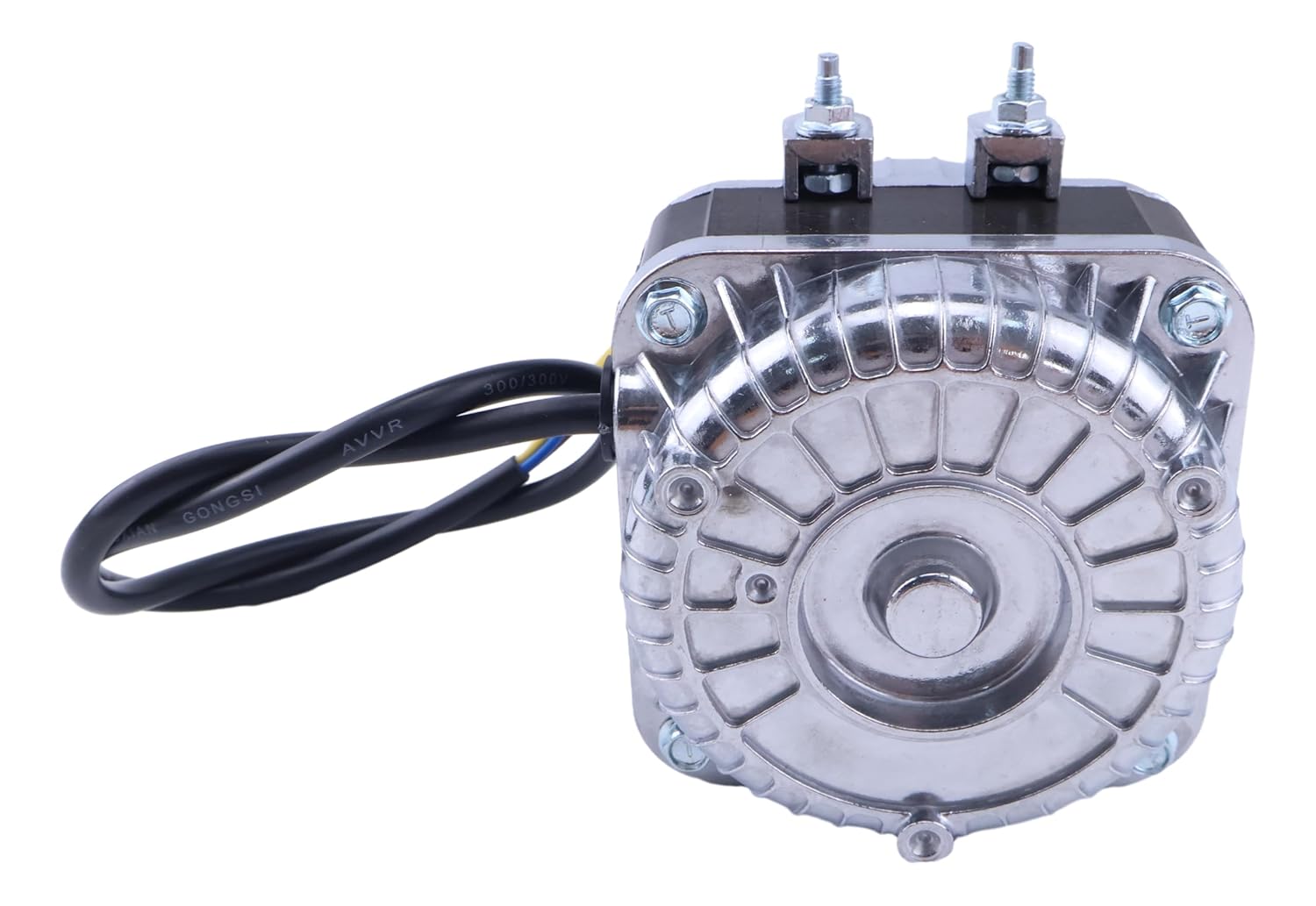

AC Fan Motor 120V 60Hz 1.01A 18W Condenser Shaded Pole Motor YZF18-25 Replace YZF10-20 YZF6-13 W0301905

Shaded Pole MotorPart number: YZF18-25Fit Models: Replaces the AC Fan Motor of Some Radiator, Evaporator, Condenser and Other Refrigeration Equipment Specs:Rated voltage: AC 120 VoltsOperating frequency: 60HzInput power: 70 WattsOutput power:18 WattsRated current:1.01 AmpereOutput shaft speed: 1550rpm/minMotor thermal protection:257℉±41℉ , built-inMotor winding temperature rise: ≤95KInsulation voltage(HI-POT TEST): 1800V/1sRotation(Looking towards the shaft):CCWMounting type:Horizontal or VerticalApplicable ambient temperature for the motor: -13°F to 122°FBearings: Sleeve bearingsWeight per unit:1.3KgPacking: 1PCS/CTNPackage includes: 1 x AC Fan Shaded Pole Motor as pictures shown

• Part number: YZF18-25; Single phase 4-pole shaded pole motor,120V 60HZ 1550r/min,Input power 70W, output power 18W, rated air volume 940m3/h
• The AC Fan motor has a built-in thermal protector and the protection disconnection temperature is 257℉; Applicable ambient temperature for the motor: -13°F to 122°F,used onsmall ventilation equipment, refrigeration equipment such as radiator evaporator
• Before operating the motor, make sure to effectively connect the external grounding device to the outer casing of the motor. The external ground wire may be connected to the bolts of the motor, or the motor casing may be connected to the external grounding device through the conductive metal
• Package includes: 1 x AC Fan Shaded Pole Motor as pictures shown
