90 PCS Lever Wire Connectors Kit Compact Splicing Wire Connectors Fast Connection Terminal Electrical Connectors 2/3/5 Conductor Assortment Kit for Quick Connect 28-12 AWG
Product details
| Management number | 218918093 | Release Date | 2026/05/03 | List Price | $8.00 | Model Number | 218918093 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Wire Cross section: 0.08~4.0mm²/28-12AWG(solid), 0.08~4mm²/28-14AWG(stranded)Shell Material: Modified nylon(PA66)Guide Strip: Electrolytic copper (Surface tin plating)Spring: Nickel chromium alloy steelProduct Size:(5 Conductor) 27(L)*21.3(W)*14.5(H)mm,(3 Conductor) 17.5(L)*21.3(W)*14.5(H)mm,(2 Conductor) 12.5(L)*21.3(W)*14.5(H)mmMaximum Operating Temperature: 105℃Rated Voltage: 250V/4KVRated Current: 32APackage include:PCT-215 (30 Pack),PCT-213 (30 Pack),PCT-212 (30 Pack)HOW TO USEStrip wire lead to 9-10mm, open clamping unit and insert your wire lead, lower lever to close the clamp.It is made of nylon PA66 modified with high quality flame retardant insulation material, which has the advantages of long life, corrosion resistance, aging resistance, high pressure resistance, insulation and flame retardant.It is widely used in building wiring, household appliances, lighting, machinery and other wire connecting parts, where space is very valuable for all required connections.
- 【Safety Material】It is made of nylon PA66 modified with high quality flame retardant insulation material, guide strip is electrolytic copper (surface tin plating); Which has the advantages of long life, corrosion resistance, aging resistance, high pressure resistance , insulation and flame retardant; The lever wire connectors can be used up to an ambient temperatures of 105°C, better conductive properties.
- 【Universal compatibility】Are widely applied to connect any combination of solid, stranded, and flexible copper wires, ideal for compact and complex applications. Suitable for single strand hard wire 0.08~4mm²/28-12AWG, and the multiple strand flexible copper wire 0.08~2.5mm²/28-14AWG. They work with most every gauge of normal household wiring: sockets, switches, cars, loudspeakers, lamps, electrical boxes, chandeliers, fan controls, and much more.
- 【Reliable & Reusable】Lever wire connectors inline splices can be managed separately for different wires to avoid short circuit and fires caused by aging of the staggered band of the wires. It can be recycled several times and can be removed when not in use.

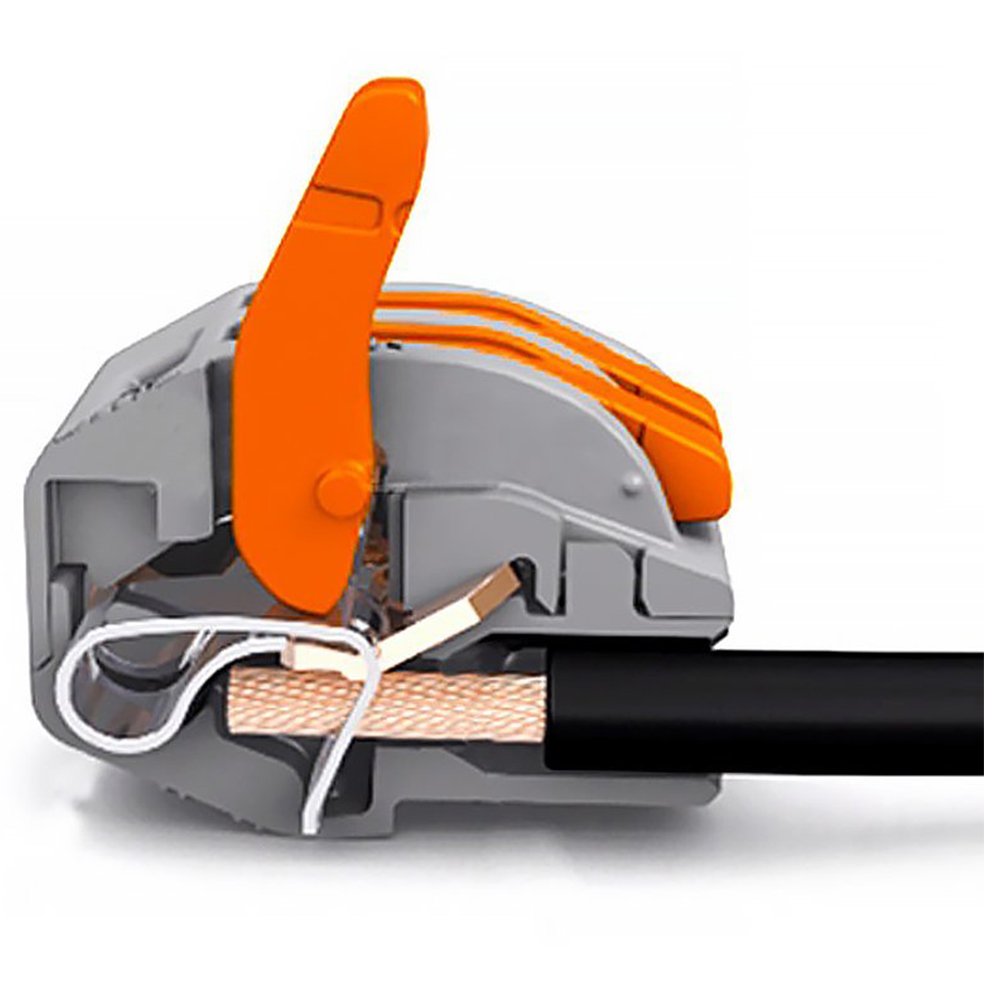

- 【Easy to operate】Strip wire lead to 9-10mm, open clamping unit and insert your wire lead, lower lever to close the clamp. Instead of traditional electrical tape and intertwined butt connectors, technological innovation reduce wiring time by 80%.

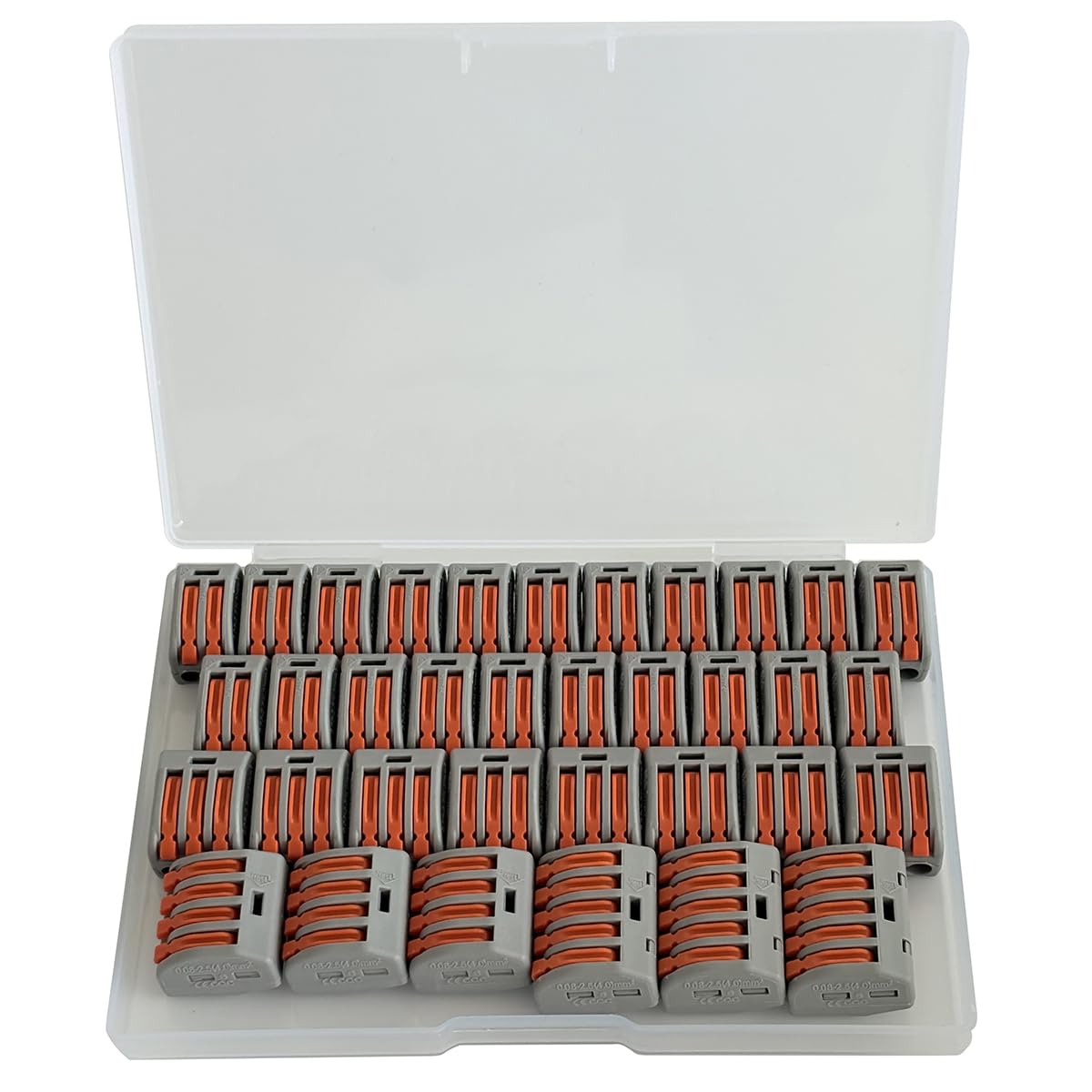

- 【Package include】PCT-215 (30 Pack), PCT-213 (30 Pack), PCT-212 (30 Pack), transparent tool box packaging.
| Color | Orange |
|---|---|
| Gauge | 12.0 |
| Model | 43216-4514 |
| Terminal | Screw Terminal |
| Brand Name | AHBLQD |
| Unit Count | 90.0 Count |
| Item Weight | 1.1 Pounds |
| Part Number | 43216-4514 |
| Manufacturer | AHBLQD |
| Material Type | Nylon |
| Connector Type | Quick Connect |
| Maximum Voltage | 250 Volts |
| Number of Items | 90 |
| Connector Gender | Male |
| Contact Material | Copper |
| Specification Met | UL |
| Temperature Rating | 105 degree celsius |
| Insulation Material Type | Polycarbonate |
| Item Dimensions L x W x H | 1.06"L x 0.84"W x 0.57"H |
| Global Trade Identification Number | 06912838894321 |
