8 Gauge 8 AWG 500 Foot Red Spool PV Photovoltaic Solar Panel Extension Cable Wire with 50 Pairs of Solar PV Connectors
Product details
| Management number | 216034963 | Release Date | 2026/04/19 | List Price | $210.74 | Model Number | 216034963 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

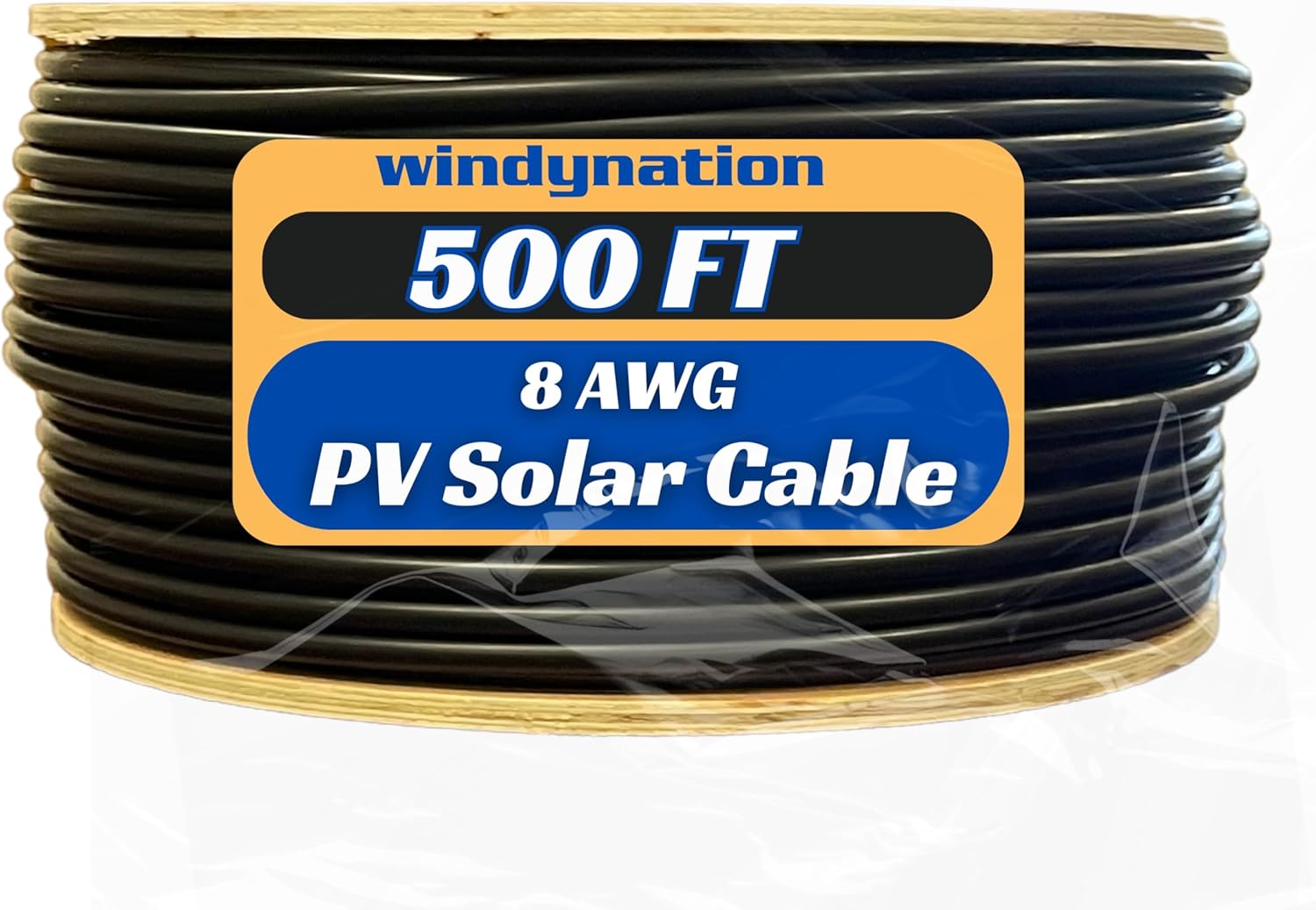

- 500 Feet of UL4703 approved PV cable on a wooden spool provides plenty of cable for large solar system installation or for contractors that use PV cable on multiple solar system installations. The 500 foot spool can be positioned on a cable rack, making it easy to remove the photovoltaic solar wire from the spool.
- UL4703 approved, 600 volt photovoltaic PV wire cable with pure copper conductors + PV Connectors.0.25mm diameter copper strands for extra flexibility (65 strands 12 AWG, 105 strands 10 AWG, 168 strands 8 AWG). Amperage ratings: 30A for 12AWG, 40A for 10AWG, 55A for 8AWG. The pure copper conductors allow for ultra-low resistance to insure maximum electrical efficiency for your solar system!
- Quick and easy connection system: Select the quantity of PV Solar Connectors (options are 10, 25, or 50 pairs) to be included with the 500 Foot PV spool. The PV Solar Connectors are compatible with all industry standard PV Connectors, making it easy to install the cable within your solar system. The PV Connectors are weatherproof and waterproof (IP67 rating) and can withstand extreme heat and cold.

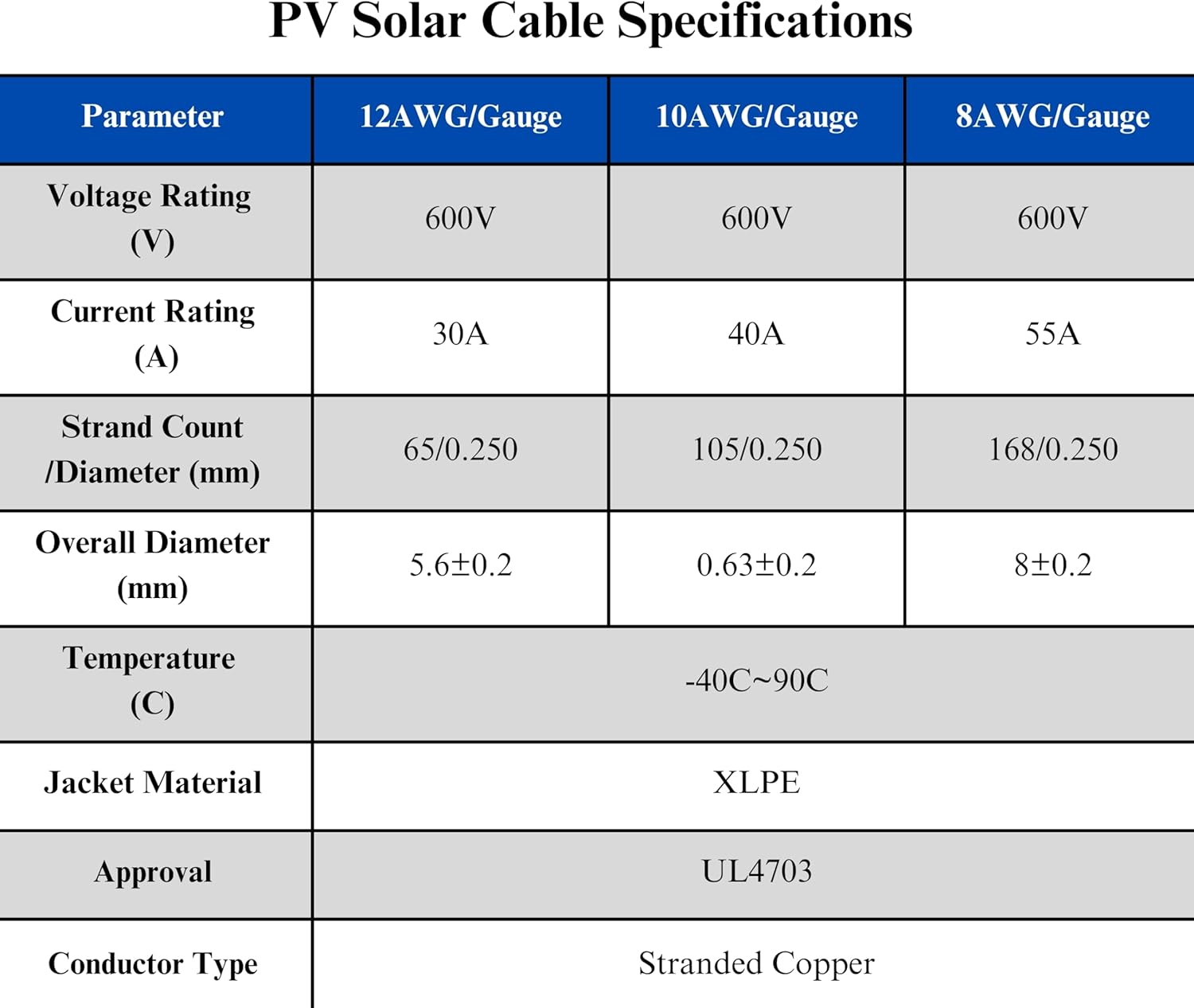

- PV solar extension cable is outdoor rated with a heavy duty, durable XLPE insulation making it resistant to heat, cold, UV sunlight, and abrasion. Operating temperature range -40C to 90C (-40F to 194F) in wet or dry conditions. UL4703 PV cable is also rated for direct burial use. See photo gallery for additional technical specifications.
- National Electric Code Approval: Photovoltaic module interconnection cable for use with or without a raceway in accordance with the Wiring Systems, Article 690 in the National Electric Code (NEC), NFPA 70.
| Brand | WindyNation |
|---|---|
| Color | Red w/ 50 Pairs of PV Connectors |
| Gauge | 8.0 |
| UL Listed | Yes |
| Item Length | 6000 Inches |
| Manufacturer | WindyNation |
| Model Number | 6fe47944-57c2-446f-8fd1-67354dddd9d5 |
| Input Current | 55 Amps |
| Connector Gender | Male-to-Female |
| Case Material Type | pv |
| Warranty Description | 1 yEAR |
