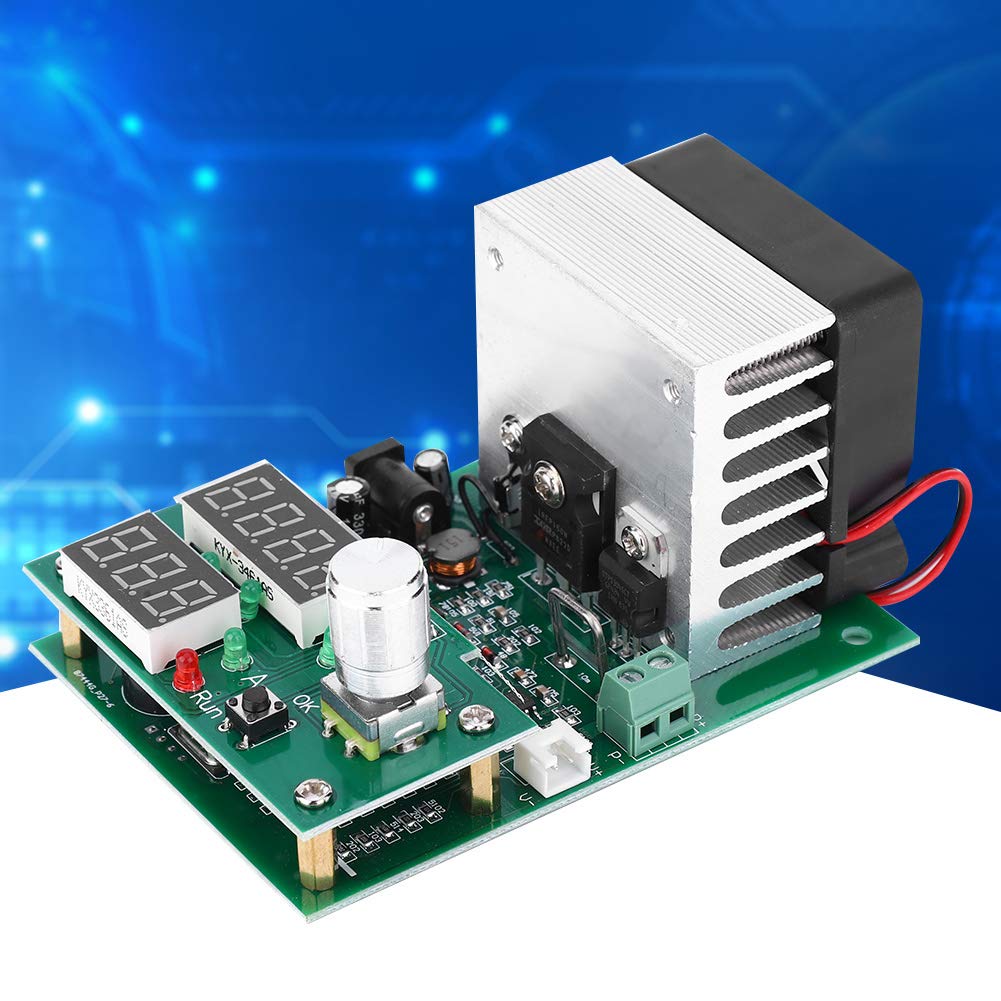

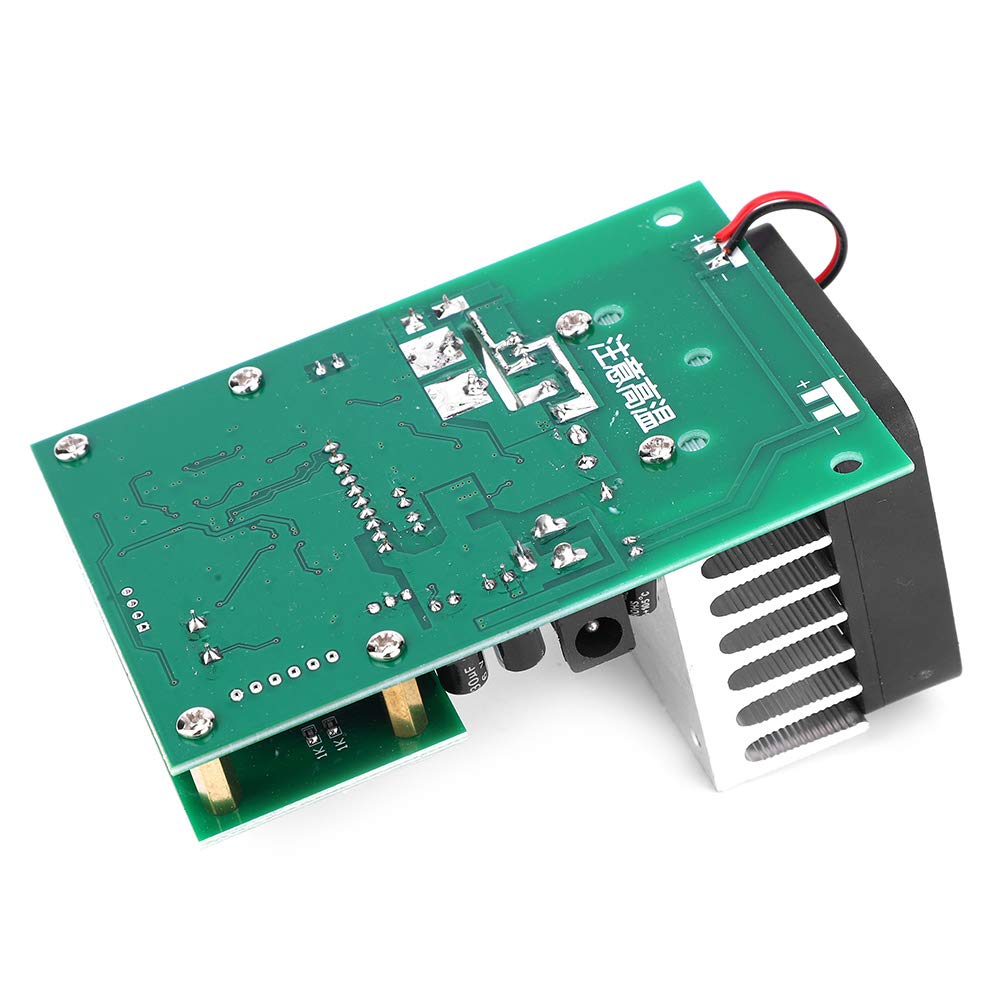

60W 9.99A 30V Electronic Load Aging Test Module,Single Mode Constant Current Battery Capacity Tester, Intelligent Fan Control,Overheat

Specification: Item Type: Electronic Load Aging Battery Capacity Tester Module Working Mode: Single mode constant current () Discharge Current: 0.20-9.99A, Step 0.1A or 0.01A Maximum Discharge Current Error: 0.7%-0.01A Maximum Error in Capacity Test: 0.5A 2.5%, 2A 1.5%, 5A and 1.2% Termination Voltage Setting Range: 1.0-25.0V, step 1V or 0.1V Discharge Voltage: 1.00-30.00V (subject to MOS internal and other losses, the measured input 1V can support 6-7A current, 9.99A requires the measured voltage is greater than 1.3V) Maximum Error in Voltage Measurement: 0.8%±0.02V Maximum Power: 60W, exceed power automatically limits the maximum current (for maximum 60W, it can open 9.99A at 6V and at most 3.00A at 20V) Highest Statistical Value of Battery Test: .9Ah or 9Wh, reach the value to stop the test Positioning Hole Position: 60mmx88mm Hole Diameter 3.2mm Load Power Supply: 12V, current 0.5A or more Fan Control: Intelligent fan control (Fan can automatically change the speed according to the radiator temperature) Function: overheat "otP", instantaneous overpower "oPP", overvoltage "ouP", reverse connection , abnormal supply voltage . Package List: 1 x Electronic Load Aging Battery Capacity Tester Module
