60MHz Dual Channel Function Generator Arbitrary Waveform Generator with 4.3 Inch LCD Screen for Circuit Debugging and Industrial Testing
Product details
| Management number | 220424638 | Release Date | 2026/05/03 | List Price | $103.68 | Model Number | 220424638 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

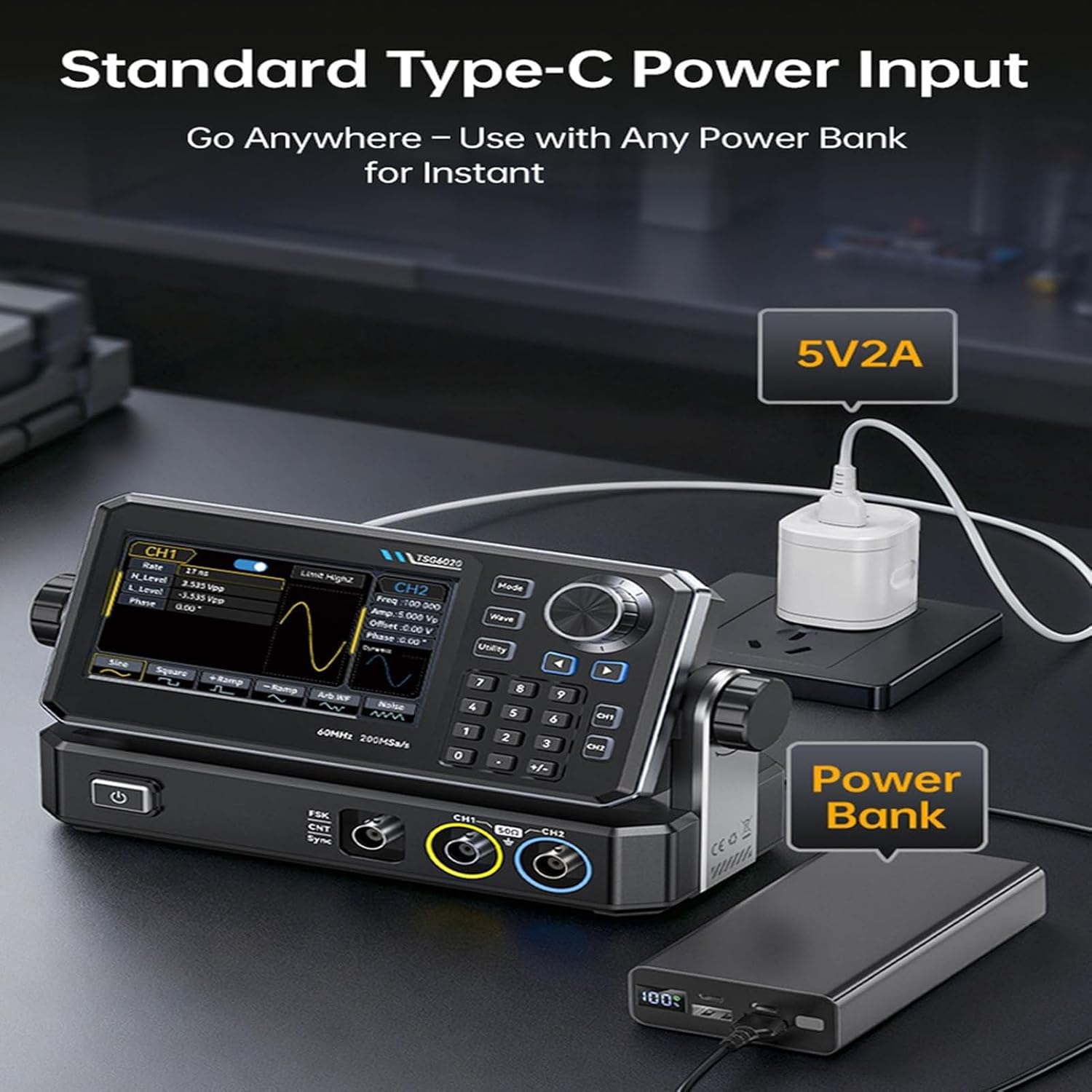

Product description Spec: Item Type: Signal Generator Product Material: ABS Maximum Output Frequency: 60MHz Sampling Rate: 200MSa/s Vertical Resolution: 14bit Channels: 2 Built in Frequency Meter: 7 Digits Sine Wave Frequency: 1μHz-30MHz Square Wave Frequency: 1μHz-24MHz Pulse Wave Frequency: 1μHz-24MHz Modulation Function: AM, FM, PM, FSK, ASK, PSK, Line, Log Maximum Output Amplitude: 20Vpp Display: 4.3 inch LCD, 480 Horizontal x 272 Vertical Battery: 1 x 1500mAh Rechargeable Li Battery (built in) How to Use: Please follow the instructions in the manual. PackageList: 1 x Signal Generator 1 x Type C Charging Cable 1 x Data Cable 1 x Supply Cable 1 x Test Clamp/Holder Cable 1 x User Manual 1 x Plug Manufacturer Contact Information 1

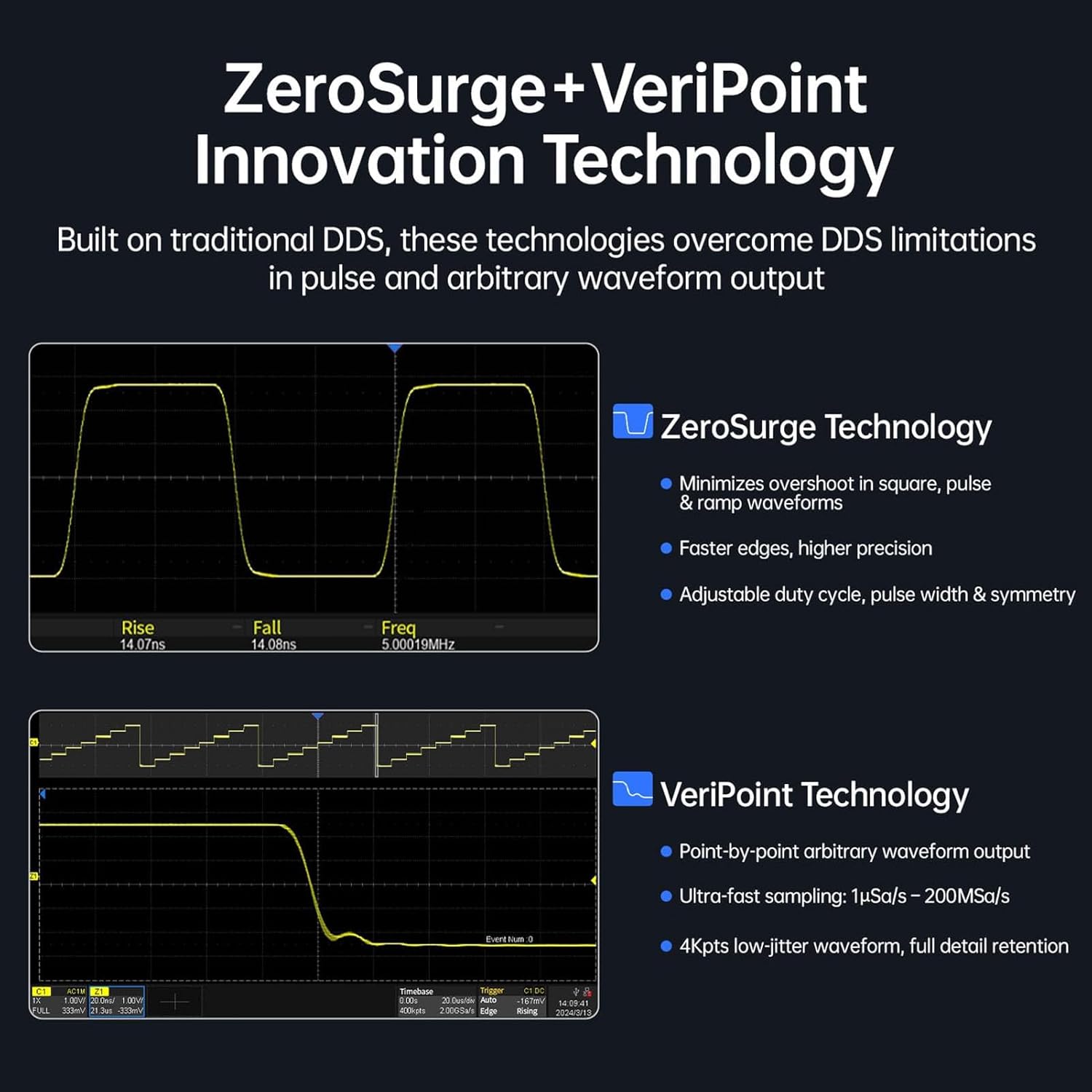

- Precise Waveform Control: This digital oscilloscope generates square or pulse waves with adjustable duty cycle (0.01% to 99.99%) and 13.5ns fast rise fall time, minimizing overshoot for accurate circuit debugging and industrial testing applications
- Advanced Signal Generation: Support for VeriPoint technology, this signal generator outputs jitter free arbitrary waves at 1uSa/s-200MSa/s variable rates while preserving waveform details within 4Kpts length, suitable for complex signal simulation
- Dual Channel Output: With two independent channels, this function signal generator oscilloscope delivers clean 20Vpp signals even at 30MHz frequency, maintaining full amplitude for demanding professional measurements
- Versatile Waveform Support: The signal generator accommodates multiple waveforms (AM, FM, PM, FSK, ASK, PSK modulation) with 200MSa/s sampling and 14 bit resolution, ensuring HiFi signal reproduction across diverse testing scenarios
- Display Screen and Angle: Equipped with a 4.3 inch LCD color display screen, this arbitrary waveform generator allows 90° screen rotation for optimal viewing angles during detailed waveform analysis and signal diagnostics
| Item Weight | 2.76 pounds |
|---|---|
| Manufacturer | Badafaci |
| Item model number | Badafaci761afs3gwx |
| Package Dimensions | 9.45 x 6.69 x 5.12 inches |
