600Bar Diesel Injector Tester 8700PSI Diesel Fuel Injector Nozzle Tester with Dual Scale Gauge to Adjust Injector Nozzle Pressure and Testing Diesel Injector Nozzle Pop Pressure Tester

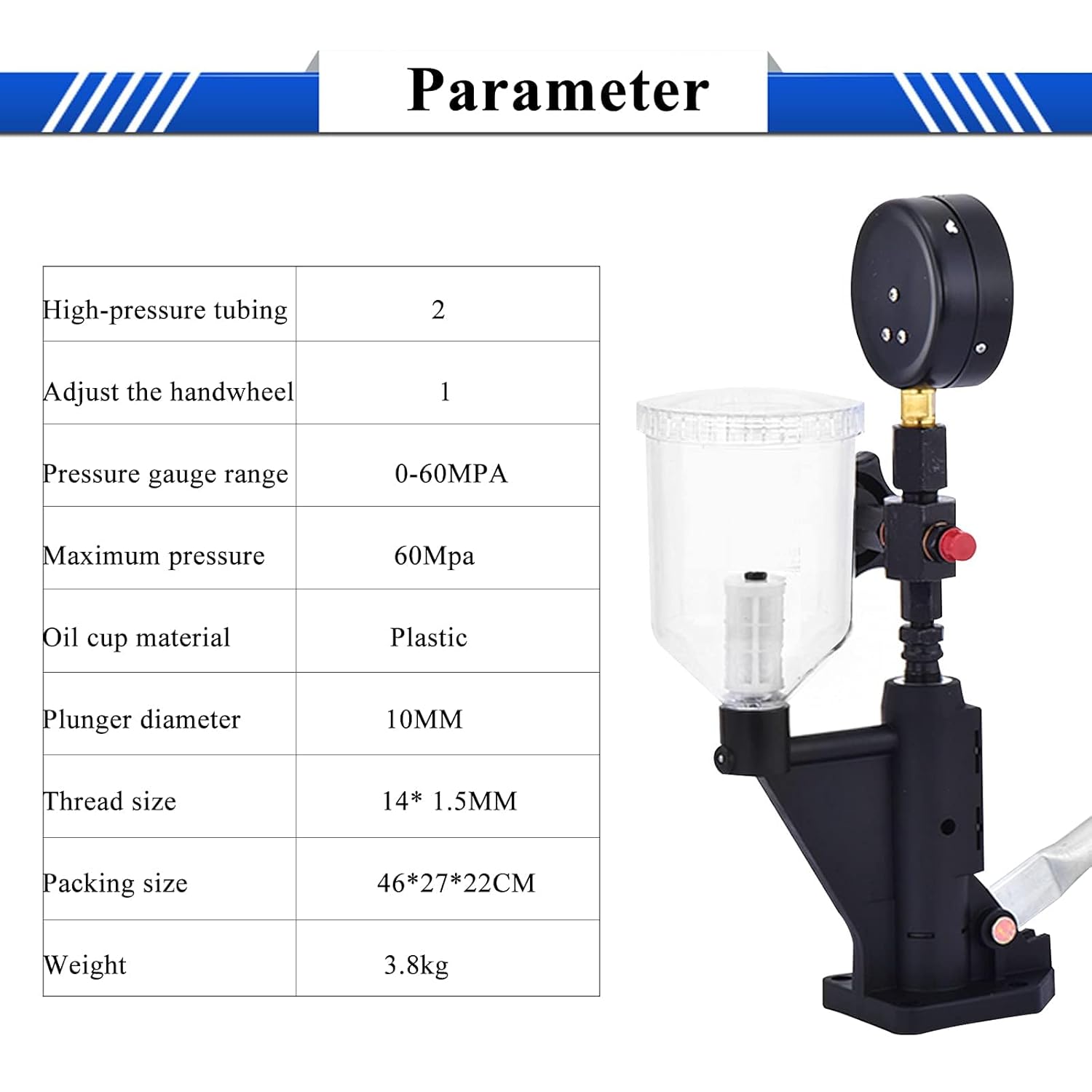

Diesel Injector Tester 60MPaThis diesel injector tester comes with a heavy 0 to 600 BAR / 0 to 8700 PSI dual scale gauge, which helps stabilize vibrations in the needle, providing more accuracy in results and increaseMultifunctional Tests- This fuel injector tester is the special equipment for inspecting fuel injectors. It can verify various mechanical tests of fuel injectors, such as opening pressure test, leakage test, atomization, and chattering test. With diversity function, and simple operation.Application- Widely used in the calibration of fuel injectors of diesel engines of automobiles and tractors. It is suitable for all types of diesel injectors except (CRDI) Common Rail Diesel Injectors.Specifications:Pressure range: 0-60MPa/0-600 bar/0-8700 psiBiggest test pressure: 60MPaFuel tank capacity: 0.75LPressure: 0-60MpaPlunger Hole: 0.39''/10mmNozzle connector: M14X1.5-M14X1.5, M14X1.5-M12X1.25, M14X1.5-M12X1.5Outline dimension: 5.1x9x16.7 in / 13x23x42.5cmGross weigth: 4.5KGPackage Content:1 X Diesel Injector Nozzle Tester1 x Charging Case1 x Charging Cable

• Large Measuring Range: Dial reading 0-600 bar or 0-8000lbs,Fuel tank capacity: 0.75L.Biggest test pressure: 60MPa;Plunger Hole: 0.39''/10mm;Nozzle Connector: M12 / M12 (filaments) / M14.
• Simple To Use: Fill the 750mL oil cup and press the lever to eliminate air from the tester; Connect your oil tube then press lever again; Connect injector nozzle with tube and start testing; Be sure to flush the tester before your first use.
• Superior Tests Ability: Diesel compression tester stands 17 inches tall; consists of a plastic fuel cup to contain the fuel, and with a stainless pressure gauge to detect air pressure precisely,the diesel injector tester forged by high-quality cast iron, its durability and rigidity is dramatically increased.
• Wide Utility: This Diesel Fuel Pressure Tester Kit was designed to check for leakage, spray pattern and chatter characteristics in your diesel engine; Ensure optimal operation in your vehicles and farming equipment,it is troubleshoot for mechanical issues after rebuilding and servicing.
