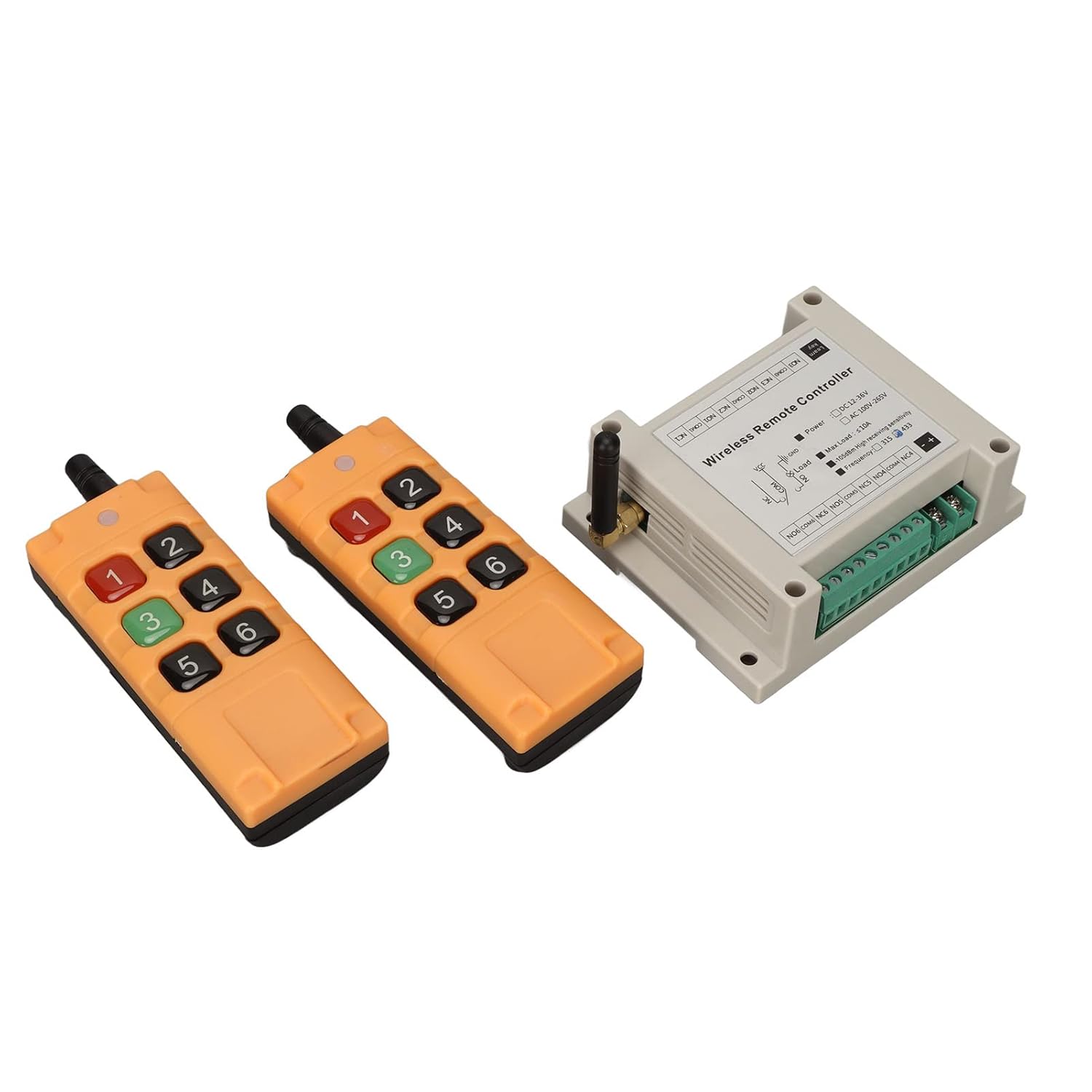

6-Channel Wireless Remote Control Relay Switch, 433MHz 12V DC Transmitter & Receiver, Universal Motor Light Door Window Controller

Item Type: Wirefree Remote ControllerMaterial: ABS, SiliconeVoltage: DC12VOperating Frequency: 433MHzReceive Sensitivity: >110dbmWorking Temperature: -40-80℃Maximum Load Current: 10ARemote Control Specification: 4 x AA battery (not included)A, 1-6CH Instantaneous: Press the launcher 1 to learnB, 1-6CH Atresia: Press the transmitter 2 to learnC, 1-6CH Switch: Press the transmitter 3 to learnD, 1-3CH Instantaneous, 4-6CH Instantaneous: Press the transmitter 4 to learnE, 1-3CH Instantaneous, 4-6CH Lock: Press the transmitter 5 to learnF, 1-3CH Latched, 4-6CH Toggle: Press the transmitter 6 to learnInstant: Press the transmitter 1, the receiver relay 1 is connected, the release 1; the receiver relay 1th is disconnected, which is the same as the independence of 2, 3, 4, 5, and 6.Switch: Press the transmitter for 1 once, the receiver relay is connected at 1th, press the 1 again, the receiver relay 1 is disconnected, the same 2, 3, 4, 5, 6 independent.Locking: Press the transmitter 1, the receiver relay 1 is connected, and relay 2, 3, 4, 5, 6 is disconnected.Press the transmitter 2, the receiver relay 2 is connected, and relay 1, 3, 4, 5, 6 is disconnected.Press the transmitter 3, the receiver is connected 3th, relay 1, 2, 4, 5, 6 disconnectPress the transmitter 4, the receiver relay 4 is connected, and relay 1, 2, 3, 5, 6 is disconnected.This also means that the locks can only be kept open by 1ch and usually open 1ch.Learning Methods and Steps: 1. Press the learning of the receiver, the bee tweee continues to cry, indicating that entering the learning state2. Press the relative of the transmitter to learn the relative output method. When the bee tweet is called be be 3 sounds, the learning is successful, and then press the transmitter to hear the sound of the relay. If you don't do anything within 32

• MULTIPLE CONTROL MODES: This controller offers diverse control methods and functionalities, enabled by independent programming via a single-chip microcomputer.
• STABLE & RELIABLE: The 6-key design with GFSK signal transmission ensures easy, stable signal transmission, free from interference.
• WIDE VOLTAGE APPLICATION: Featuring a wide working voltage range, this controller is ideal for lighting, home systems, and more.
• VERSATILE APPLICATIONS: Suitable for lighting, electric doors and windows, lifting equipment, elevator control, and security systems.
• COMPLETE KIT: This controller kit includes an LED light switch relay, radio transmitter and receiver, operating at 433MHz with high receiving sensitivity and a large load capacity.
