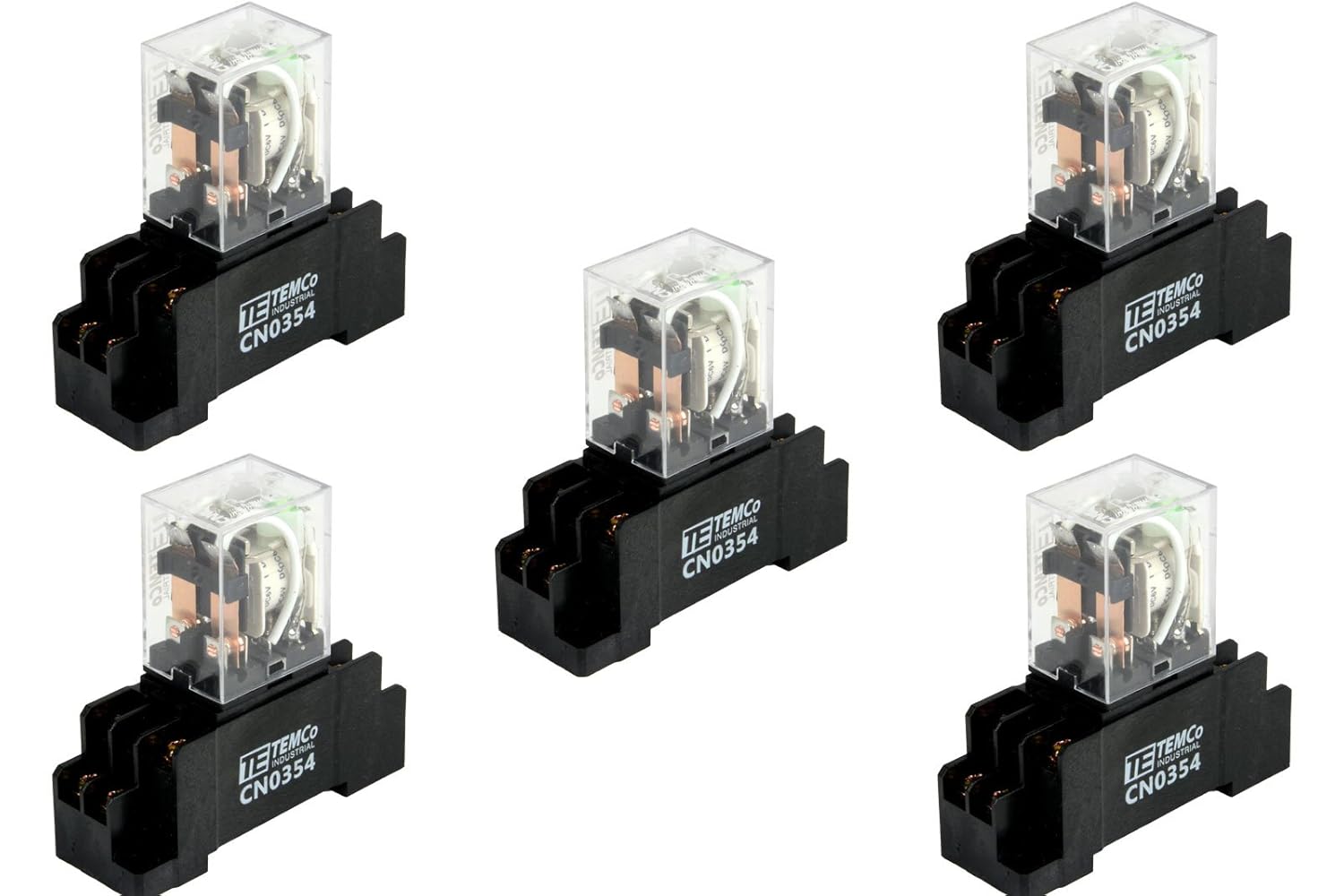

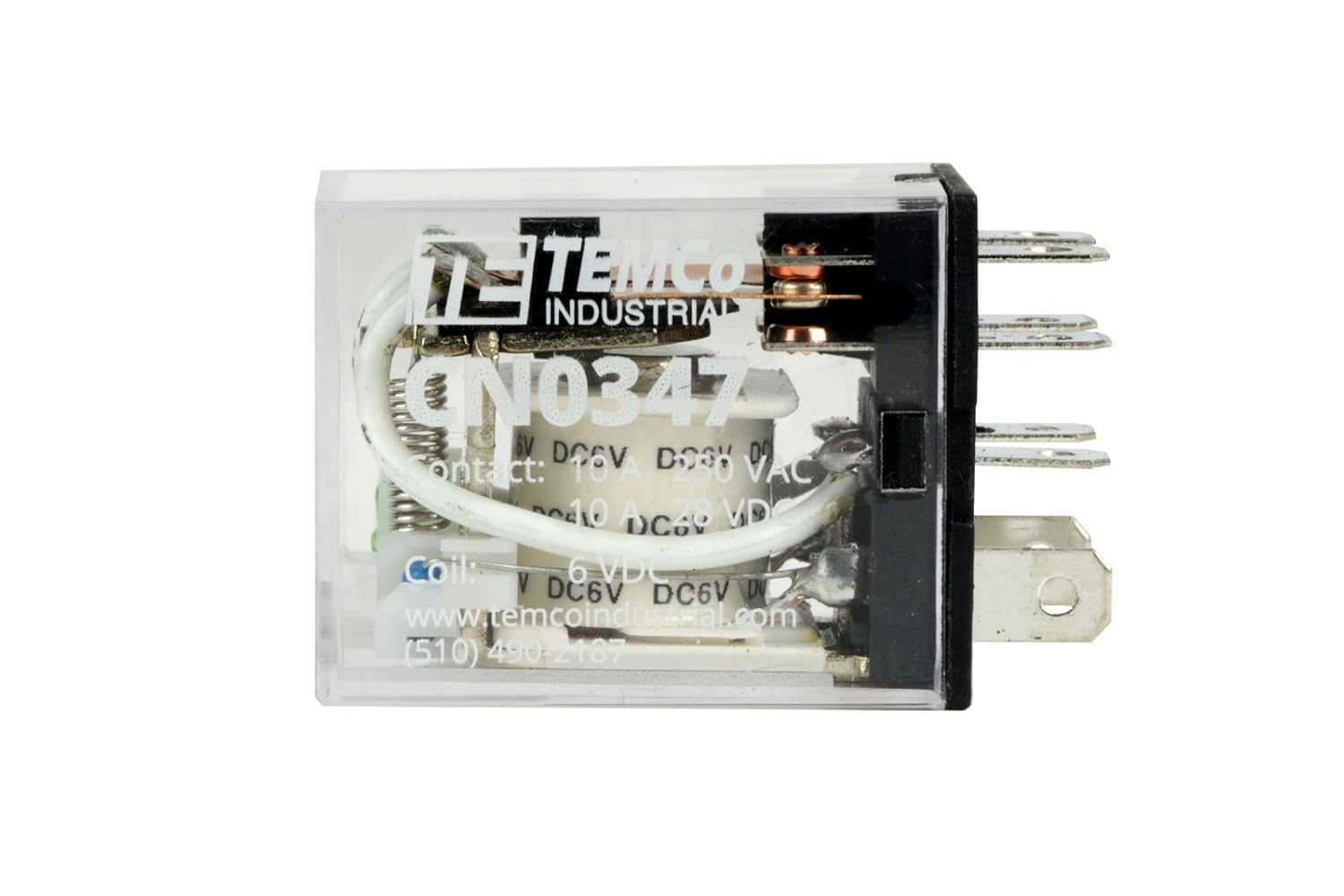

4X TEMCo Ice Cube Relay General Purpose 6 VDC 10A Contact 8 Pin w/Socket
Product details
| Management number | 215612916 | Release Date | 2026/04/12 | List Price | $21.00 | Model Number | 215612916 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

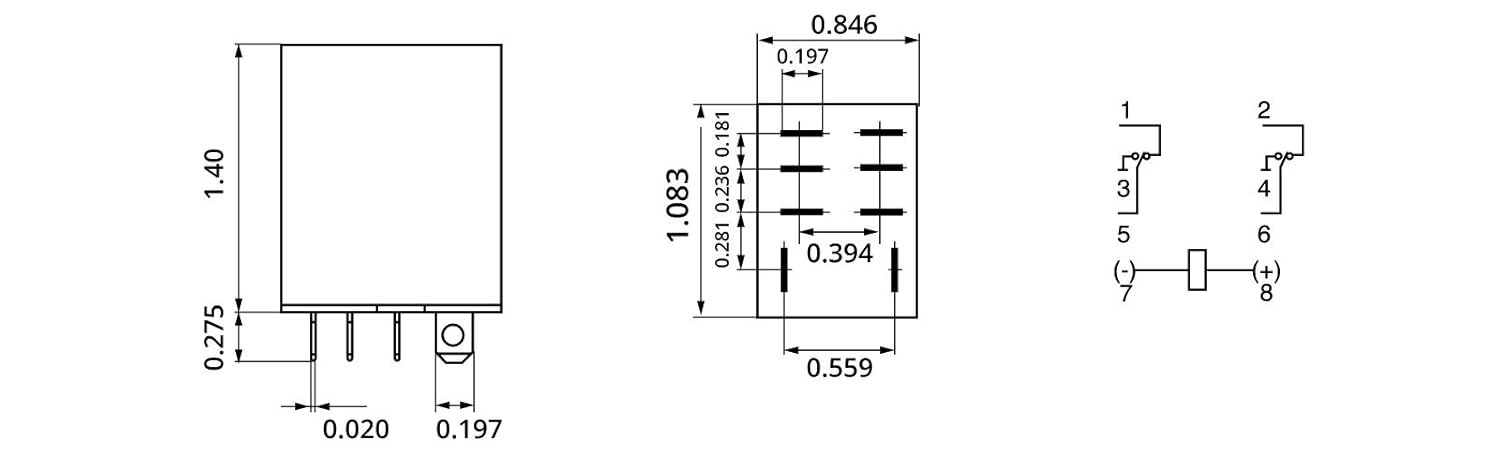

Contact Rating: 10A @ 250VAC / 28VDC Contact Resistance: 50 mega Ohms Coil Power: 0.9 Watts / 1.2 VA Insulation Resistance: 500 mega Ohms Dielectric Strength: Between open contacts - 1500 VAC Between coil and contact - 1500VAC Mechanical Cycle Life: 20,000 to 30,000 Electrical Cycle Life: 20,000 to 30,000 Temperature Range: -104 Fahrenheit to +158 Fahrenheit Weight: 1.15 oz Dimensions:See Drawings in gallery Warranty:2 Year Warranty TEMCo Industrial general purpose ice cube relays and sockets are backed by a 1 year no-questions-asked return policy and a 2 year warranty against manufacturing defects. That means you can purchase with the peace of mind that someone here in California will help you with these relays
| UPC | 603275107612 |
|---|---|
| Brand Name | Temco |
| Item Weight | 10 Ounces |
| Part Number | CN0379 (4x CN0347 + CN0354) |
| Coil Voltage | 6 Volts |
| Contact Type | Normally Open |
| Manufacturer | TEMCo |
| Current Rating | 10 Amps |
| Coil Resistance | 50 Megaohms |
| Contact Current Rating | 10 Amps |
| Maximum Switching Current | 10 Amps |
