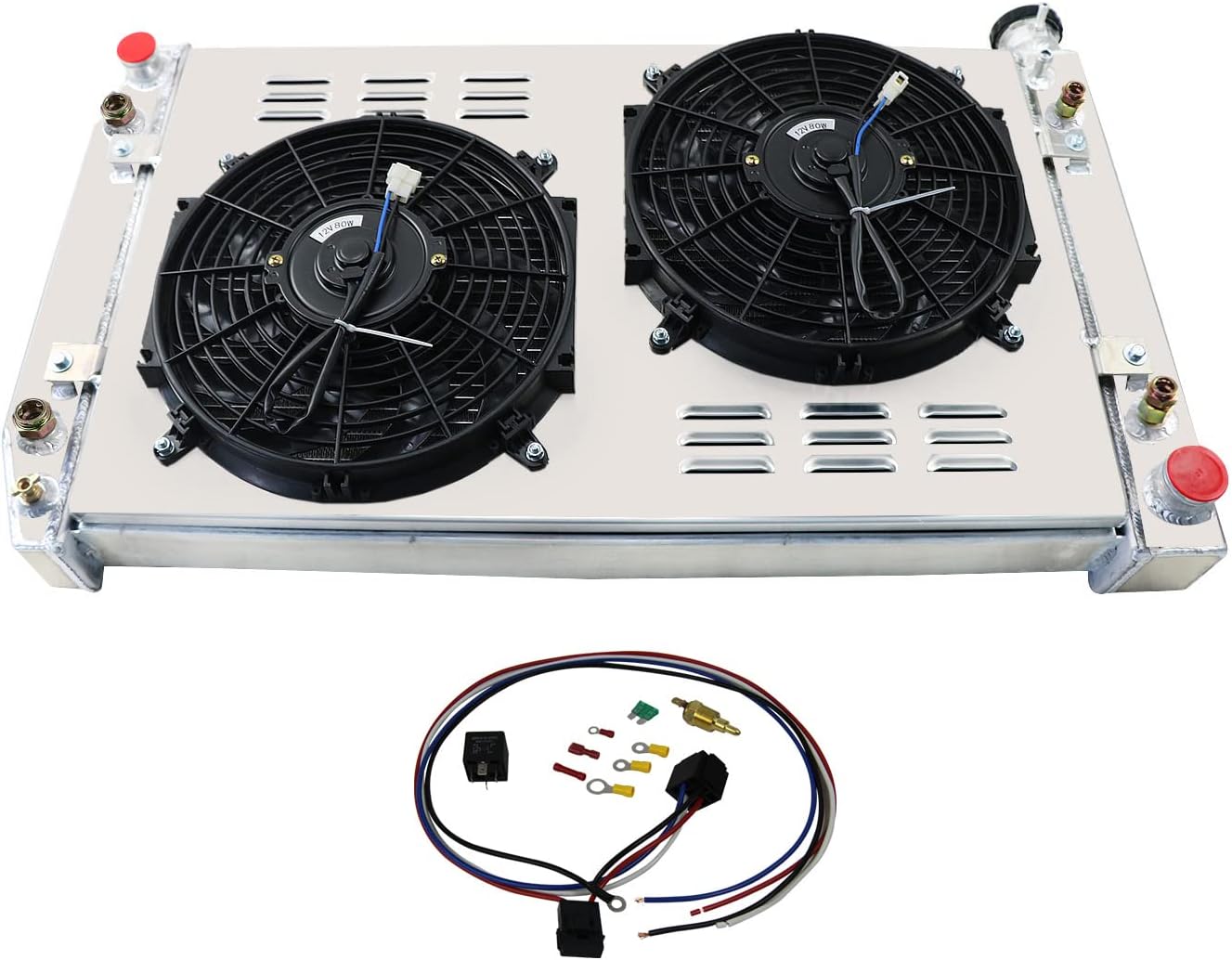

4 Row Radiator+Shroud Fan+Relay Compatible For 1988-1999 Chevy Truck C/K 1500 2500 3500 PICKUP 28" W 89 90 91 92 93 94 95 96 97 98

THIS LISTING INCLUDES THE RADIATOR AND THE SHROUD AND 2x12" FANS+ THERMOSTAT KITS! Vehicle Fitment:Compatible For 96-97 Chevy P30 / GMC P3500 4.3L V6 Compatible For 92 93 94 95 Chevy/GMC Suburban 5.7L V8 Compatible For 88 89 90 91 92 93 94 95 Chevy/GMC C/K Pickup 5.0 / 5.7L V8 Compatible For 94-95 Chevy/GMC C/K Pickup 4.3L V6 Compatible For 89 90 91 Chevy R/V Series 5.7L V8 Compatible For 1994 Chevy Blazer - Full Size 5.7L V8 Radiator Size: High Performance Racing Spec. 4-Row of tubes Core Racing Design Tank Material: AA5052 Aircraft Grade Aluminum Core Size : 17 1/4" Height x 28 1/4" Width Overall Size: 20 1/4" Height x 33 7/8" Width Inlet Diameter: -1 5/16" On Driver Side Outlet Diameter: -1 9/16" On Passenger Side Transmisson Oil Cooler：YES Engine Oil Cooler: M20 x 1.5 3/4-18 Adapter Radiator Cap:OEM Style Brass Petcock Drain. Please Check the Size Before You Buy! FANS: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050" Thickness (in): 2.500" Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Thermostat Kit: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Why Choose Cubauto Radiator? 1. Covers vast selection of import and domestic applications 2. Stringently tested to guarantee optimum performance and dependability 3. Straightforward installation guaranteed 4. Carefully crafted to exceptional OE standards for precise fit,Aircraft AA5052 grade aluminum and with raw aluminum finish 5. Made from high-grade materials for prolonged lifespan 6. CNC machined filler neck and cap 7. OEM style brass petcock drain

• Core Size : 17 1/4" H x 28 1/4" W / Overall Size: 20 1/4" H x 33 7/8" W; Compatible For 1988-1999 CHEVY C/K PICKUP C1500 C2500 C3500 5.7L V8 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998
• Left oil cooler : M20*1.5 ; Right oil cooler : 1/2-20UNF ; Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain.
• Full aviation-aluminum craftsmanship, 100% welded by TIG; Racing design/improves cooling by 35 -45% temp
• This Cubauto 4 Row Aluminum Radiator is welded in vacuum brazing furnace, no epoxy, all item is 100% inspected and tested for quality assurance.
• All Aluminum Radiator is made of full Aluminum construction, all item is 100% inspected and tested for quality assurance
