35mm Concealed Hinge Jig Kit for Cabinet Door Hinge Installation Cabinet Hardware Jig Tool with Drill Jig,Drill Bit, and Open-end Wrenches for Easy Bore Hinge Boring

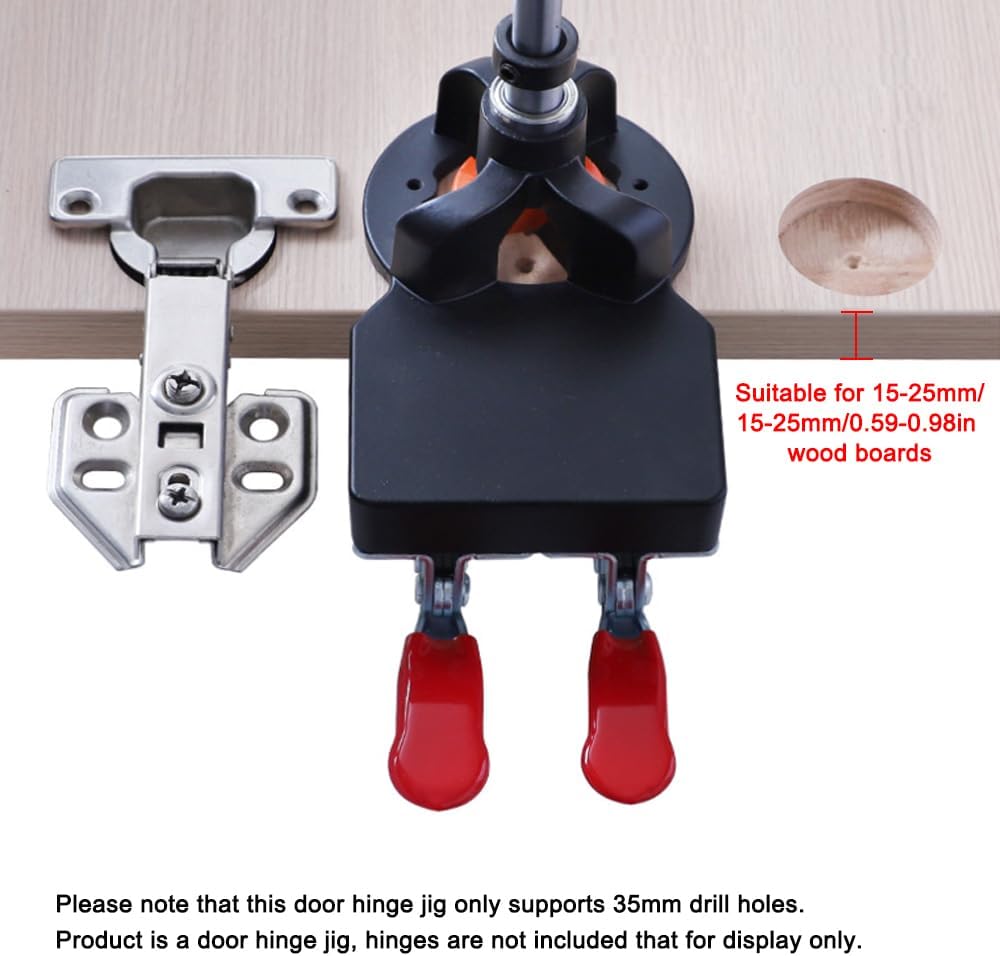

Feature:【Precision Hinge Jig】Crafted from high-quality aluminum alloy, the door hinge fixture surface painting treatment, not easy to rust and break. The bottom surface of the door hinge jig is flat, the hole verticality is precise, and the nut can be adjusted to the position according to the thickness of the board, so it is a good drilling aid.【Three Bearing Drill Sleeve】Concealed door hinge jig adopts an upgraded design with three bearings for precise positioning. Sharp drill bit, the drill sleeve is about 20mm high, the higher the height, the less the drill bit swings, the more accurate the positioning of the hole, easily help you to complete the drilling work.【Adjustable Hole Margin】Door hinge jig can adjust the margin from 3-7mm/0.11-0.27in, suitable for 15-25mm/15-25mm/0.59-0.98in wood boards, and the hole depth is 10-15mm/0.39-0.59in. Please note that this door hinge jig only supports 35mm drill holes.【Double Clamp Design】The door hinge jig with a double clamp design, which can increase the stability of the tool compared to a single clamp. The rubber on the surface can perfectly protect the paint surface of the wood, protect the board from scratching.【Complete Set】Our door hinge jig is fully tooled which includes a door hinge jig, a 2mm drill bit, a 35mm drill bit, 1 top linkage bearing, 1 depth positioning ring,1 allen wrench and 2 8-10 open-end wrenches. The complete tool set saves you the time of searching for additional tools, helping you to complete door hinge drilling jobs efficiently.Specifications:Name: 35mm Door Hinge JigMaterial: AluminiumSize: As ShownWeight: 695g/1.53lbApplicable Board Thickness: 15-25mm/0.59-0.98inPackage Included:1 * 35mm Door Hinge Jig 1 * 2mm Drill Bit1 * 35mm Drill Bit1 * Top Linkage Bearing1 * Depth Positioning Ring1 * Allen Wrench2 * 8-10 Open-end Wrenches

• 【Sturdy and durable】35MM hinge positioning hole opener is made of aluminum alloy, precise manufacturing, accurate locking, easy operation, 12mm hole with built-in double bearings to reduce the wear and tear of the drill shank and bearing sleeve, long service life. The hinge drilling jig is a DIY woodworking toolis a good helper to install different kinds of cabinet door hinge jigs
• 【Accurate positioning】35MM hinge jig is fixed to the workbench by the adjustable pressure plate and quick fixing clips on the base support, it does not shift when drilling and reducing wood being wasted. It makes it possible to achieve time saving when installing the same batch of wood panels as a must-have tool for cabinet makers/joiners
• 【Widely application】The 35MM hinge opener is suitable for 15-25mm wood, 35mm hole to edge distance of 5mm, suitable for most common hinge jigs, comes with 35mm hole saw and 2mm drill bit, can be used with any electric drill, 25MM hinge positioning opener is suitable for cabinet/kitchen/closet/cabinet door hinge punching and positioning
• 【Easy to use and install】1. Install the 35mm cabinet hinge jig, adjust the drilling depth according to the thickness of the hinge jig,then tighten the limit ring. 2. Determine the thickness of the board, adjust the black pressure plate fixed size (Note: The tool is suitable for 15-25mm boards). 3. Move the hole puncher to the mark and drilling position of the board, lock the quick clip. 4. Tighten the drill handle and press down the hole at an even speed to have Adjust the depth of the hinge, and then drill 2mm screw holes on the left and right sides
• 【Packing list】1 * 35mm Door Hinge Jig , 1 * 2mm Drill Bit, 1 * 35mm Drill Bit, 1 * Top Linkage Bearing, 1 * Depth Positioning Ring, 1 * Allen Wrench, 2 * 8-10 Open-end Wrenches. 35MM Concealed hinge jig parts are accurate and easy to install, the best wood opening aid for woodworking enthusiasts
