350W 24V Brush Motor Controller Key Throttle Scooter Bicycle Quad Razor MX350

🌞Controller: 🌞This 24 volt controller has 8 connectors. 🌞Rated Voltage 24 Volts 🌞Rated Motor 350 Watts 🌞Rated Current 27±1A 🌞Conversion Efficency 95% 🌞Under Voltage Protection 31.5±0.5V 🌞Dimensions:100*69*38 🌞Plug : 🌞1.Red & Black (large cable) : Battery connections 🌞2.Yellow & Blue : Motor connections 🌞3.Red & Blue : Key Switch(power lock) (If there is no power door locks,red connection to blue) 🌞4.Yellow & black : brake 🌞5.Red & Yellow: Brake light 🌞6.Red&Black(small cable) : indicator light 🌞7.Red, Black & Blue: Speed Regulator 1-4 V(Throttle ) (Red:+5v,Black: - ,Blue :Signal Wire) 🌞8.Red & Black (small cable): Charger 🌞Throttle Specification: 🌞Style: striae & Round 🌞Operating voltage: 5V 🌞Adjustment range: Minimum 1.0V; highest 4.0V

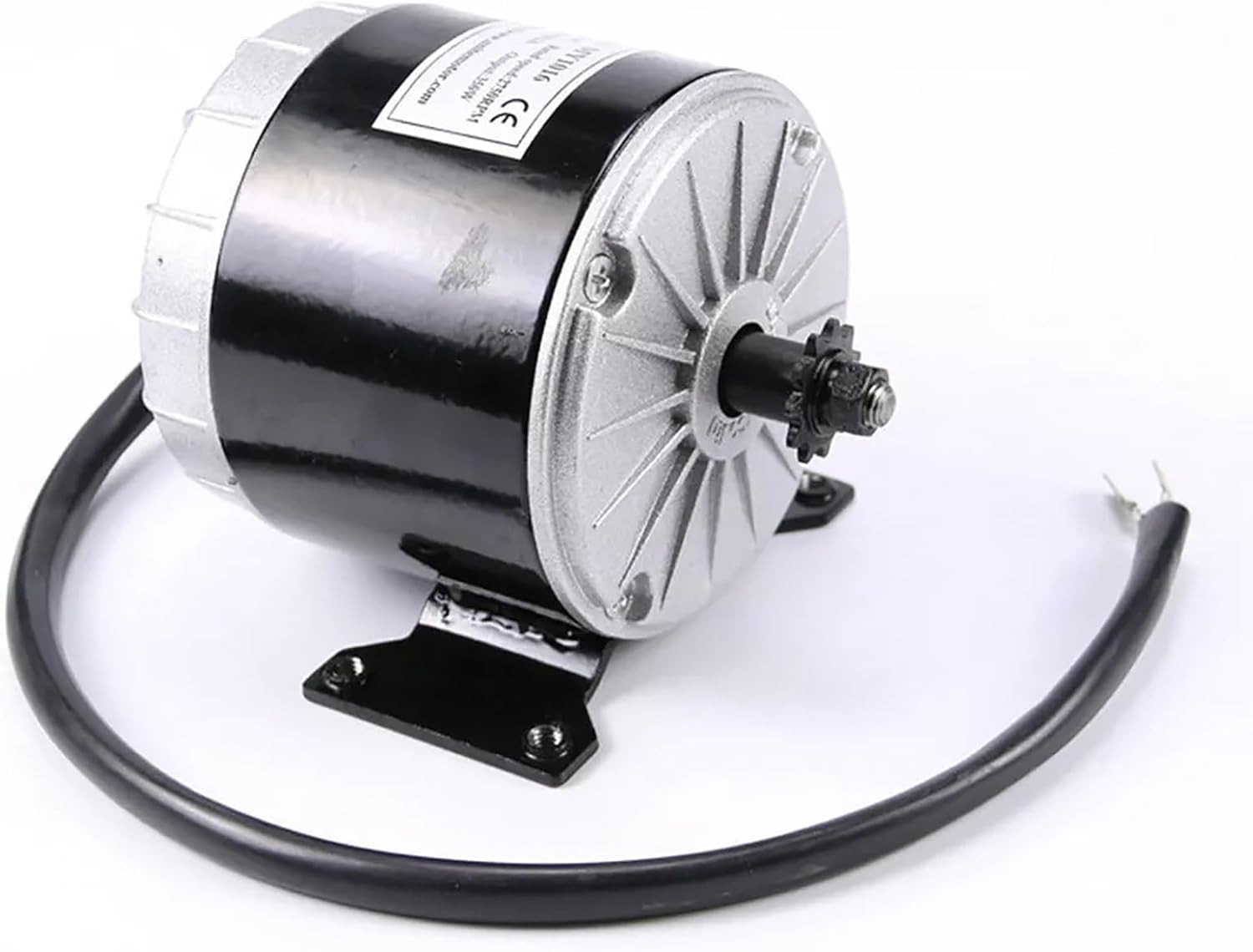

• Motor: 24Volt, 350Watt.
• Rated Speed: 2500RPM, Rated Current: 18.3A.
• 11 tooth sprocket for 8mm (25H) Chain.
• Throttle: Universal 12v 24v 36v 48v Black Electric Scooter Bike LCD Throttle Grip w/ ignition switch and power indicator; Suit for Electric Throttle,dirt rocket,Scooter.
• Package includes: 1x cotroller + 1x motor + 1x throttle.
