3.5 inch 640X480 400nit VS035T-001AT IPS LCD Screen and VGA 2AV Controller Board VS-TY54-V1

LCD Controller Board: Input Power Adapter:12Vdc 2A.Video Input: VGA AV1 AV2Reversing: Support Automatically Switch To AV2 When Connector ACC to 12VOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size:83mm x 58mm x 10mm3.5" VS035T-001AT 640X480 LCD Screen:Display Mode TN, Normally White, Transmissive Resolution 640（RGB)×480Outline Size 76.9 × 63.9×3.3 (H×V×D)mmDisplay Area 70.08 × 52.56 (H×V)mmBrightness 400 cd/m² (Typ.)Contrast Ratio 800:1 (Typ.) (TM)Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]Interface Parallel RGB (1 ch, 8-bit) , 54 pins , FPCBacklight WLEDInput Voltage 3.3V (Typ.)Packing list :1× VGA AV LCD Controller Board VS-TY54-V11× 3.5inch VS035T-001AT 640X480 LCD Screen1× VGA Cable1× AV Cable1× Power Cable1× Keyboard With Cable

• 【mini IPS Screen】3.5 inch mini Display ,640x480 special resolution ,with Outline Size 76.9 × 63.9×3.3 (H×V×D)mm,Display Area 70.08 × 52.56 (H×V)mm,Signal Interface Parallel RGB (1 ch, 8-bit) , 54 pins , FPC,Backlight WLED.
• 【LCD Driver Board】 Video input: VGA 2AV ,Support automatically switch To AV2 when connect ACC to 12V，Please use in insulated environment.
• 【Input Power Supply】12V DC 2A, port size :5.5x2.1mm, (Pls prepare the power adapter seperately).
• 【Plug and play】 Connecting cables and ports as picture ,power on ,LED light become green ,then connect signal cable ,the screen will be lit up .

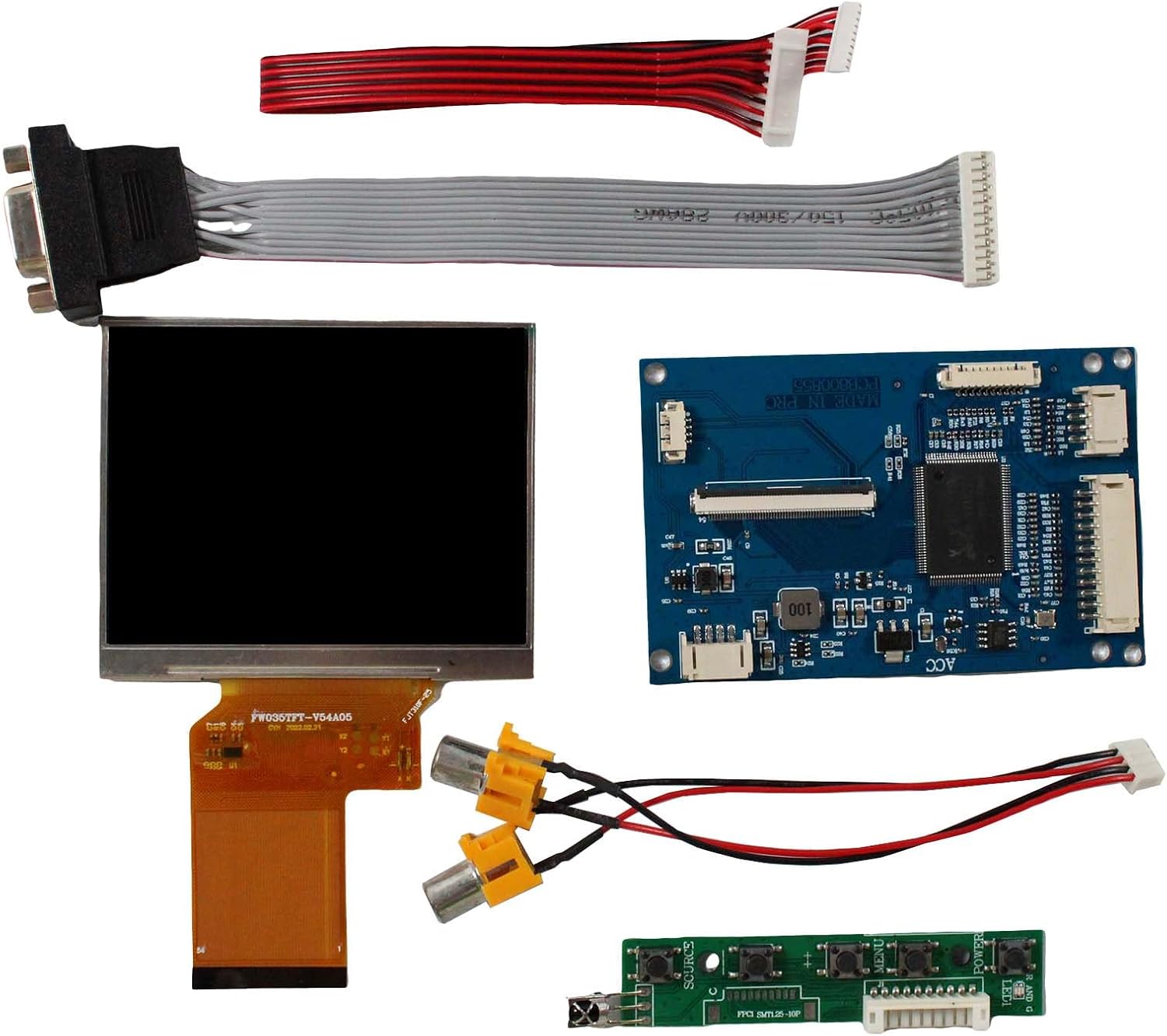

• 【Packing lists】1× VGA+2AV LCD Controller Board VS-TY54-V1,1× 3.5inch VS035T-001AT 640X480 LCD Screen,1× VGA Cable,1× AV Signal Cable,1× Power Cable,1× Keyboard With Cable
