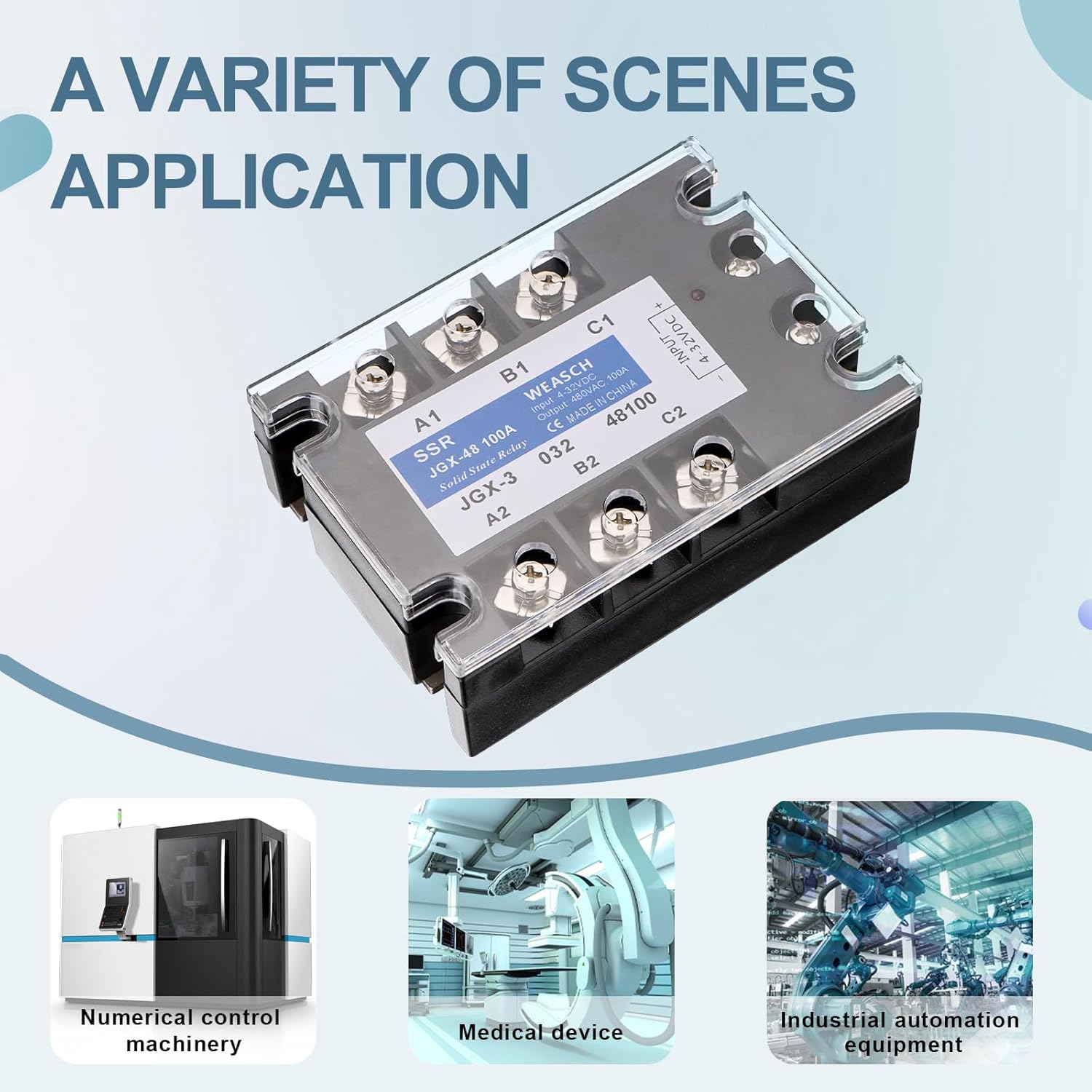

3 Phase Solid State Relay, JGX-48 100A, DC to AC, Input 4-32VDC to Output 480VAC 100A (1)
Product details
| Management number | 218082106 | Release Date | 2026/05/03 | List Price | $10.96 | Model Number | 218082106 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification: Input Voltage: 4 - 32VDCOutput Voltage: 480VAC, 100AControl Method: DC to ACRated Working Voltage: 36 - 480VACOutput Leakage Current: <10mAEnable Maximum Response Time: 10msMaximum Shutdown Delay: 10msCharacteristic: The input voltage range is wide and the control current is small, less than or equal to 20mANo mechanical moving parts, long service life and high reliabilityFast switching speed, zero voltage on, zero current off, and low radio frequency interferenceBuilt-in resistance and capacitance absorption protects the product from the impact of startup instantaneous currentPhotoelectric isolation between input and output circuits, insulation withstand voltage 2500VThe product is small in size, filled with epoxy resin inside, and is shockproof, moisture-proof and corrosion-proof
- Input Voltage: 4-32VDC; Output Voltage: 480VAC, 100A
- Control method: DC to AC
- The input voltage range is wide and the control current is small, less than or equal to 15mA
- Photoelectric isolation between input and output circuits, insulation withstand voltage 2500V
- Built-in resistance and capacitance absorption protects the product from the impact of startup instantaneous current
| Model | JGX-48 100A |
|---|---|
| Brand Name | Weasch |
| Part Number | JGX-48 100A |
| Coil Voltage | 32 Volts (DC) |
| Contact Type | Normally Open |
| Manufacturer | Weasch |
| Mounting Type | Plug In Mount |
| Connector Type | Plug-In |
| Current Rating | 100 Amps |
| Operation Mode | Automatic |
| Contact Material | Copper |
| Specification Met | CE |
| Included Components | JGX-48 100A |
| Minimum Switching Voltage | 4 Volts (DC) |
