3-phase sequence relay, 208-480VAC Three-phase voltage monitoring relay, IP20, for phase sequence and phase loss, for motors, elevators, power systems
Product details
| Management number | 218083309 | Release Date | 2026/05/03 | List Price | $10.04 | Model Number | 218083309 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

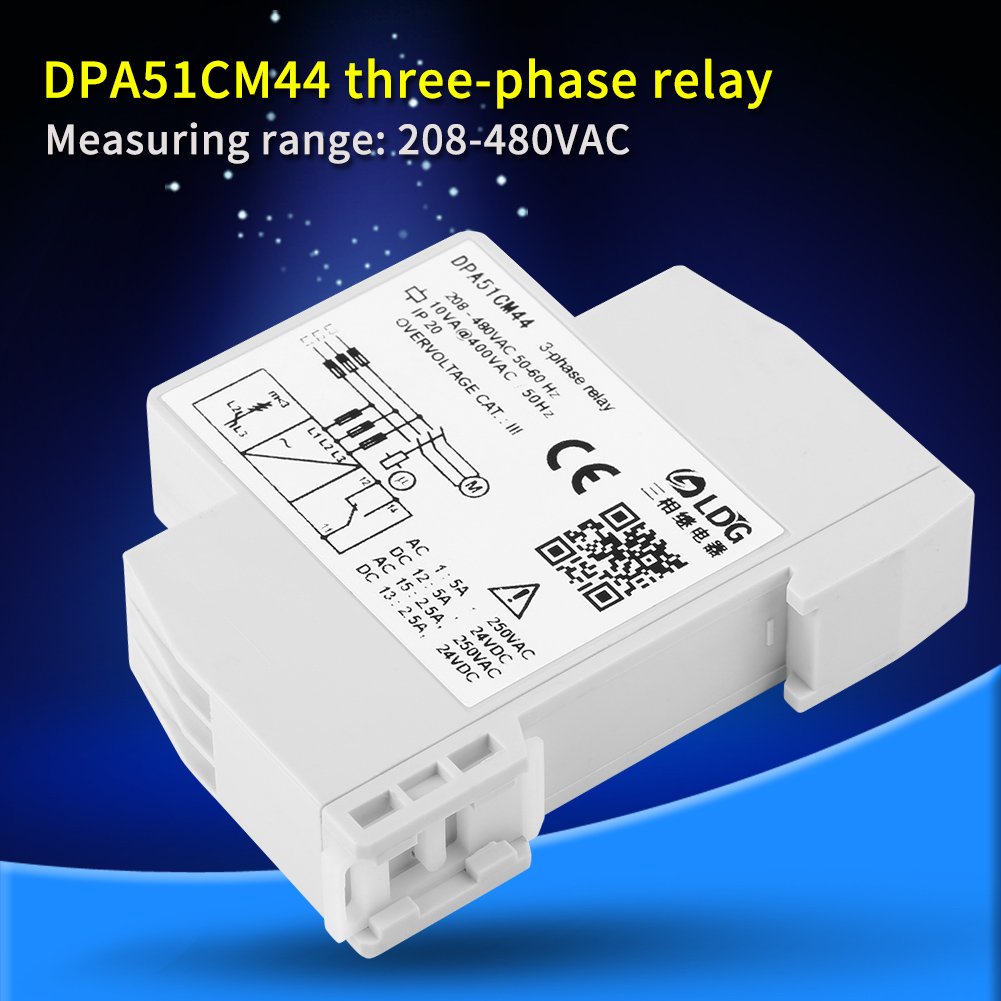

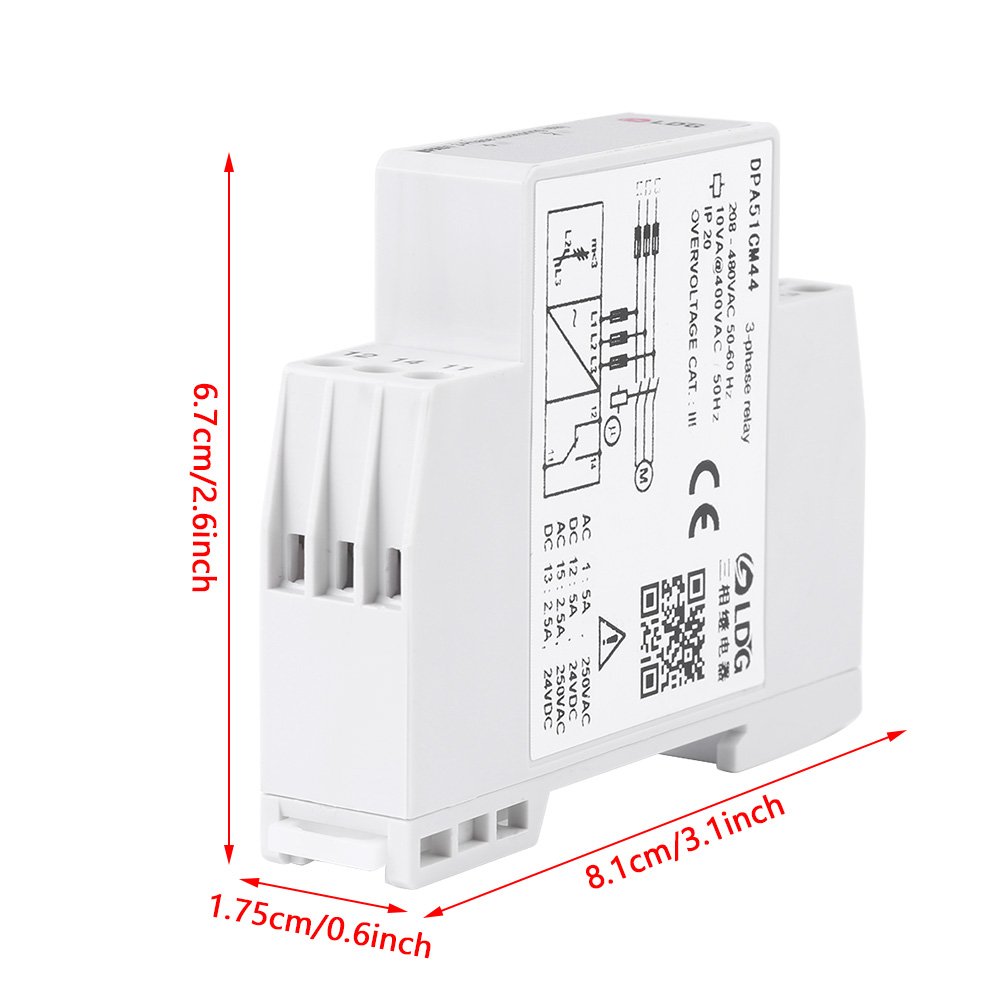

Features: DPA51CM44 3-Phase monitoring relay features strong anti-interference performance. Compact size and convenient for installation. Maintain constant and efficient work of the motor. Widely used in motor protection, elevator, air conditioning system, power system and other industries. 3-phase monitoring relay for phase sequence and phase loss. Detects when all phases are present and have the correct sequence. Specifications: Model: DPA51CM44 Contact load: 5A/ 250VAC; 5 A / 24 VDC Rated current: 5A Rated voltage: 208-480VAC Protective features: IP20 3C rated voltage range: below 36V Measuring range: 208-480VAC Contact switching voltage: 250V Contact switching current: 5A Output: 1*SPDT relay Maximum load capacity: 5A/250VAC, 5 A / 24 VDC Electrical life: > 100,000 times Size: 8.1 x 6.7 x 1.75cm/3.1 x 2.6 x 0.6inch Package Included: 1 x 3-Phase Monitoring Relay
- DPA51CM44 3-Phase monitoring relay features strong anti-interference performance
- Compact size and convenient for installation
- Maintain constant and efficient work of the motor
- Widely used in motor , elevator, air conditioning system, power system and other industries
- 3-phase monitoring relay for phase sequence and phase loss
| UPC | 738588948734 |
|---|---|
| Model | Acogedorg8421xa36y |
| Brand Name | Acogedor |
| Part Number | Acogedorg8421xa36y |
| Coil Voltage | 240 Volts (AC) |
| Contact Type | Spdt |
| Manufacturer | Acogedor |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 5 Amps |
| Operation Mode | Automatic |
| Contact Material | Copper |
| Contact Current Rating | 5 Amps |
| Maximum Switching Current | 5 Amps |
| Maximum Switching Voltage | 250 Volts |
| Minimum Switching Voltage | 250 Volts (AC) |
