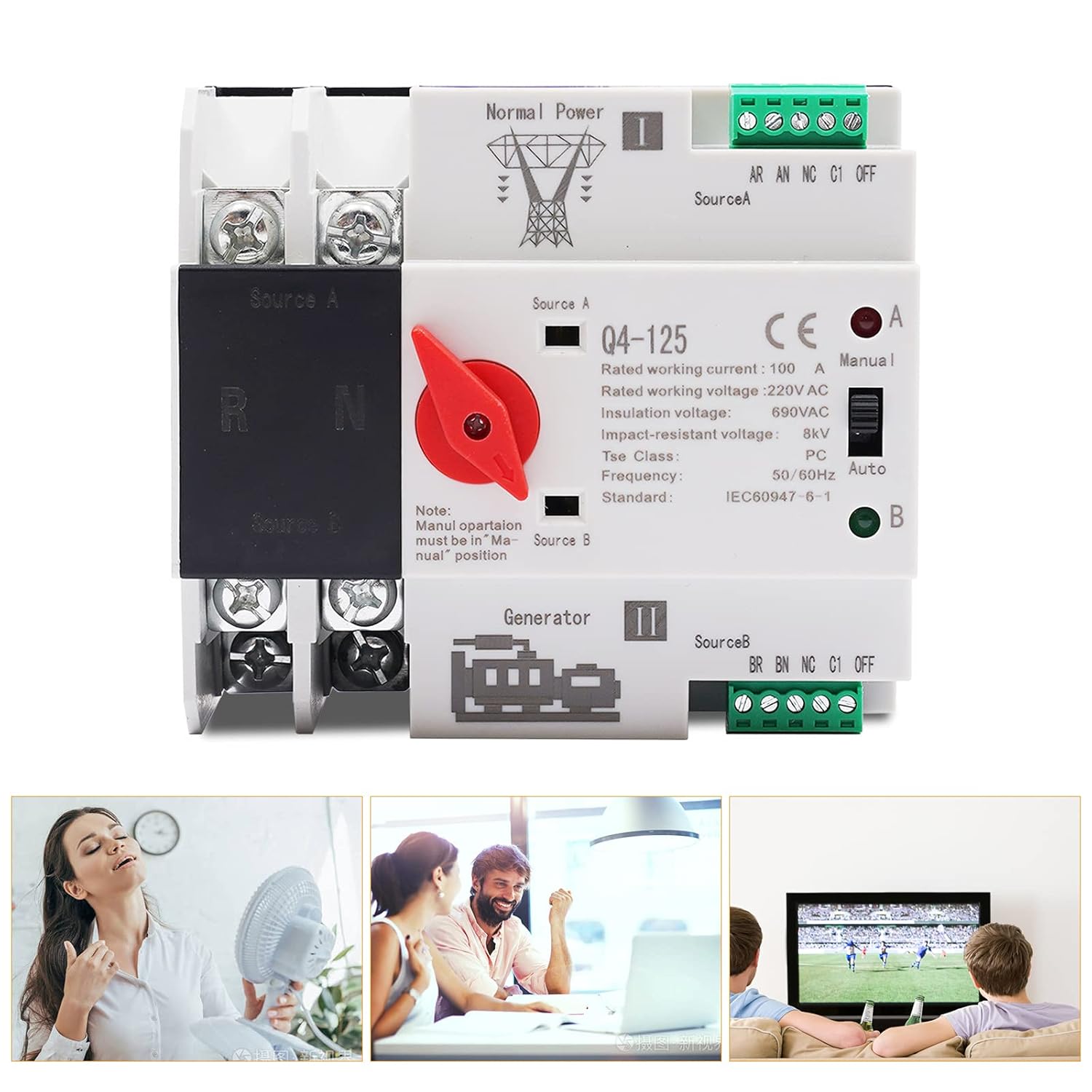

2P Automatic Transfer Switch, 110V Rated Operating Voltage, 100A Rated Operating Current 50HZ/60HZ GDAE10 Dual Power Mini Controller, 690V Insulation Voltage (2P PC Level)
Product details
| Management number | 218556756 | Release Date | 2026/05/03 | List Price | $16.00 | Model Number | 218556756 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification:Rated: 50Hz/60HzInsulation voltage: 690V, 50HzElectrical level: PC levelNumber of poles: 2PRated operating current: 100ARated operating voltage: 110VPackage include:1 * Switch
- Application automatic transfer switch device:Line Voltage: AC110V; Rated operating current: 100A; Operating: 50HZ/60HZ; Insulation voltage: 690V, 50Hz
- Conversion Time: 2S or so; Conversion Mode: self cast; Display Function: Indicator light display; 35MM standard rail installation
- When one power goes wrong (only test normal Phase A voltage and reserve Phase A voltage, only test loss voltage or loss phase), it will automatic connect one or several load circuits from one power to the other power automatically, to ensure normal power supply of load circuits.
- Complete protection function: This switch support variety protection function, including short circuit, overload, lack of phase, under voltage protection.
- Easy installation:Reasonable structure, small size, equipped with protective cover, power supply is easy to install and reliable.
| UPC | 794304864900 |
|---|---|
| Color | 2P 100A |
| Terminal | Screw |
| Brand Name | GDAE10 |
| Unit Count | 1.0 Count |
| Part Number | 1 |
| Switch Type | MOSFET |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
| Manufacturer | GDAE10 |
| Actuator Type | Rotary |
| Material Type | Polycarbonate |
| Mounting Type | Wall Mount |
| Connector Type | Screw |
| Control Method | Touch |
| Current Rating | 100 Amps |
| Operation Mode | Automatic,Automatically |
| Operating Voltage | 110 Volts |
| Specification Met | Pc Level, Ip54 |
| Number of Positions | 2 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP54 |
