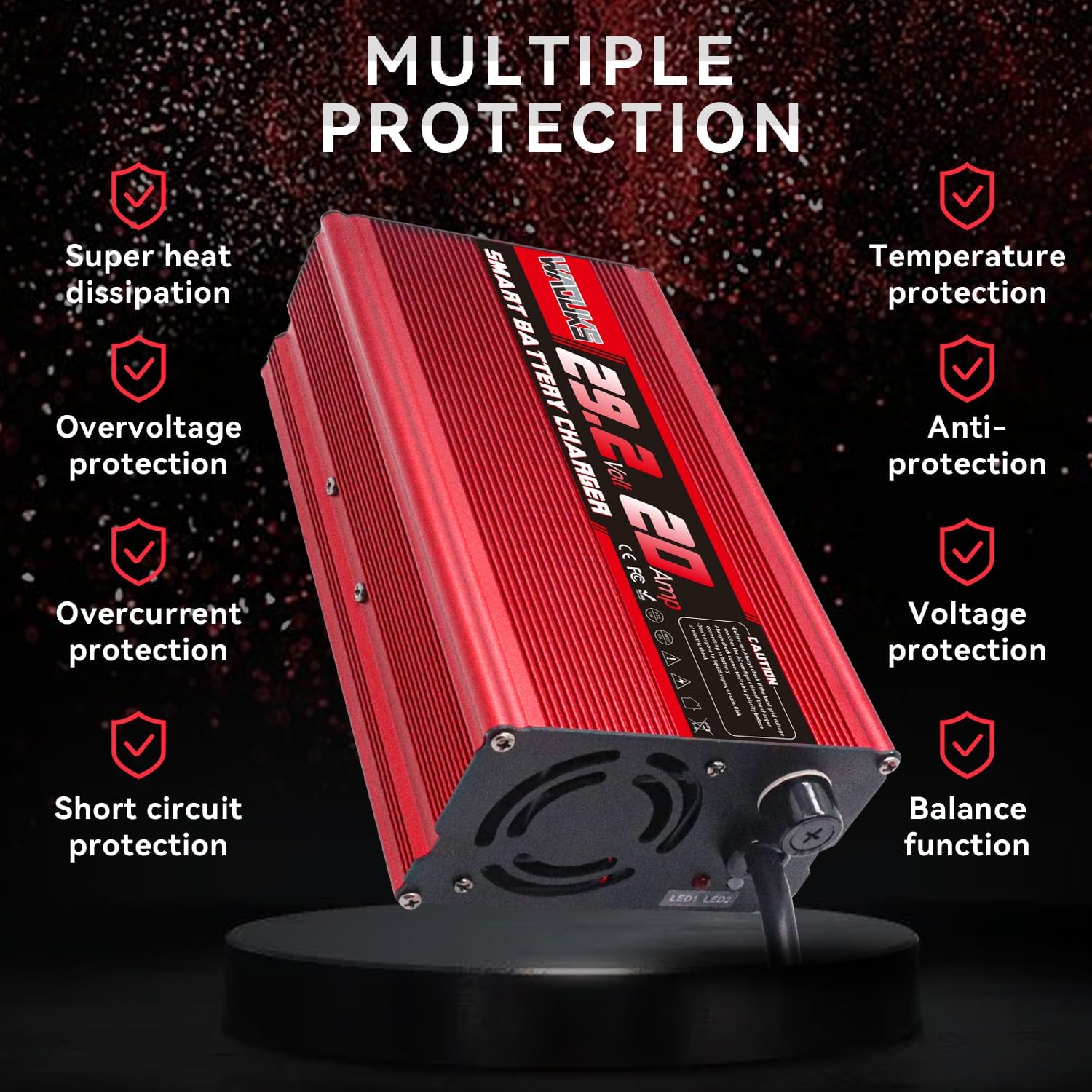

29.2V 20A LiFePO4 Battery Charger Used for 8S 24V 25.6V LiFePO4 Battery Pack with Grey 50A Anderson Smart Fast Charger

Specification:Product Name: 29.2V 20A ChargerModel: WA900-29220RDimensions(length*width*height): 210x120x70mm(8.26inx4.72inx2.75in)Color/Material: Red/Aluminum CaseProduct Weight: 2.2kg(4.85lbs)Output Connector: Grey SB 50A AndersonSuitable for Battery type: 8S 25.6V 24V LiFepo4 BatteryAC Input: 100~120Vac, 50/60HzOutput Voltage: 29.2 Volt Output Current: 20 AmpBattery Protection: SCP,OVP,OCP,OTPCharging Mode: Constant current - Constant Voltage - Trickle: Three-stage intelligent chargingCharging efficiency: ≥90% (full load)Working temperature: -5 ℃ ~ +40 ℃Storage temperature: -40 ℃ ~ +70 ℃AC power cord, DC connector can be customized.Operating Instruction1. Before charging, please connect the DC terminal to battery first, and then connect the AC terminal.2. After charging complete, unplug the AC terminal firstly, and then unplug the DC terminal.3. No charging or after charging complete, be sure to unplug the DC terminal and AC terminal.LED Indicator:LED 1 red: Power on.LED 2 red: Battery being charged.LED 2 Flash: Battery will be charged completely soon.LED 2 green: Battery has been charged completely.Package:1* 29.2V 20A charger1* US standard power cable1* Operating manual1* Fuse for replacing

• DC plug by default is sent by product image: Gray 50A Anderson,Suitable for Battery type: 8S 24V LiFepo4 Battery Pack
• DC Output: 29.2 Volt/ 20 Amp; AC Input: 100~120Vac,Cannot be used under 220V, 50/60Hz, Provide 1* US standard power cable and 1* Fuse Can be Changed By Yourself
• Three-stage Intelligent Charging Mode: Constant Current - Constant Voltage - Trickle to Ensure Battery Fully Charged
• Over voltage,Over Current,Short Circuit Protection,and Reverse Protection
• With LED Indicator light and Cooling Fan, Aluminum Shell Beautiful and Durable, Cooling Faster
