250W 110V AC Gear Motor with Variable Speed Controller and Bracket Single-Phase Gear Reducer Motor Reversible High Torque Motor, 0-270rpm, 5K

Product parametersPlease note that the output speed of this product is 0-270rpm, but we recommend that it should not be operated at low speed for a long time. Long-term low-speed operation may cause the motor to overheat.The product includes a complete set of accessories. In addition to the motor, it is also equipped with a bracket, a reducer, and a speed regulator for your convenience. This gear adjustable motor is primarily used to reduce the speed of a series of gears, thereby producing more power torque to improve working efficiency. Material: Aluminum AlloyGear Material: SteelCoil Material: CopperType: Single-PhaseColor: GreyPower: 250WVoltage: 110V 60HzEngine Speed Ratio: 5K Torque: 8 N.mOutput Speed Range: 0-270rpm (Infinitely Adjustable Speed 0%-100%)Upper Side Length of Bracket: 10.4cm/4.1inLower Side Length of Bracket: 16cm/6.3inBracket Width: 7.5cm/3inBracket Height: 12.5cm/4.9inGovernor Size: 9 * 6 * 10cm/3.5 * 2.4 * 3.9inMotor Size: 19 * 10.4 * 8.4cm/7.5 * 4.1 * 3.3inDimension of Reduction Gearbox: 6.6 * 10.4 * 8.4cm/2.6 * 4.1 * 3.3inPacking Size: 33*26*13cm/12.99*10.23*5.11inNet Weight: 7.3kg/16.09lbsApplication: This product is widely used in industrial assembly lines, intelligent equipment, printing machinery, textile machinery, instrumentation, food machinery, power transmission and transformation equipment, road gate machines, medical equipment, logistics equipment, and other industries.Package Included1 x Motor1 x Reduction Gearbox1 x Governor1 x BracketNotes1.When the motor is working, it is normal for the temperature to rise to about 65℃/149℉. Please rest assured that it will not affect your use.2.Please do not knock the motor and the body of the governor.

• 【Product parameters】Single-Phase; Power: 250W; Voltage: 110V 60Hz; Ratio: 5K; Torque: 8 N.m; Speed Regulator Size: 3.5 * 2.4 * 3.9in; Motor Size: 7.5 * 4.1 * 3.3in; Dimension of Reduction Gearbox: 2.6 * 4.1 * 3.3in.(Please note that the motor should not run at a low speed for long periods. Long-term low-speed operation may cause the motor to overheat)
• 【High quality】The shell of the gear reduction motor is made of high quality aluminum alloy, which is strong and durable and can protect the internal parts well. High precision steel gears are used, effectively increases the torque of the motor. The indicator light of the speed regulator will light up after power is applied. The side is equipped with a threaded speed knob, speed scale plate and connector wiring description, and a one-touch power switch for easy and convenient operation.
• 【Flexible to use】Our variable speed electric motor is mainly used to reduce the speed of a series of gears to produce more power torque. The output speed range is adjusted from 0% to 100% (0-270rpm) by the speed knob on the speed regulator. Forward and reverse rotation is possible. Initially, forward rotation is specified, but you can connect the wires on the C-C-W to the C-W, which can then be converted to reverse rotation.

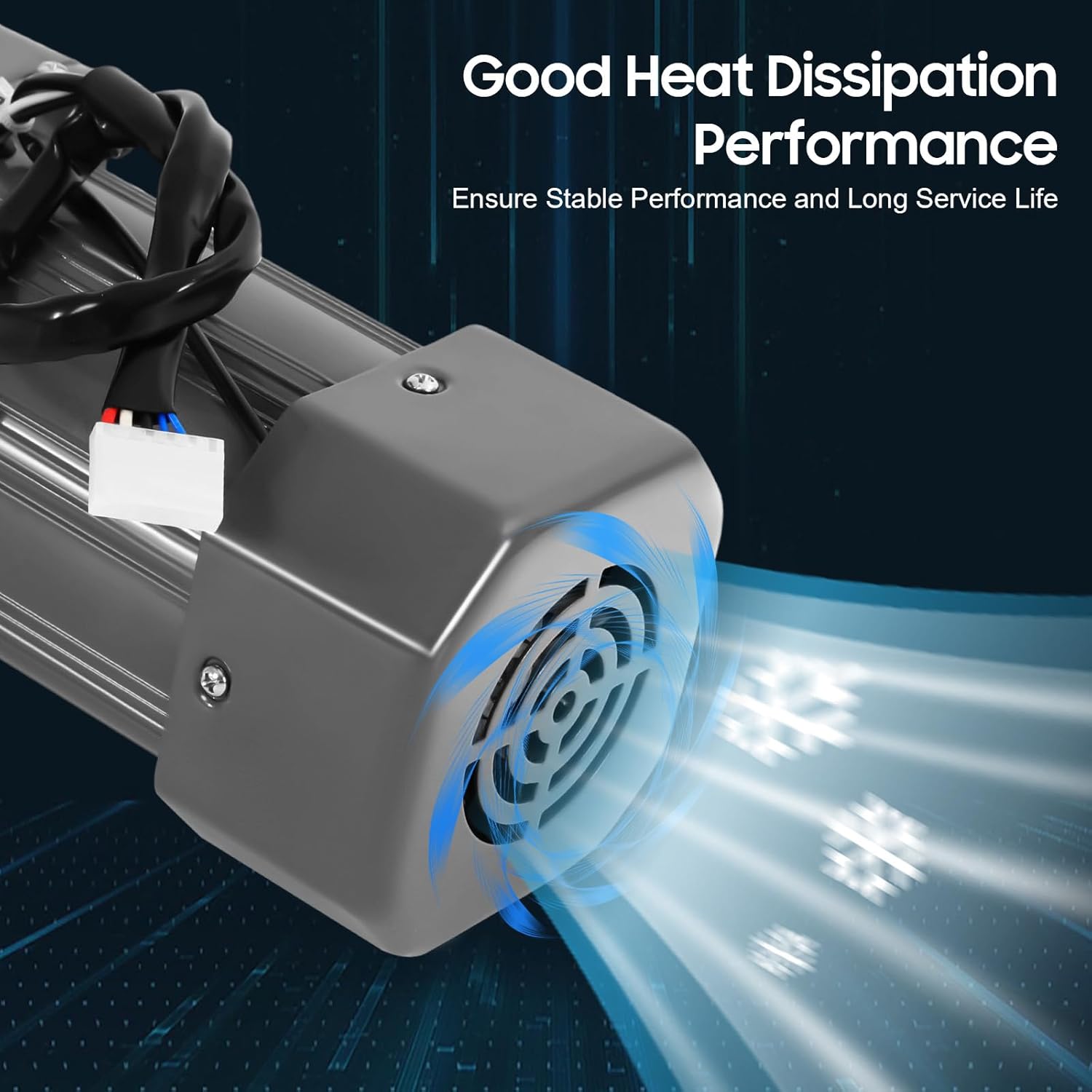

• 【Stable operation】It includes a motor, a bracket, a reducer and a speed regulator. The s-ta-tor and rotor are made of pure copper coils, which can achieve a constant high and stable power output. The motor rotor are equipped with ball bearings at both ends, which makes it run with low fri-ct-ion, generating low temperature and stable operation. The built-in fan and cooling holes provide good ventilation and heat dissipation.
• 【Wide application】The motor and gearbox are already installed, you just need to plug the regulator cable into the jack of the motor cable for quick connection. It can be widely used in packaging industry, printing industry, food, construction, machine tool industry, barbecue industry, etc. Suitable for advertising, office, sports equipment, instrumentation, stage lighting, automatic warehouse, parking lot and other equipment.
