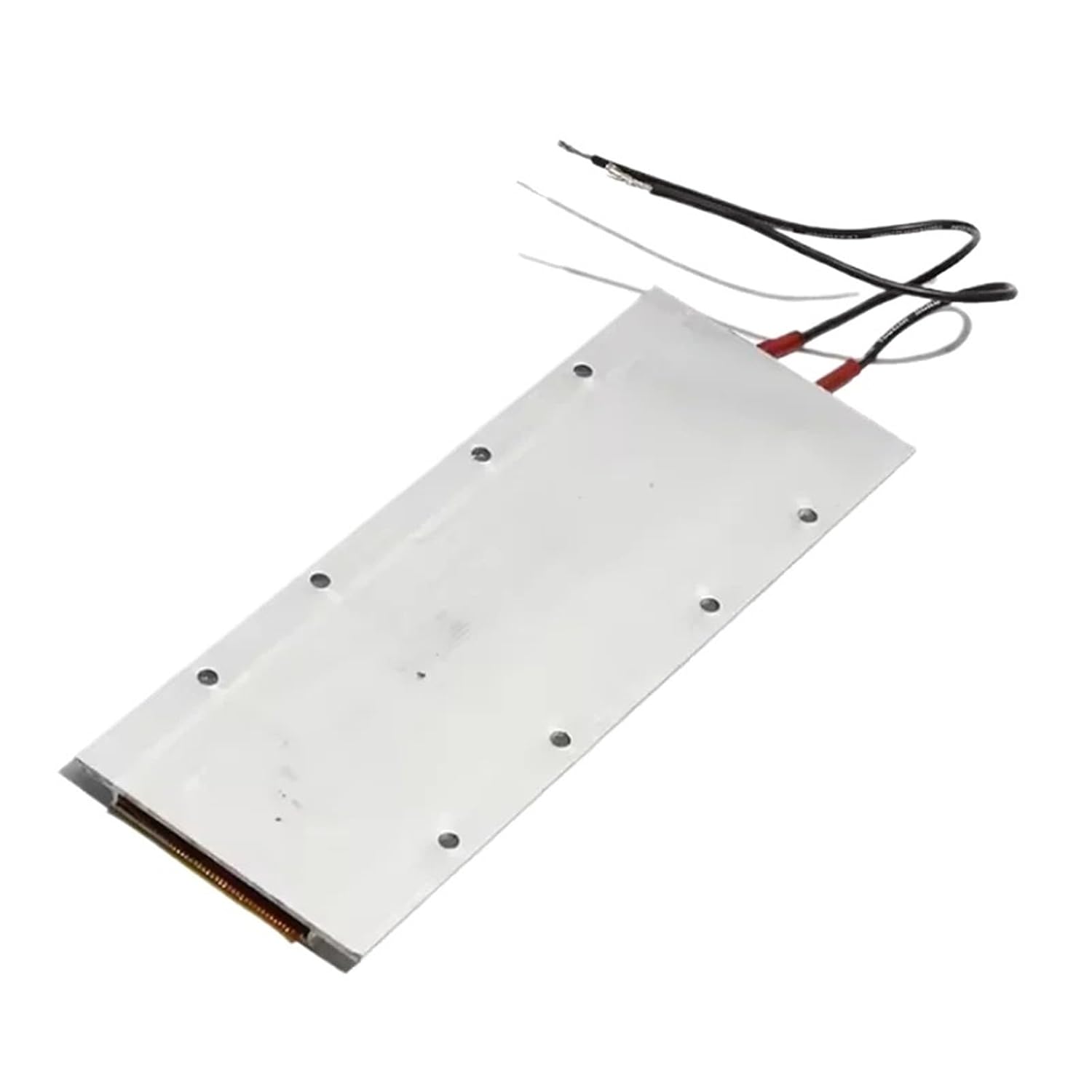

220V PTC Aluminum Heater Plate 170x62x6MM 60-150 Degrees Rectangle Temperature Heating Element Replacement 10CM Cable

220V PTC Aluminum Heater Plate 170x62x6MM 60-150 Degrees Rectangle Temperature Heating Element Replacement 10CM Cable1.Prodcut Name: PTC Heating Element2.Size: 170x62x6mm (LxWxT)3.Voltage: 220V4.Temperature: 60-1505.Shell Material: High Temperature Aluminum6.Heat Material: PTC Thermistor7.Lead Wire Material: High Temperature wire8.Lead Wire Length: about 10cm9.Advantage: Can long-term dry heat, heating fast, surface insulation10.Temperature Tolerance: ±1011.Package: 1PC PTC heating elementsPay attention: Power Allowance-10%~+5%Installation and Use1. It is strictly forbidden to use it in corrosive, flammable and explosive occasions, and it is strictly forbidden to put it into water.It is forbidden to knock and open holes.2. The wiring of multiple heating elements of the same voltage can be used in parallel, and the multiple heating elements can be installed side by side, and the heating elements cannot be overlapped and installed, otherwise the heat will be canceled.3. Multiple heating elements should be connected in parallel when used together, the more heating elements, the greater the power. 5.5 The decrease of the power supply voltage will make the heating time longer and the power smaller, but the temperature will be basically constant (temperature drop slightly).Application:1. Advantages: dry burning, energy saving, constant temperature, long life, no open flame, suitable for micro equipment low-power depyretic, preheating and damp removal.2. Usage: Electric PTC aluminum heater plate for water kettle,electric lunchbox,electric iron.It can be used in static heating foot bathtub, hair permanent clamp,heat preservation apparatus,thermos bottles,electric heating plate,electric iron,dryer,hand warmer,humidifierand other small heating appliances . A wide range of types with different designs and performance is available. 3. Power supply: directly connected to the rated voltage, AC and DC, no positive and negative poles. Taking the 12V heating element as an example, it can be connected to AC and DC 12V, and the power supply current must be greater than the maximum heating current of the heating element, otherwise the heating element cannot be bred.4. Wattage: After the PTC heating sheet is energized, the power is small to large and then small, and finally stable.Stable power is directly related to heat dissipation, fast heat dissipation, power consumption is also more, we write the maximum dissipated power, the actual use of power is less than the maximum dissipated power.Origin : Mainland ChinaProdcut Name : PTC Heating ElementSize : 170x62x6mm (LxWxT)Voltage : 220VTemperature : 60-150Shell Material : High Temperature insulating filmHeat Material : PTC Thermistor

• PTC Thermistor Heat Material:Features PTC thermistor heat material for fast, stable, and safe heat generation.
• 10CM Cable Lead Wire:Comes with a 10cm cable lead wire, offering ample length for installation flexibility.
• 60-150℃ Adjustable Temperature Range:Offers a versatile 60-150℃ temperature range, catering to various heating needs.
• High Temperature wire Lead Wire:Equipped with high temperature wire, this heating element resists wear and tear.
• Heater Plate|Heater Plate 220v|High Temperature Aluminum Shell:Constructed with a robust high temperature aluminum shell, ensuring durability and longevity.
