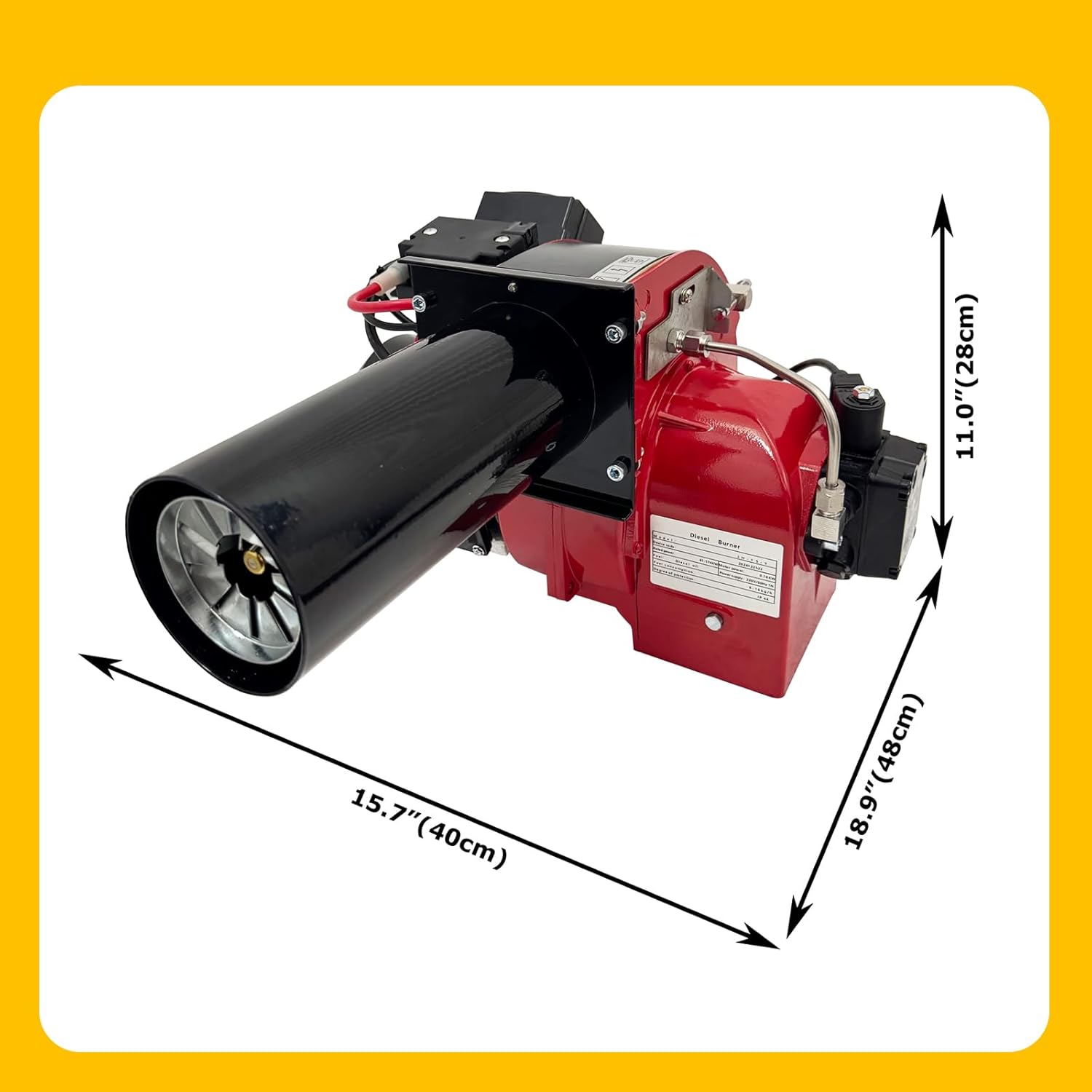

220V 1PH Single Stage Burner Fire Burning Machine Light Oil Heater 17.6-35.3lbs/h(8-16kg/h)

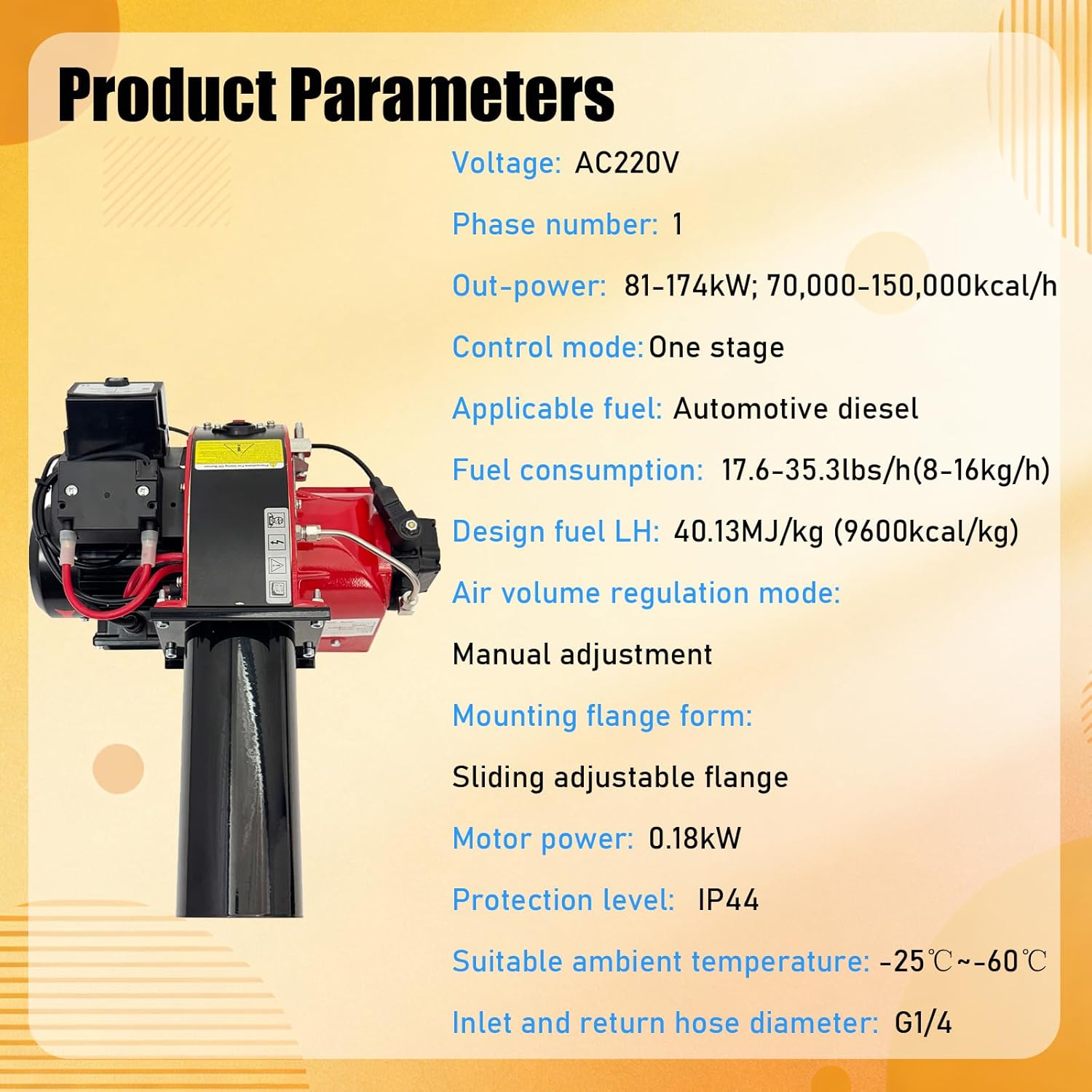

Specification Voltage: AC220V Phase number: 1 Out-power: 81-174kW; 70,000-150,000kcal/h Control mode: One stage Applicable fuel: Automotive diesel Fuel consumption: 17.6-35.3lbs/h(8-16kg/h) Design fuel LH: 40.13MJ/kg (9600kcal/kg) Air volume regulation mode: Manual adjustment Mounting flange form: Sliding adjustable flange Motor power: 0.18kW Protection level: IP44 Suitable ambient temperature: -25℃~-60℃ Inlet and return hose diameter: G1/4 Package Dimensions 22"*20"*15"; 30pounds

• [Nozzle] The nozzle atomizes into fine particles, expanding its air contact area for more complete combustion and enhanced combustion efficiency. Saving fuel and reducing energy consumption. The use of nozzles ensures more thorough atomization, improving combustion efficiency and completeness.
• [Fuel Pump] The oil pump draws diesel from the fuel tank and delivers it to the injector nozzle, with high-pressure output, strong durability and precise control for the burner’s efficient, stable operation.
• [Air Regulating Damper] The air damper optimizes the air-fuel mixing ratio to the ideal level by adjusting air flow, boosting combustion efficiency and stabilizing the combustion process. High heating temperature; simple operation with automatic ignition, requiring no manual intervention once the burner is operating normally.
• [Controller] Built-in controller for full automation (auto ignition/start, fault alarm & safe shutdown); compatible with heated equipment systems, supports remote control & one-touch start/stop.
• [Applied Range] Suitable for fuel oil boilers, industrial boilers, hot water boilers, and steam boilers; food machinery (such as hot air rotary furnaces), coating equipment (such as paint baking equipment, paint removal furnaces), textile machinery (such as singeing machines, ironing equipment), road construction machinery, industrial kilns, ceramic equipment, and other thermal energy combustion equipment.
