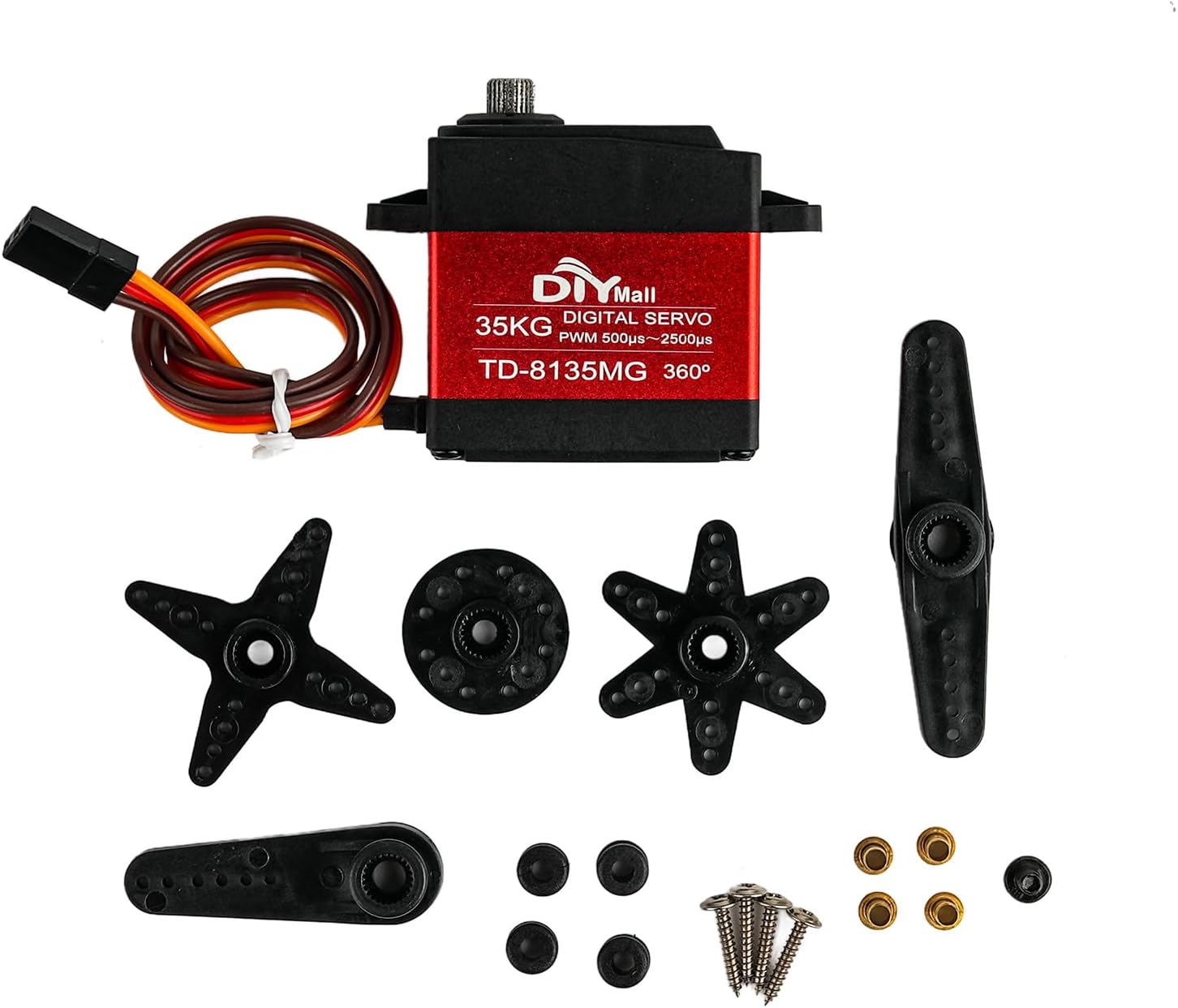

2 Sets TD-8135MG 35KG 360 Degree Servo Full Metal Gear High Voltage Continuous Rotation Digital Servo for RC Car Robotic Airplane

DIYmall 2 Sets TD-8135MG 35KG 360 Degree Servo High Voltage Continuous Rotation Digital Servo for RC Car Robotic Airplane Note: 360 degrees is a continuous rotation, and the angle and speed cannot be controlled. Specifcation: Storage Temperature Range: -30°C～80°C Operating Temperature Range: -25°C～70°C Temperature Range: -25°C～70°C Humidity Range: 65%±10% Size: 40.0*20.5*40.5mm Weight: 84g±5% Gear type: 5 Metal Limit angle: 360° Bearing: 2BB Horn gear spline: 25T; D:6.0mm H4.0mm Horn type: Plastic, POM> Case: Engineering plastics(PBT)+Aluminum alloy Connector wire: 320mm±5mm Motor: Carbon brush motor Splash water resistance: yes Operat voltage: 4.8V~8.4V No load speed: 0.32sec/60°(4.8V); 0.22sec/60°(8.4V) Runnig current: 140mA(4.8V); 200mA(8.4V) Peak stall torque: 32.7kg.cm(4.8V); 35.2kg.cm(8.4V) Stall current: 2800mA±10%(4.8V); 3800mA±10%(8.4V) Working voltage range: 4.8-8.4V Command signal: Pulse width modification Amplifier type: Digital controller Pulse width range: 500～2500usec Neutral position: 1500usec Running degree: 360°±3°(when 500～2500usec) Dead band width: 3 usec Rotating direction: Counterclockwise (when 1000～2000usec) Package Includes: 2 X 35KG 360 Degree Continuous Rotation Servo

• Note: 360 degrees is a continuous rotation, and the angle and speed cannot be controlled
• Operat voltage: 4.8V~8.4V
• No load speed: 0.32sec/60°(4.8V); 0.22sec/60°(8.4V), Peak stall torque: 32.7kg.cm(4.8V); 35.2kg.cm(8.4V)
• Command signal: Pulse width modification; Pulse width range: 500～2500usec; Running degree: 360°±3°(when 500～2500usec)
• What you will get: 2 Sets TD-8135MG 35KG 360 Degree Continuous Rotation Servo
