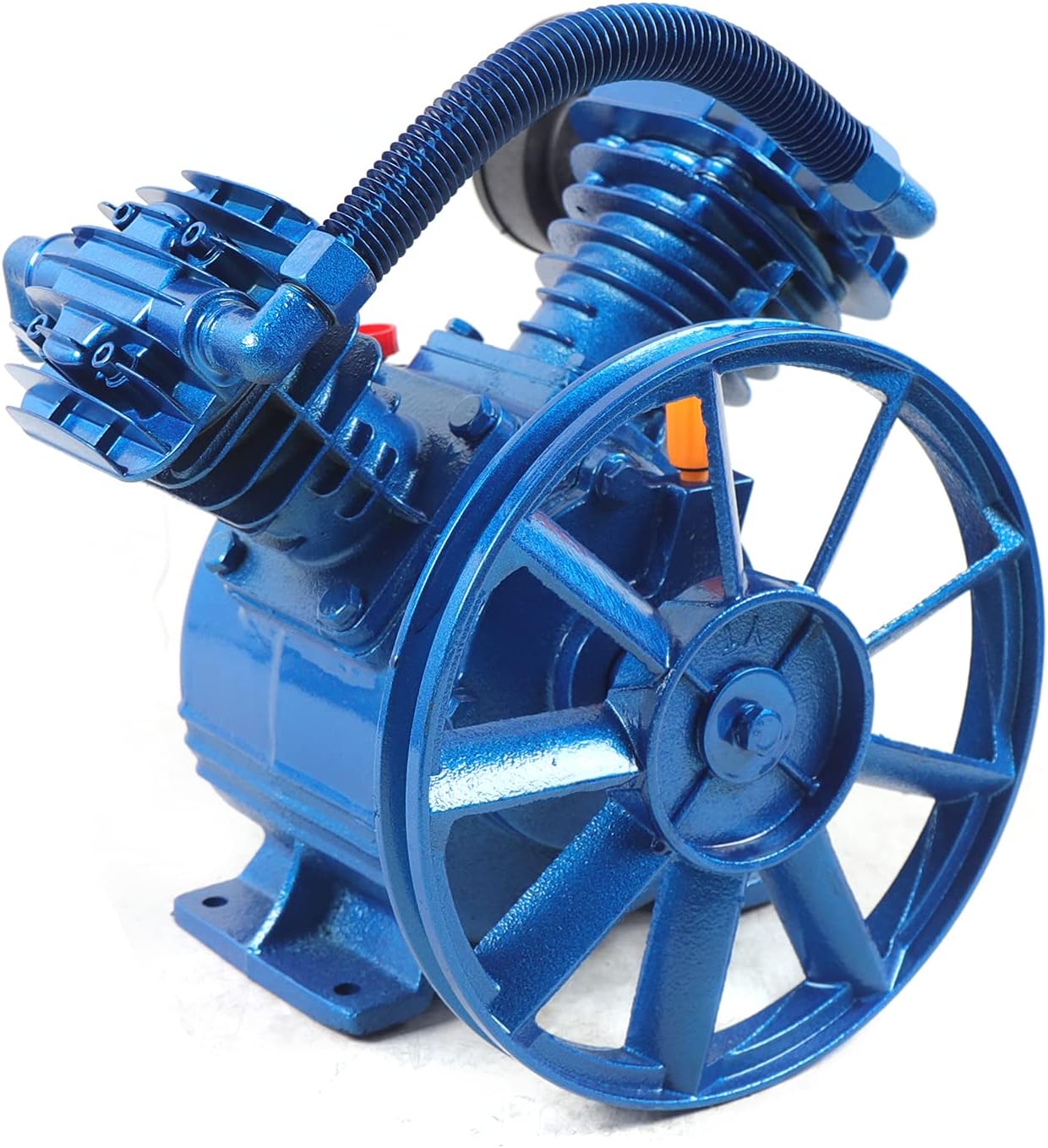

2-Piston V Style Twin Cylinder Air Compressor Head Pump,2200W 1050rpm Universal Air Compressor Head Motor, Air Compressor Pump Replacement Parts, for Factory Auto Repair Painting (Style 1)

Specifications: Power：2200W, 3HPCylinder：65 * 2Exhaust Capacity：250L / Min（8.8cfm)Discharge Pressure：8 Bar（115 PSI）Speed：1050rpmApplication Of Air Compressor: Factory, Home Decoration, Auto Repair, Painting, EtcNote: If The Motor Speed Is 2880rpm, The Diameter Of The Motor Wheel Is 10 Cm. If The Motor Speed Is 1440rpm, The Motor Wheel Is 20 CmProduct Size:34*26*33cm/13.4*10.2*13inNet Weight:13.5kgGross Weight:16.08kgPacking List:1 x Air Compressor Pump HeadInstallation Notes:1、 When Placing The Pump Head, The Motor Pulley And The Belt Pulley Must Be In The Same Straight Line. The More Aligned, The Less Vibration.2、 Tighten The Screws (Including The Base And Pulley Screws).3、 After The Screws Are Installed, The Belt Shall Be Tightened. If The Belt Is Loose, Please Move The Motor. After The Screws Are Tightened, Reinstall The Belt.4、 The New Machine Must Be Filled With Engine Oil Before Starting, And The Engine Oil Shall Be Added To The Center Of The Red Point Of The Oil Mirror.5、 The Rotation Direction Of The Pump Head Is Clockwise. If It Reverses, Please Adjust It In Time.6、 Change The Oil For The First Half Month, The Second One And a Half Months, And The Next Two To Three Months.7、 Replace The Air Filter Regularly. Under Normal Conditions, It Must Be Replaced In Two To Three Months, And In Case Of Poor Environment, It Must Be Replaced In One Month.8、 The Operation Of The Machine Will Produce High Temperature, Be Careful Not To Burn!

• 【Air Compressor Pump】With the high exhaust efficiency, low noise, smooth operation and less fuel consumption, it’s the best choice for you. Power：2200W, 3HP; Cylinder：65 * 2; Exhaust Capacity：250L / Min（8.8cfm); Discharge Pressure：8 Bar(115 PSI); Speed：1050rpm; Application Of Air Compressor: Factory, Home Decoration, Auto Repair, Painting, Etc; Note: If The Motor Speed Is 2880rpm, The Diameter Of The Motor Wheel Is 10 Cm. If The Motor Speed Is 1440rpm, The Motor Wheel Is 20 Cm; Product Size:34*26*33cm/13.4*10.2*13in.
• 【Sturdy Structure】Equipped with an iron construction with cast cylinder sleeves, this pump head is designed for a long time use and is easy for maintenance. V type twin cylinder air compressor pump head is not easy to damage.
• 【High Efficient Work】High efficiency, high precision, universal, low energy consumption. High quality material, not easy to damage.Strict balance support and correction to ensure the smooth operation of the main engine.
• 【Excellent Performance】Special valve steel is used for hair piece, which has good strength and toughness at high temperature.Faster inflation and low noise.Strong cooling blade, good cooling performance.
• 【Installation Notes】1. When placing the pump head, the motor pulley and the belt pulley must be in the same straight line. The more aligned, the less vibration.2.Tighten the screws (including the base and pulley screws).3.After the screws are installed, the belt shall be tightened. If the belt is loose, please move the motor. After the screws are tightened, reinstall the belt.
