2 In 1 Air Chamfer Tool Deburring Tool, Green Mini Pneumatic Chamfering Machine 45 Degree Arc Corner Beveling Trimming Machine with Replace Blades (C+R Angle Blades)

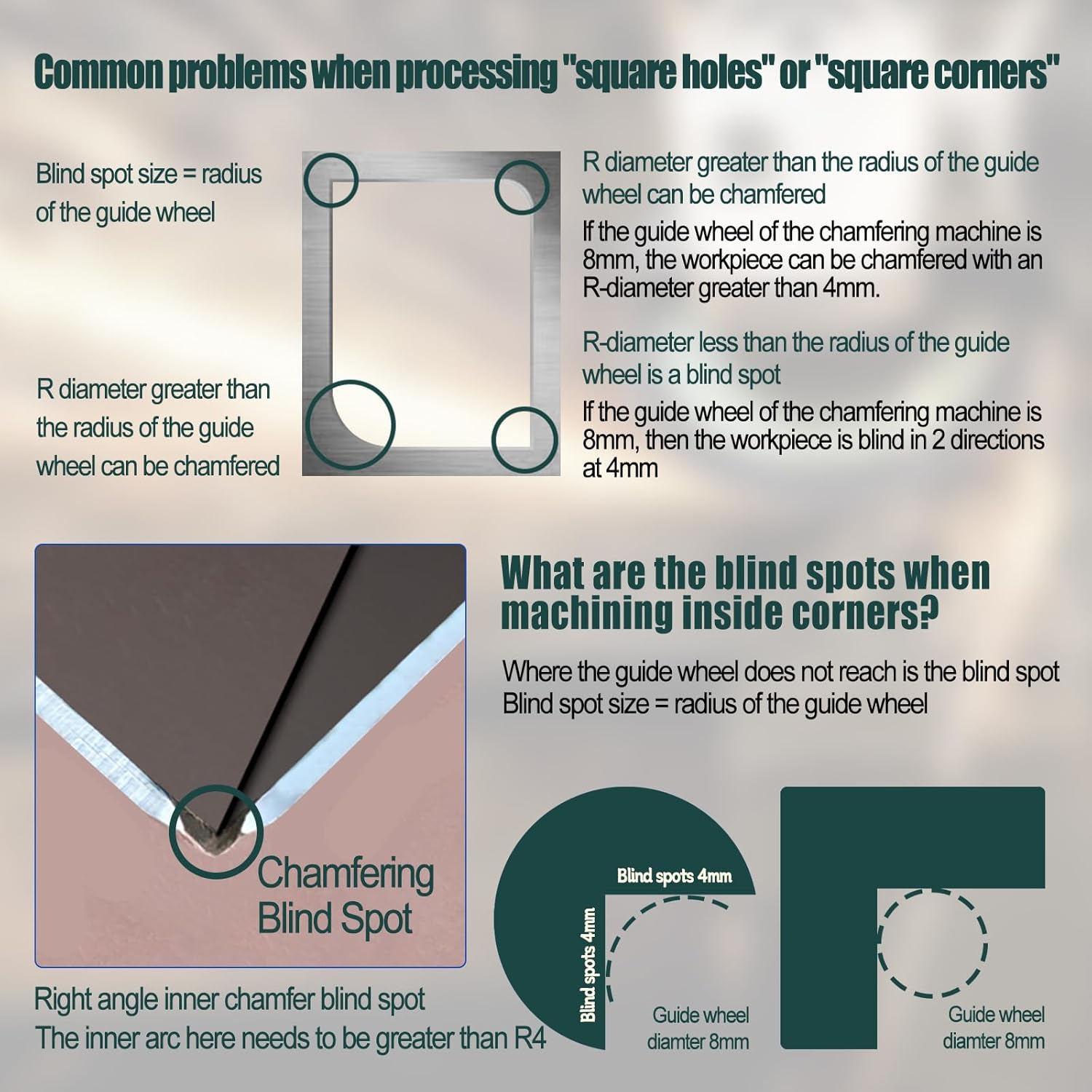

Chamfering Hole Diameter≥8mm Chamfering Ability: C0.1-C2 / ARC cormor: R0.1-R1.5 Rotational Speed: 30000RPM Working Pressure: 0.4-0.6MPA Adjustable Depth: 0.1-0.9mm Chamfer Plate Thickness: >3mm Chamfer range: ≤1.5mm Air consumption: 0.4m³/minute Chamfer range: Minimum aperture≥8mm, Minimum radius≥4mm Minimum depth≥5mm Thinnest thickness≥3mm Blind spot size = radius of the guide wheel R diameter greater than the radius of the guide wheel can be chamfered lf the guide wheel of the chamfering machine is 8mm, the workpiece can be chamfered with an R-diameter greater than 4mm. R-diameter less than the radius of the guide wheel is a blind spot lf the guide wheel of the chamfering machine is 8mm, then the workpiece is blind in 2 directions at 4mm. Maintenance Tips: 1. Before using the new machine, please inject pneumatic tool oil and inject about 4C.C into the air inlet. After continuous use for about 3 hours, about 4C.C is also injected into the air inlet. 2. After injecting pneumatic tool oil, let the machine idling for about ten seconds (do not operate), and let the internal parts of the grinder be lubricated as a whole before proceeding. 3. It is an air compressor (air pump) for mechanical use. The output of the air compressor is about 6~8kg. Generally, most of the compressed gas of a traditional air compressor contains water, and the piston of the air compressor brings out a small part of the lubricating oil. If the oil-water separator is not used, water and oil and gas will enter the inside of the machine for a long time. The occurrence of adhesion slows down the rotation of the machine, resulting in insufficient speed and torque. In this way, the pneumatic tool oil needs to be input into the air inlet, and the machine can be used normally after idling for about ten seconds.

• Adjustable Speed and Angle: The portable deburring trimming chamfering tool air grinder 1-5 block valve adjustment thickened knob, freely adjust the gear speed you need. The chamfer size can be adjusted at will. The safety switch is used to prevent accidental touch to protect the user's safety at all times. 1/4 inch metal filter, free speed: 30000 RPM, air consumption 0.4/min.
• Stable and High Quality: The upgraded version of the pneumatic chamfer tool, the adopts plastic-steel frame shell with high-quality bearings, and is equipped with high-precision heat-treated blades for better use and smoother deburring and chamfering.
• Safe and Durable: The mini chamfering tool with safety pressure plate switch use more assured. And 1/4 Inch metal net can prevent the burr and foreign matters from entering.
• Easy Operation: This 45-degree Pneumatic mini chamfering machine air tools has a new lightweight design, small and exquisite, and can be easily operated with one hand. Use the matching wrench to easily adjust the chamfer size and replace the blade.
• Wide Application: The pneumatic beveling machine can be chamfered in the narrowest and shallowest space, suitable for various angles, such as straight edge chamfering, inner and outer round hole chamfering.
