2-3 HP Replacement Air Compressor Pump Single Stage 2-Cylinder 7 CFM Compressor Source CS2065A
Product details
| Management number | 218667059 | Release Date | 2026/05/03 | List Price | $71.98 | Model Number | 218667059 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

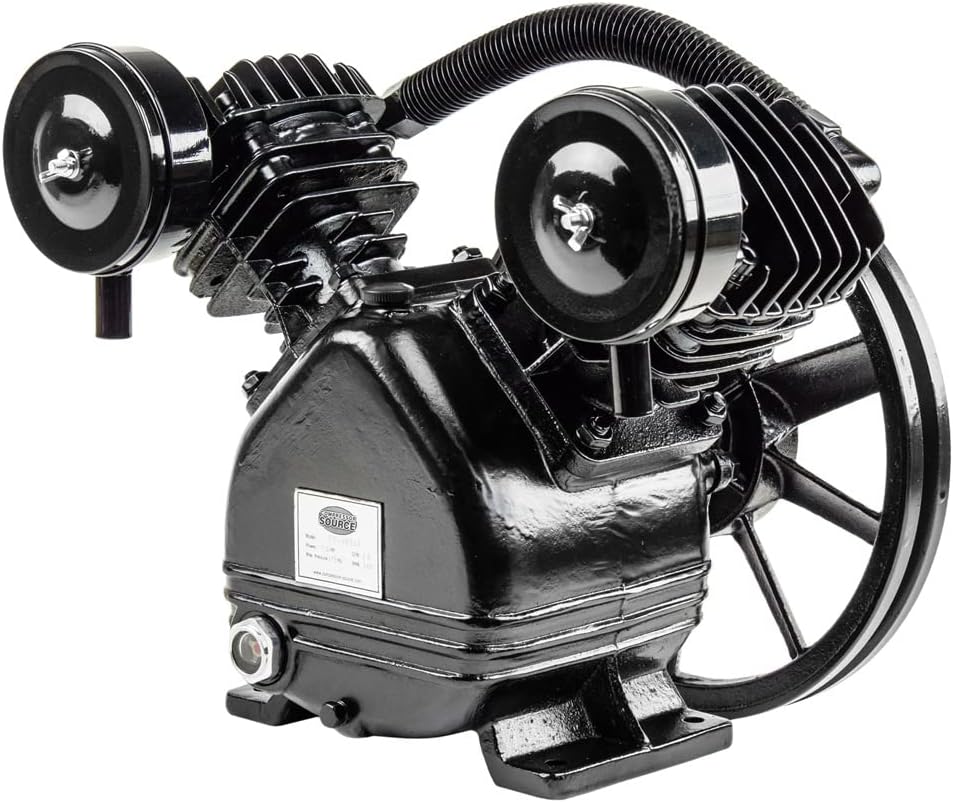

The Compressor Source CS2065A is a two-cylinder cast-iron single-stage air compressor pump. This is a 2 - 3 horsepower pump that will deliver 7 CFM at 1180 RPM with a max RPM of 1200. This pump is most commonly used on compressors under 40 gallons in size and can be used with 110-volt or 220-volt 2 and 3-horsepower motors. This pump comes complete, including intake filter and pulley. Features: Cast Iron Cylinder and Crankcase Equipped with Sight Glass for Easy Viewing of Oil Level Comes with Two Intake Filters Specifications Two Cylinder Single Stage 2 - 3 HP Recommended Pressure: 115 PSI Recommended RPM: 1000 - 1200 CFM: 7.06 at 1180 RPM Flywheel Diameter: 10.5"
- Two cylinder cast iron single stage air compressor pump.
- This is a 2 - 3 horsepower pump that will deliver 7 CFM at 1180 RPM with a max RPM of 1200.
- This pump is most commonly used on compressors under 40 gallons in size and can be used with a 110 volts or 220 volts 2 and 3 horsepower motors.
- Equipped with Sight Glass for Easy Viewing of Oil Level
- Flywheel Diameter: 267mm
| UPC | 685650087795 |
|---|---|
| Color | Black |
| Style | Portable |
| Voltage | 110 Volts |
| Capacity | 40 Gallons |
| Brand Name | compressor-source |
| Model Name | CS2065A |
| Unit Count | 1.0 Count |
| Item Weight | 37 Pounds |
| Tank Volume | 40 Gallons |
| Manufacturer | Compressor Source |
| Model Number | CS2065A |
| Power Source | Corded Electric |
| Material Type | Cast Iron |
| Maximum Power | 2 Horsepower |
| Maximum Pressure | 115 Pound per Square Inch |
| Motor Horsepower | 2 Horsepower |
| Air Flow Capacity | 7 Cubic Feet Per Minute |
| Maximum Horsepower | 2 Horsepower |
| Additional Features | Double Cylinder |
| Included Components | 1 Pump |
| Manufacturer Part Number | CS2065A |
| Recommended Uses For Product | pulley |
