110v Gear Lubrication Pump, 2L Automatic Lubricating Oil Pump with Pressure Gauge, Single Digital Display Mode, Lubrication Pump for CNC Machine Tools

Voltage:110V Capacity: 2L Working Pressure: 10kg Working Principle Type: Gear Pump Adjustment Methods for Running Time and Intermittent Time: 1. Running Time Adjustment: - When the green light of "ACT" on the display is on, it means the current display is the running time. - If you want to adjust the running time, please turn on the power first, then press and hold the "SET" button for 3 seconds, after hearing the beep, the yellow light will be on, indicating that it has entered the running time adjustment mode. Adjust the running time by pressing the "▲" and "▼" keys. Running time range: 1-999 seconds. - When the adjustment is finished, press and hold the "SET" key again for 3 seconds to confirm the setting, and you will hear a beep and the red and yellow lights will be on at the same time, indicating that the working time setting is finished. 2. Intermittent Time Adjustment: - When the red light of "INT" on the display is on, it means the current display is the interval time. - To set the interval time, please turn on the power first, then press and hold the "SET" key for 3 seconds to enter the adjustment mode, and press the "▲" and "▼" keys to adjust the interval time. Interval time range: 1-999 minutes. - After adjustment finished, press and hold the "SET" key again for 3 seconds to confirm the setting. - If you need to change the unit of interval time from minutes to seconds, please turn on the power first, and then press and hold down the "SET" key for about 10 seconds until you hear a long beep. 3. Setting Verification: After completing the above settings, let the oil pump work for one cycle and observe whether the actual running time and interval time are consistent with the settings. Attention: 1. Please add lubricating oil before use and then turn on the power. 2. Please use clean lubricating oil (prohibit the use of recycled lubricating oil and all kinds of high concentration of lubricating oil).

• Fully Automatic Oil Dispensing: You can set the running time and intermittent time independently according to the use demand, and the lubricating oil pump can automatically control the oil dispensing volume. Running time: 1-60 seconds. Internal time: 1-999 minutes.
• Digital Display: The running time and interval time of the gear lubricating oil pump are displayed in turn, which allows you to accurately grasp the process of discharging oil.
• Equipped with Pressure Gauge: The automatic lubrication oil pump is equipped with a pressure gauge, which measures the output pressure of the lubricating oil pump by sensing the pressure difference.

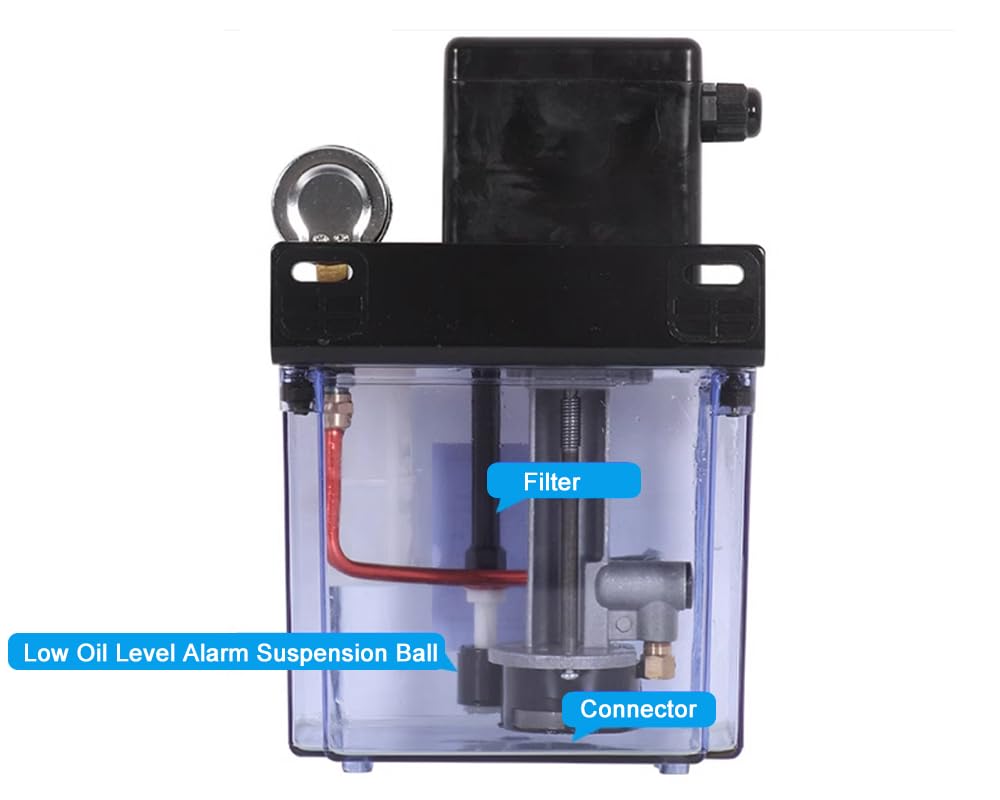

• Low Oil Level Alarm: The lubrication oil pump is equipped with a low oil level alarm float, when the oil level is insufficient, it will send out an alarm in advance to remind you to add lubricating oil in time.
• Application: Gear pump lubricating oil pump is suitable for CNC machine tools, milling machines, machining centers, engraving machines, cutting machines, injection molding machines, die-casting machines and other equipments.
