11" Engine Transmission Oil Cooler 6" Inch Electric Cooling Fan & 6AN In-line Hose Thermostat Switch Wiring Kit (180'F On - 165'F Off)
Product details
| Management number | 215319207 | Release Date | 2026/04/12 | List Price | $43.98 | Model Number | 215319207 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
American Volt universal heavy duty transmission oil cooler kit. Preserve the life of your transmission and improve towing performance. Fits wide range of applications from sub-compacts to motorhomes. Internal turbulation increases heat transfer with minimal pressure drop. 100% pressure tested at 150 PSI for quality assurance. High efficiency turbulation and ultrasonically soldered for reliability. Pre-drilled mounting brackets for easy installation. Mounting kit, hose and installation instructions included. Specs: Fittings: 3/8" inch push-on style GVWR: Up to 20,000 pounds Towing: Up to 2,500 pounds Dimensions: 11" x 7.5 x 0.75 Application: Mid-size and full-size cars, pick-up trucks and vans. Electric Fan: American Volt high performance 8 inch 12V electric cooling fan. Custom upgraded 90 watt motor produces more CFM air flow volume. Fan motors are sealed to be water and dust resistant, increasing longevity. Fan is configured by default as an air puller out of the box. Durably built to be shock resistant for on-road and off-road vehicle applications. Includes shroud mounting feet attachments and complete mounting strap kit. Specs: Blade Size - 6 Inch Blade Type - Straight Motor Size - 90 Watts CFM Rating - 700 RPM Rating - 2250 Amp Draw - 8 Amps Material - Plastic Shroud/Steel Motor Dimensions - 7.15" x 7" x 2.5" thickness at center and 1.5" thickness at edge Thermostat Kit: Universal inline hose thermostat kit for any automotive vehicle. Adapter size is 6AN male with barb push-on hose fittings. Circuit closes at selected turn-on temperature and powers your fan. Mounts anywhere on the transmission oil cooler hose near the inlet. Measures all fluid/liquid temperatures including water, coolant and oil. AC/Manual override circuit included with lighted toggle switch. Installation instructions included.
- Light duty engine transmission oil cooler with 6 inch electric fan.

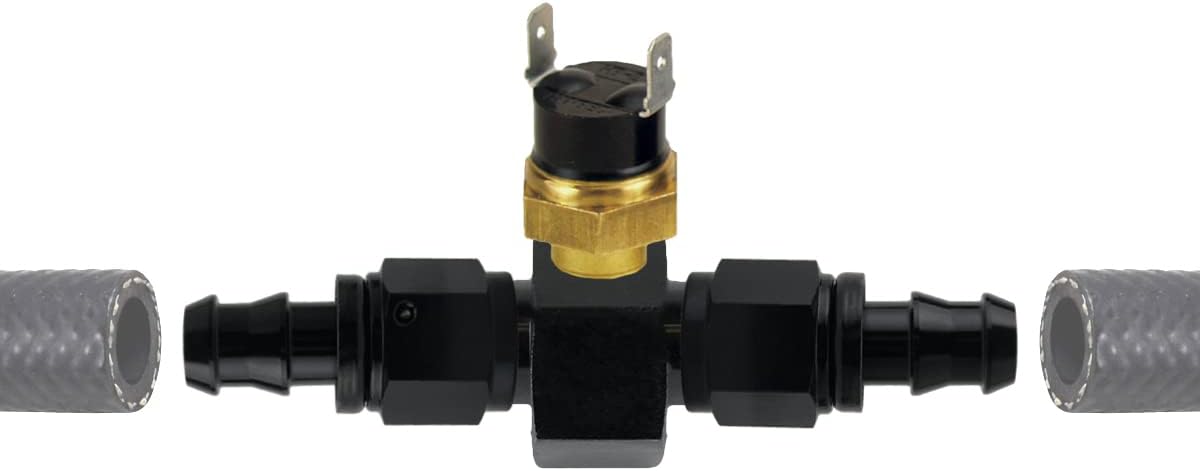

- 6AN in-line hose temperature thermostat switch relay wiring kit.
- Preserve the life of your transmission and improve tow performance.
- GVWR: Up to 30,000 pounds and Towing: Up to 10,000 pounds.
- Dimensions: 7.15" x 7" x 2.5", Fittings: 3/8" inch push-on style.
| Color | Black |
|---|---|
| Brand Name | American Volt |
| Unit Count | 1.0 Count |
| Item Length | 11 Inches |
| Item Weight | 5 Pounds |
| Manufacturer | American Volt |
| Material Type | Metal |
| Maximum Pressure | 150 Pound per Square Inch |
| Outside Diameter | 0.38 Inches |
| Item Dimensions L x W | 11"L x 7.5"W |
| Nominal Wall Thickness | 0.095 inches |
