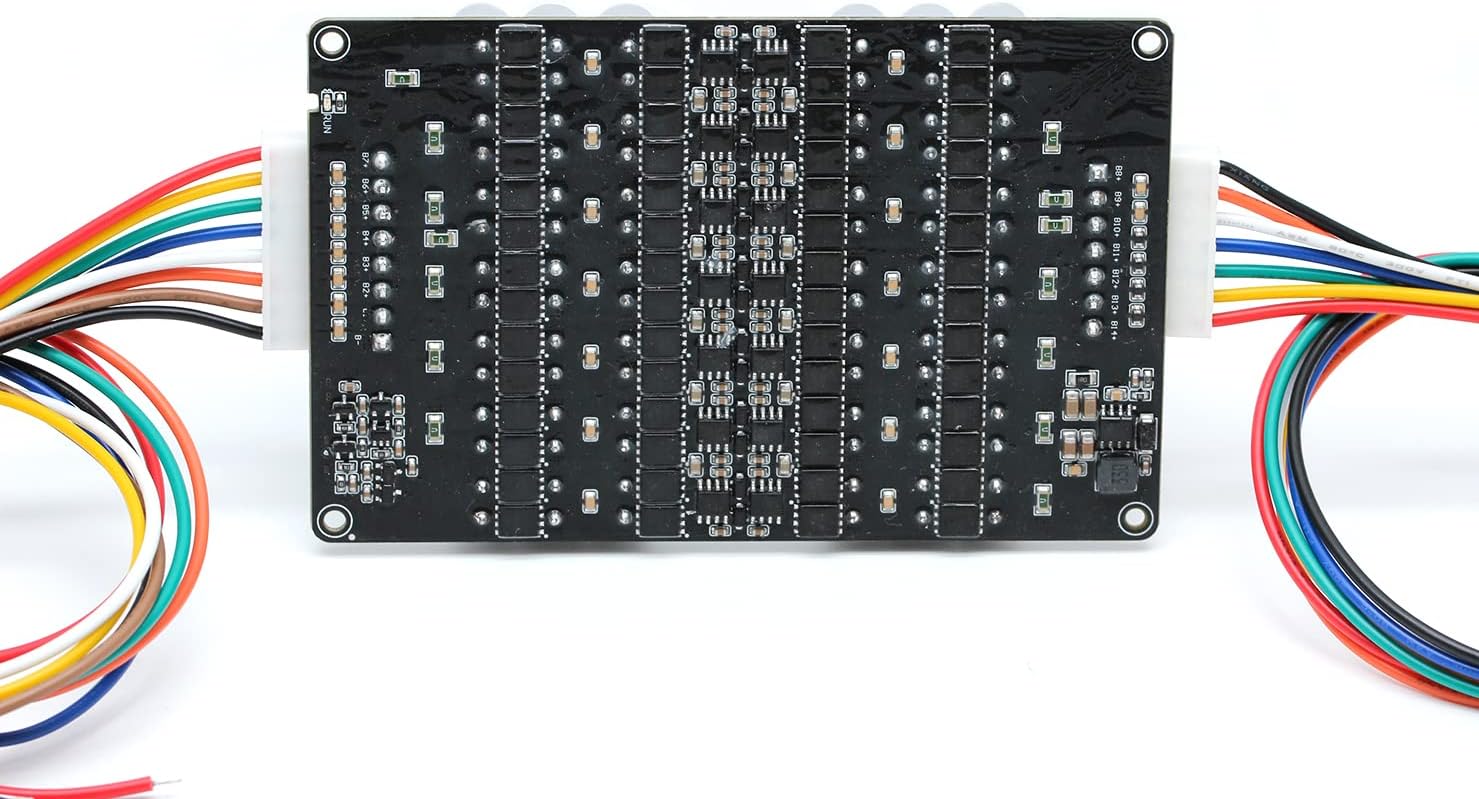

10S-14S 13S 12String 5A Capacitor Active Equalizer Lifepo4 Lithium Lipo/Titanate LTO Battery Energy Active Equalization BMS Balancer Module Whole Group Balancer
Product details
| Management number | 216127821 | Release Date | 2026/04/19 | List Price | $18.80 | Model Number | 216127821 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Usage Tips: The voltage gap of each battery must be within 0.5V. When the battery voltage difference does not reach more than 0.1V, the light on the balance board is triggered by mistake. The light actually has no balance current when it lights up, and it will automatically go out after a period of time. So We suggest re-plugging the cable to solve the problem. Note that It takes time to equalize the voltage, hot is normal and it does not take effect immediately after plugging it in.
- Working Voltage: 1.8V-4.5V, suitable for NCM Ternary polymer lithium battery (Li-ion), lithium iron phosphate battery (LiFePO4), lithium titanate battery (LTO). Tips: When buyers have problems, please be sure to take the initiative to contact us, and trust us have the ability to solve your problems. (Default not contain any batteries.)
- Working Principle: Flying capacitor transfer charge transporter, Balancer board is connected to the battery to start the balance work, using the original brand new ultra-low internal resistance MOS, 2OZ copper thickness PCB. Balance current 0-5.5A, the more balanced the battery current is Small, reserved for the dormant switch wiring position, the dormant power-off mode working current is less than 0.1mA, and the balance voltage accuracy is within 5mv!
- The quiescent current is about 7mA, and the battery capacity is recommended to be used between 30-300AH/Per Balancer.High-capacity batteries can be connected in parallel with multiple equalizers. With under-voltage sleep protection, only detecting the B1 battery voltage, the equalizer will automatically stop entering the sleep state when the B1 voltage NCM/LFP<2.7V or LTO<1.8V, and the standby power consumption is less than 0.1mA.
- NOTE: Before connect the balance cable to the balance board, be sure to check whether the connections of each section of the battery pack are correct, and do a good job of insulating the bottom of the board and the battery string connection terminals. Otherwise, it will short-circuit and burn the board. Tips: This balancer board is backward compatible by default. eg. If it is used for 13-String, the last line B14+ is empty; use for 12-string, B14+ and B13+ vacant no wiring. and so on.
| UPC | 723258876172 |
|---|---|
| Brand | QINIZX |
| Color | Black |
| Plug Type | Type A, Type B |
| Unit Count | 1.0 Count |
| Item Weight | 2 Ounces |
| Manufacturer | QINIZX |
| Model Number | JW-CAP-Balancer-14S |
| Power Source | DC |
| BuiltIn Media | PCBA+Cable |
| Input Voltage | 4.5 Volts |
| Output Voltage | 4.5 Volts |
| Item Dimensions | 4.92 x 3.15 x 0.63 inches |
| Mfr Part Number | JW-CAP-Balancer-14S |
| Warranty Description | Manufacturer warranty for 90 days from date of purchase. |
