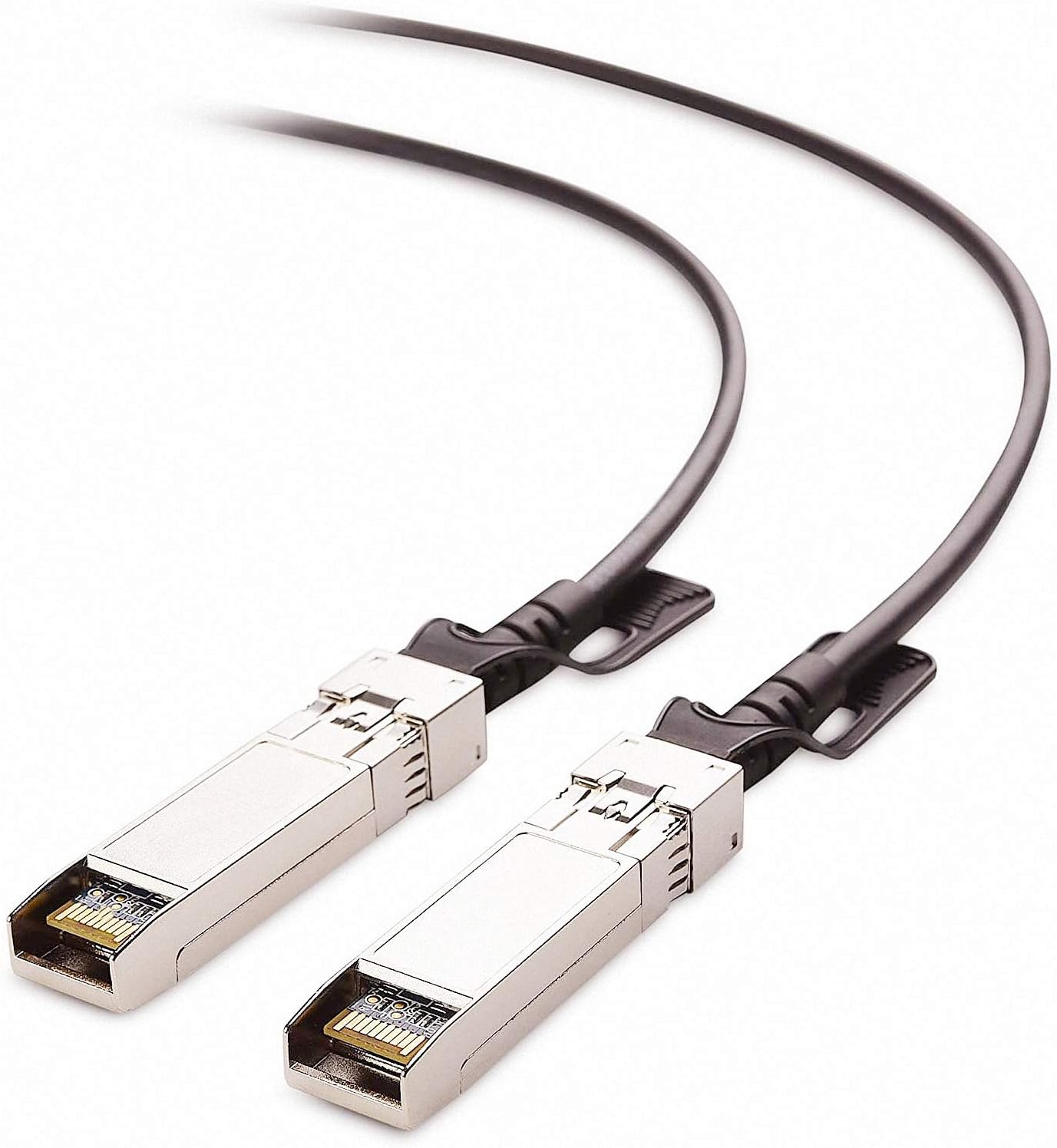

10GbE SFP+ Passive Direct Attach Copper Cable for Cisco, Ubiquiti, D-Link, Juniper, Huawei, Mellanox,Supermicro 10GBase-CU Ethernet 10Gb/s SFP+ to SFP+ DAC Twinax Cable 2m(6.6ft)

for S+DA0002 Compatible 10G SFP+ DAC Twinax Cable (2-meter, Passive, SFP+ to SFP+, 30AWG) ▶ Overview Transuton SFP+ active and passive twinax copper cable assemblies (DAC) were developed specifically as a cost-effective alternative to optical modules for short reach links in high-speed interconnect applications such as highperformance computing (HPC), enterprise networking and network storage markets. These assemblies support data transfer rates up to 10+ Gb/s per lane, meeting or exceeding current standards specifications. ▶ FEATURES ✔ Cable Color: Black ✔ Max Data Rate:10Gbps ✔ Connector Type: SFP+ to SFP+ ✔ Minimum Bend Radius: 20mm ✔ Cable Length: 2m (6.6ft) ✔ Wire AWG: 30AWG ✔ Jacket Material: PVC (OFNR) ✔ Temperature: 0 to 70°C (32 to 158°F) ✔ Protocols: 1x InfiniBand QDR, DDR, SDR, 10G Gigabit Ethernet, Fibre Channel ▶ APPLICATIONS ✔ Data com Network ✔ 10 Gigabit Ethernet ✔ Data Centre ✔ Servers, switches, storage ▶ Transuton Advantage: 10G SFP+/25G SFP28/40G QSFP+/56G QSFP+/100G QSFP28 Direct Attach Copper (DAC ) twinax cable, and Active Optical Cable (AOC), passive or active, 100% OEM Compatible, and 100% Tested,5 Years Warranty,Free Returns.

• 100% compatible with MikroTik SFP+ 10Gigabit switch, network adapter card, or network attached storage equipment,Ideal replacement MikroTik cable
• 10 GbE HIGH BANDWIDTH CABLE connects a switch, server, NIC, or transceiver for Network Attached Storage (NAS), Storage Area Network (SAN), and High Performance Computing (HPC) applications such as Fibre Channel, InfiniBand, and SONET
• PASSIVE SFP+ CABLE connects equipment up to 7 meters for high density networking environments with Top of Rack (TOR) or Middle of Row (MOR) switching requirements; Low power consumption SFP+ twinaxial cable provides a cost-effective fiber alternative to installing fiber transceivers and cables to connect a 10G network
• SFP+ Small Form Factor Pluggable Plus cable is hot pluggable with an SFP+ 20-Pin connector; Backwards compatible with 2.5G and 1GB SFP or SFP+ ports for integrating existing equipment into a 10 Gigabit switched network environment; Quick release latch provides a secure connection until the release tab is pulled
• SUPERIOR ENGINEERING of SFP cable includes 30 AWG wire and connectors with a metal die-cast backshell for superior EMI performance and minimal insertion loss; Copper SFP+ cable offers low power consumption and low latency to operate in a high bandwidth storage area network
