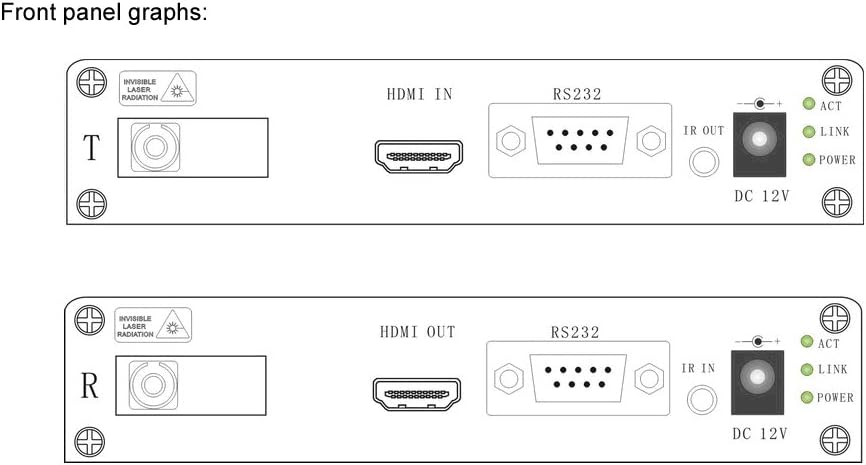

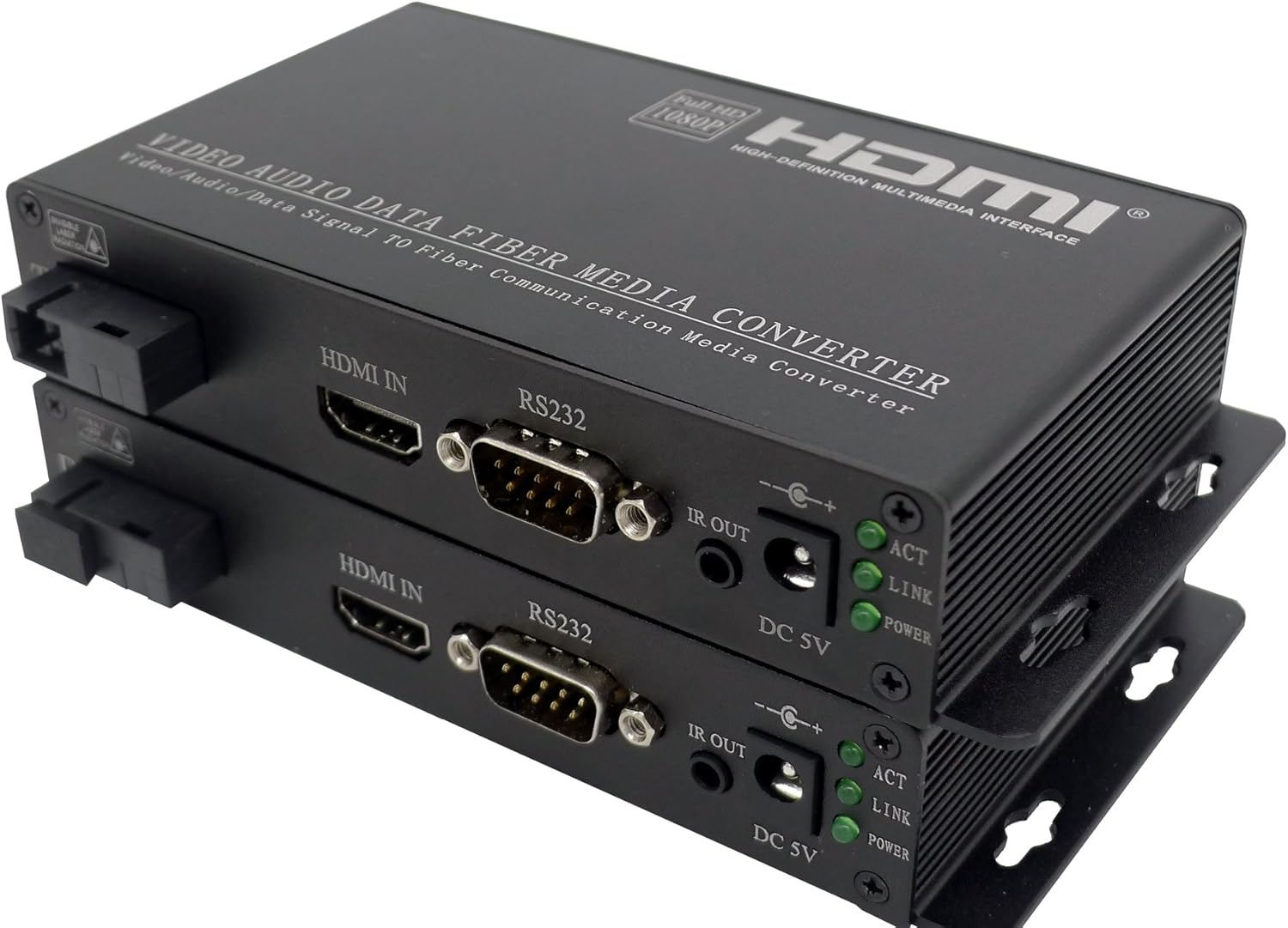

1080P HDMI over Fiber Extender, Max resolution 1920×1080@60Hz, HDMI & RS 232 & IR Fiber Optical link up to 10 Kilometer Single mode Fiber, HDCP compliance, Plug and Play.

BY-HDMI-312 includes a transmitter and a receiver. The cascaded mode between each node only through the 1 optical fiber connection, reduce the complexity of the proposal, to reduce the difficulty of construction, unlimited number of nodes cascade. BY-HDMI-312 supports HDMI video and audio transmission at real-time, max resolution support can reach 1920*1080 @ 60Hz Specifications Video: I/O connector:HDMI HDMI version:HDMI1.1 1.2 1.3 HDCP:HDCP1.2 HDMI resolution:1080p/1080i/720p/720i/576p/576i/480p/480i Video color format:24bit/deep color 30bit/deep color 36bit Audio format:DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD TMDS:0.5-1.5Vp-p(TTL) DDC:5Vp-p(TTL) Input cable length:≤20m AWG26 HDMI 1.3 standard cable Output cable length:≤20m AWG26 HDMI 1.3 standard cable Optical: Connector:1 x SC Wave length:1310nm Physical: Size (L× W ×H):157 x 81 x29 mm Case:Aluminum N.W.:0.7 Kg Power: Voltage:5~12V DC Sender power consumption:3W Receiver power consumption:3W Package: 1. 1 x transmitter. 2. 1 x receiver. 3. 2 x Power supply adapters with US/EU/UK/AU plug. 4. 1 x Manual

• Max resolution 1920×1080@60Hz
• Interface: HDMI, RS232, IR
• Extension distance: 2 Kilometers (Multi-mode fiber),10 Kilometers (Single-mode fiber)
• Single Bi-directional fiber transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play
• widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc
