104'F-230'F Digital Adjustable Dual Electric Cooling Fan 3 Inch Radiator Fin Push-in Probe Thermostat Sensor Switch Temperature Controller Wiring Kit
Product details
| Management number | 215318131 | Release Date | 2026/04/12 | List Price | $15.98 | Model Number | 215318131 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

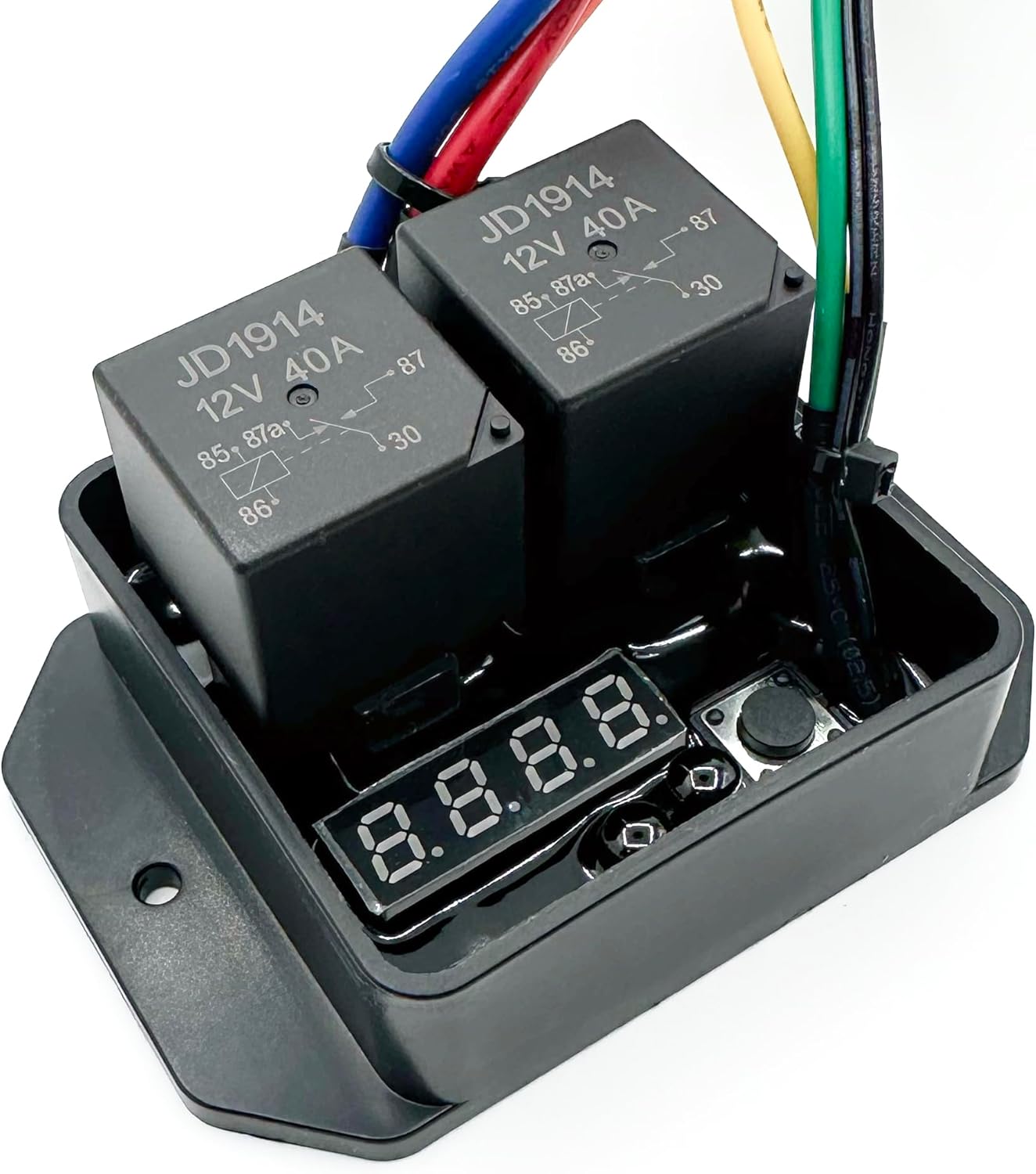

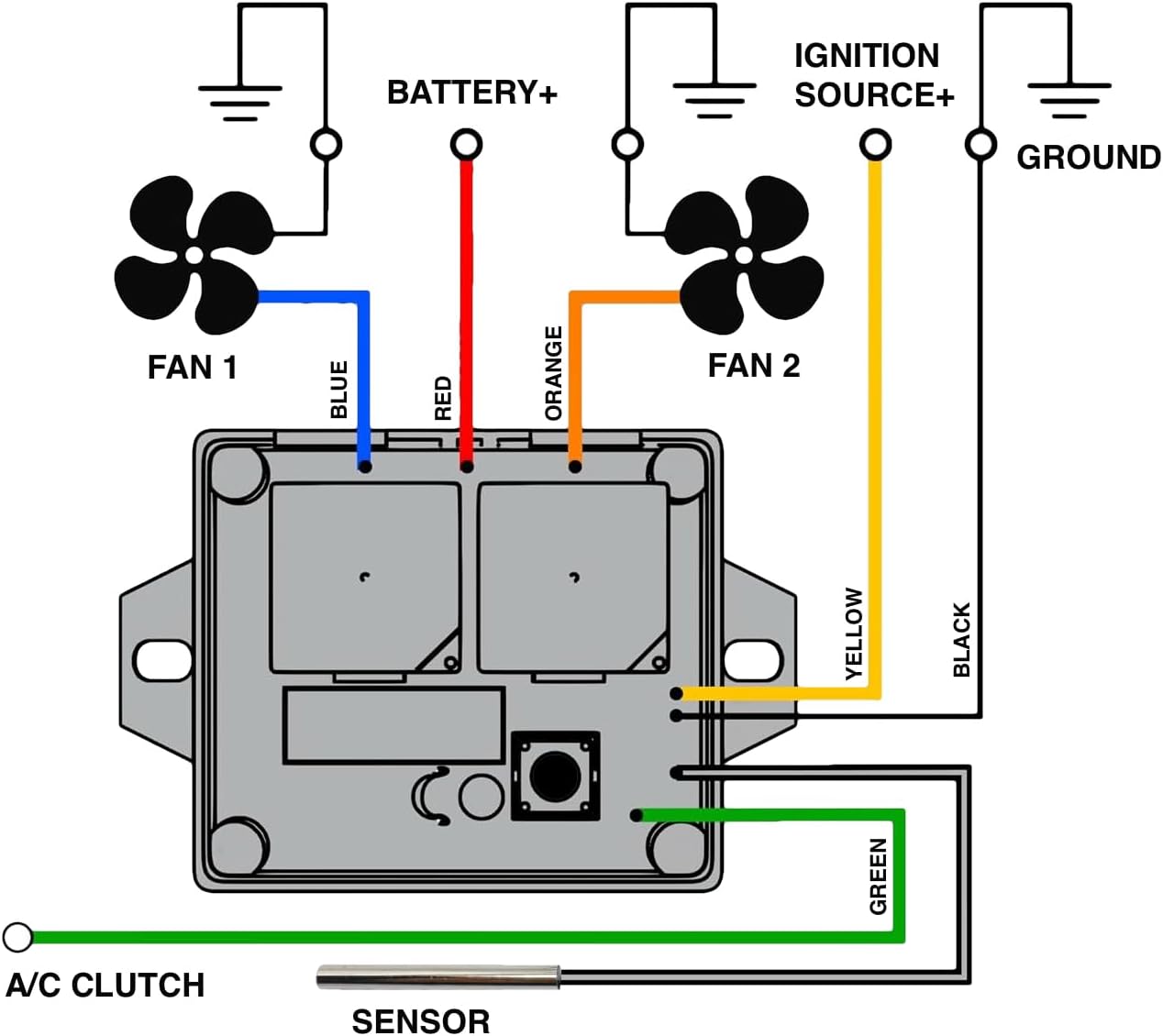

104'F-230'F digitally adjustable electric fan thermostat switch wiring kit. Temperature sensor probe inserts between radiator or oil cooler fins. 40 amp relay harness with 14AWG wire powers up to 2 electric fans. This fan switch kit is compatible with either 12 or 24 volt applications. Maximum 30 amp continuous draw with 30 amp in-line fuse per fan. A/C override or manual toggle switch wire built directly into harness. Optional second fan starts 10 seconds after first fan begins cooling. Installation instructions, wiring diagram and components included.
- 104-230'F digital adjustable electric fan thermostat switch wire kit.
- 3" temperature sensor probe inserts between radiator or cooler fins.
- 40 amp relay harness with 14AWG wire powers up to 2 electric fans.
- This fan switch kit is compatible with both 12 or 24 volt applications.
- Maximum 30 amp continuous draw with 30 amp in-line fuse per fan.
- A/C override or manual toggle switch wire built directly into harness.
- Optional second fan starts 10 seconds after first fan begins cooling.
| Brand | American Volt |
|---|---|
| Exterior | Machined |
| Position | Front |
| Item Weight | 2 pounds |
| Manufacturer | American Volt |
| Item model number | AV-D02 |
| Product Dimensions | 3 x 3 x 3 inches |
| Manufacturer Part Number | AV-D02 |
