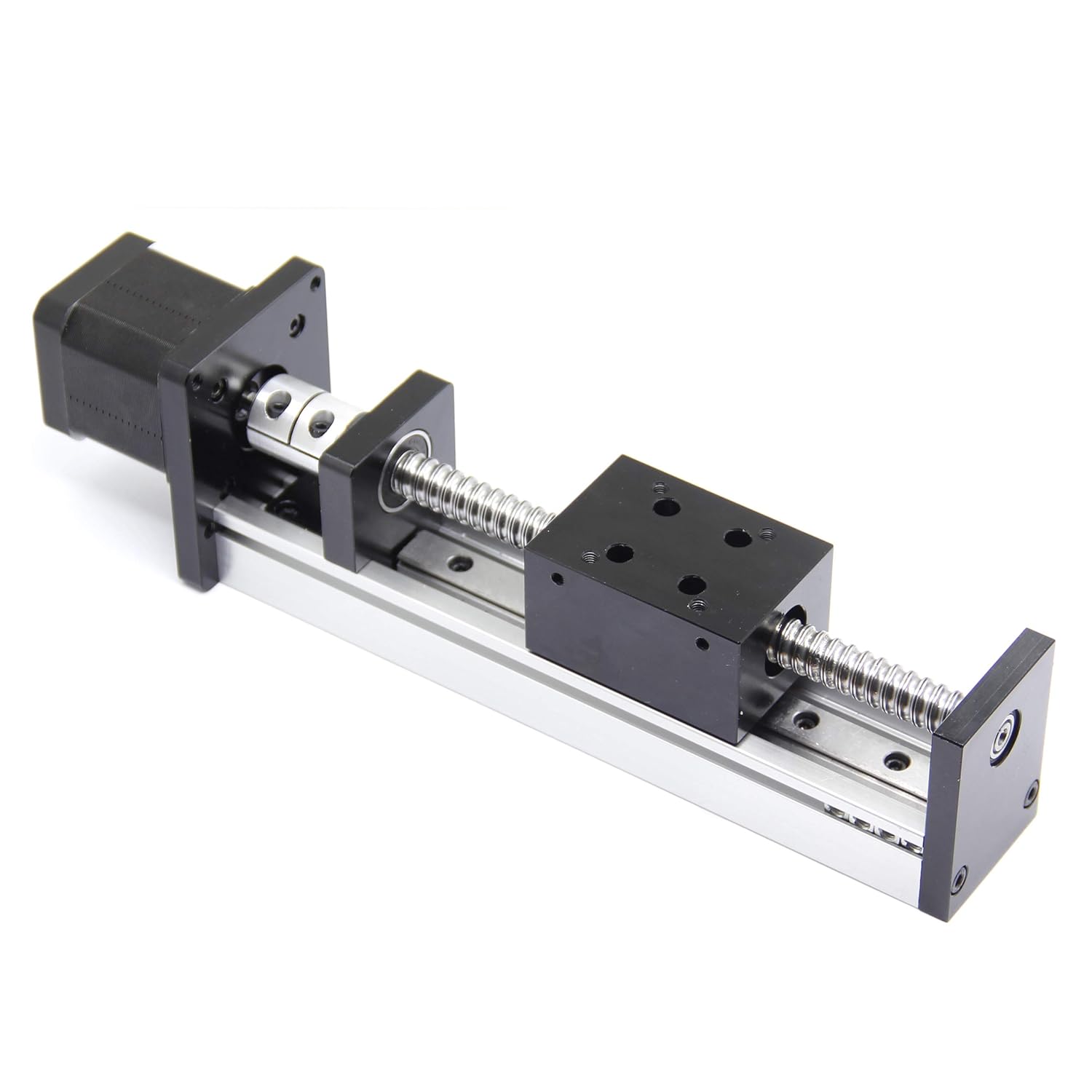

100mm Length Travel Linear Stage Actuator with Square Linear Rails Ballscrew SFU1204 with NEMA17 Stepper Motor for DIY CNC Router Parts X Y Z Axis
Product details
| Management number | 219314966 | Release Date | 2026/05/03 | List Price | $29.52 | Model Number | 219314966 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Stepper motor Parameter: Step angle: 1.8 degree Motor flange size: 42mm Motor length: 47mm Holding torque: 1.2N.m Current: 1.5A Resistance: 0.8 ohm Inductance: 2.4 mH Rotor Inertia: 87.3g.cm Lead wire: 4pcs Wiring: Black: A+ Green: A- Blue: B+ Red: B- Linear Stage Actuator Parameter: Effective Travel Length: 100mm Total length :265mm Type: linear system moulde Ballscrew type: SFU1204 (diameter:12mm, pitch of screw:4mm) Level ballscrew: c7 Weight: 1302g Package Content: 1pcs Linear Stage Actuator with NEMA17 Stepper Motor 1pcs stepper motor cable
- High precision, heavy load resistance SFU1204, Horizontal maximum load capacity: 30kg; Vertical maximum load capacity: 15kg
- Repeat positioning accuracy of ± 0.03mm
- Speed: 0-100mm/s
- 4 pcs M4 threaded hole to fix the workpiece
- Effective stroke:100mm, Lead:4mm ( The lead screw moves 4mm in one turn)
| Item Weight | 3.06 pounds |
|---|---|
| Manufacturer | Befenybay |
| Item model number | BE090-1 |
| Package Dimensions | 11.22 x 3.66 x 2.56 inches |
