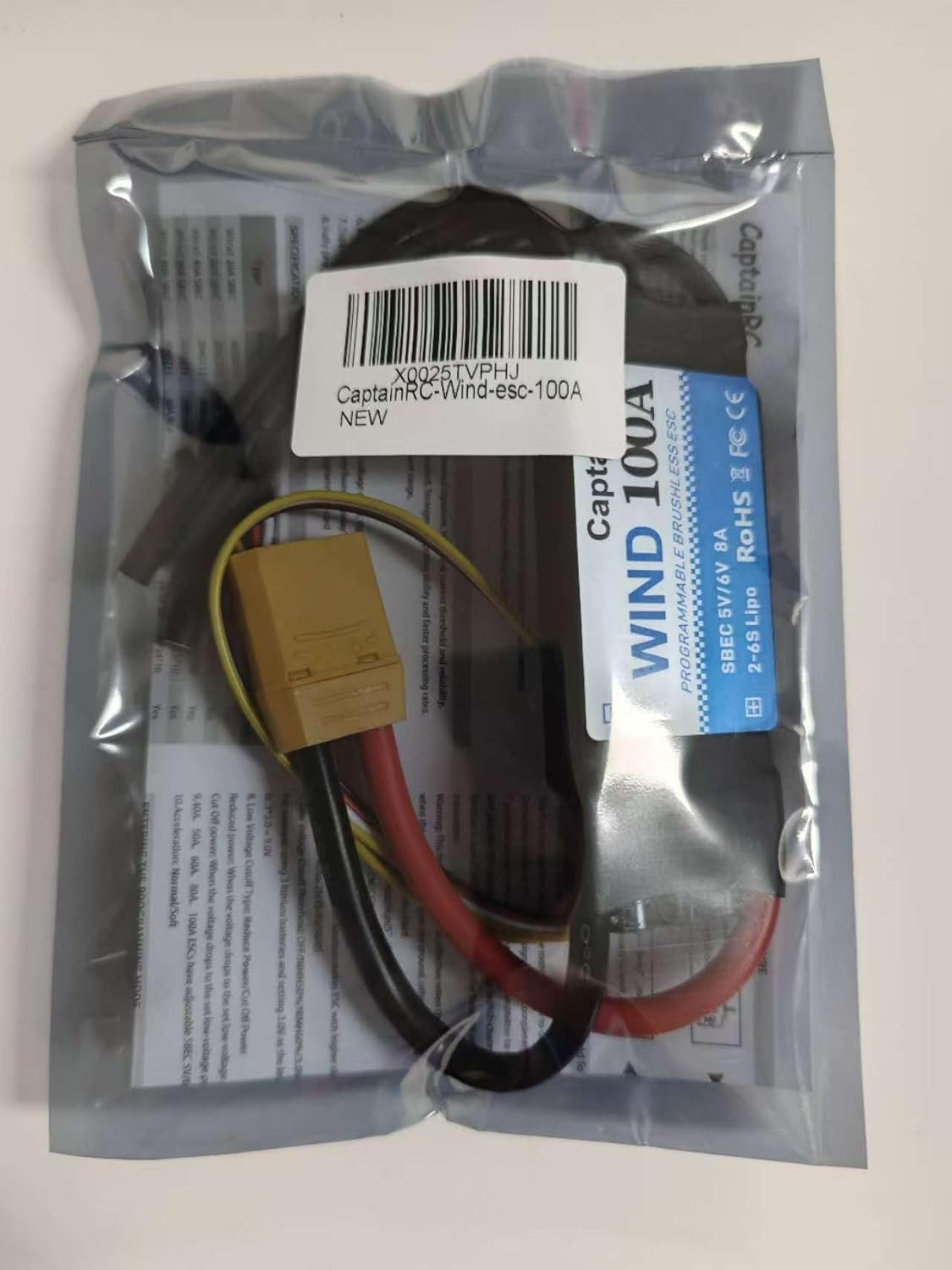

100A ESC with 5V 6V/8A BEC 2-6S Electric Speed Controller with XT90 & 4.0mm Bullet Plugs for Fixed Wing Airplane/RC Drone Airplane/Brushless Motors
Product details
| Management number | 216428469 | Release Date | 2026/04/19 | List Price | $17.20 | Model Number | 216428469 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

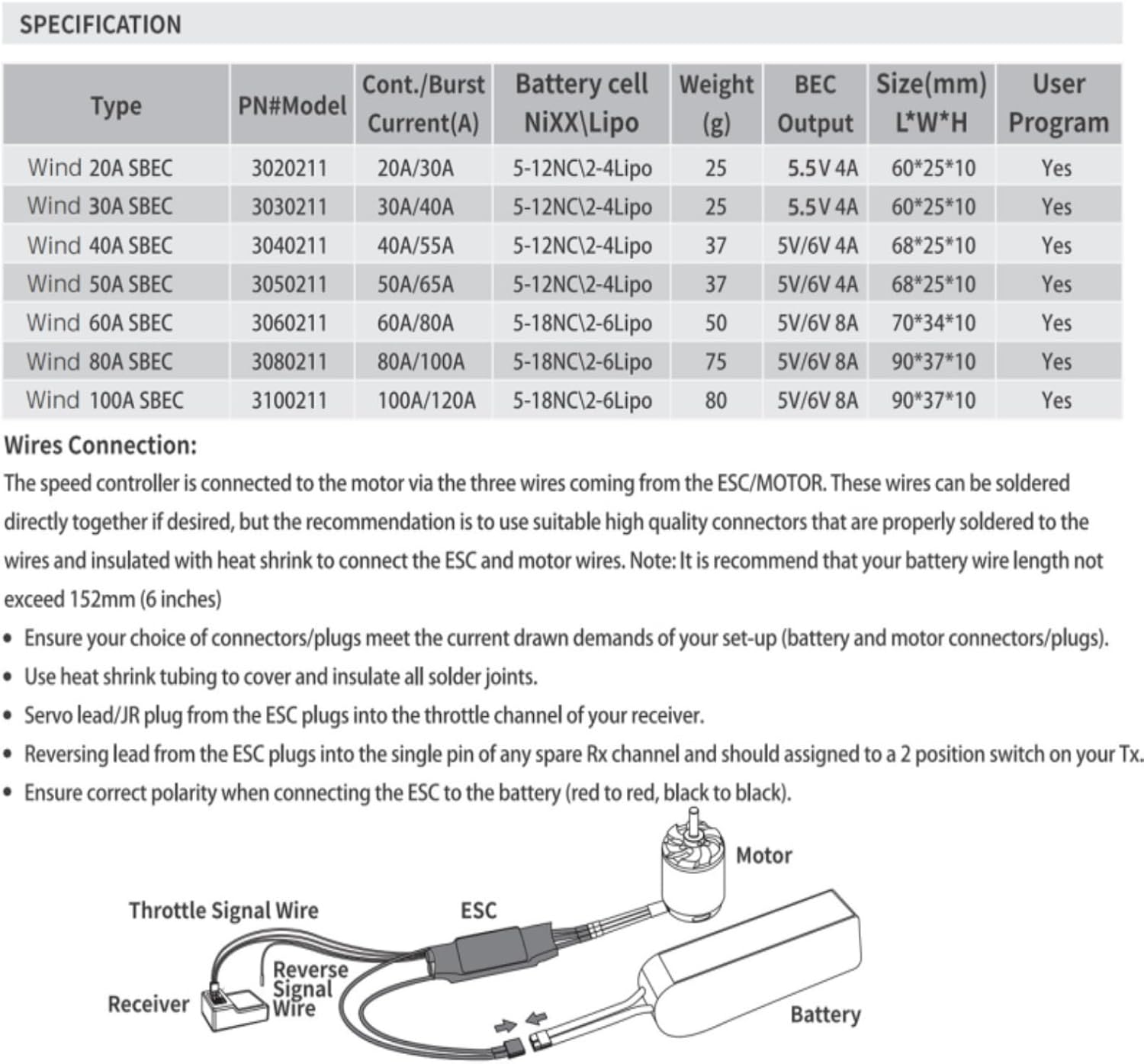

The captainrc wind series 100A Electronic Speed Controller (ESC) is a powerful little ESC that runs great and doesn't get hot like other ESCs! This ESC comes pre-installed with 4.0mm bullet plugs and XT90 plugs so you don't have to solder the plugs yourself! SPECIFICATIONS Max/Peak Current: 100A/120A Battery:2-6Lipo BEC Output: 5V 6V/8A Dimensions (L*W*H): 3.54*1.46*0.39 inches Weight: 0.176 lbs Motor Type: Brushless Motor
- Adopting new generation MOSFET process, low heat generation, can withstand high current instantly, high reliability; high performance 32-bit microprocessor, stronger computing power, faster operation speed.
- Multiple protection functions: abnormal start protection, overheating protection, throttle signal loss protection, low voltage cut-off protection, etc.
- It is very smooth when starting, and the throttle linearity is very precise. Unidirectional clutch makes the ESC drive more efficient and energy saving.
- Adjustable SBEC 5V/6V, output voltage 5V/6V can provide more powerful power. (Adjustable SBEC voltage for 40A/50A/60A/80A/100A)
- Users can set the function according to the need,judge the working status by alarm,support high speed motor,can be programmed by programming card.
| Size | 100A /BEC 8A |
|---|---|
| Color | Black |
| Theme | Sport |
| Set Name | WIND |
| Brand Name | captainrc |
| Model Name | 3020211 |
| Unit Count | 1.0 Count |
| Manufacturer | captainrc |
| Model Number | WIND |
| Power Source | Battery Powered |
| Material Type | Plastic |
| Operation Mode | Remote Control |
| Item Dimensions | 5 x 4 x 2 inches |
| Number of Items | 1 |
| Toy Vehicle Form | Airplane |
| Additional Features | Adjustable |
| Battery Description | Lithium-Ion Polymer |
| Included Components | esc |
| Is Assembly Required | No |
| Age Range Description | Adult |
| Are Batteries Required | No |
| Batteries are Included | No |
| Manufacturer Part Number | CAP-WIND |
| Manufacturer Maximum Age MONTHS | 720 |
| Manufacturer Minimum Age MONTHS | 180 |
